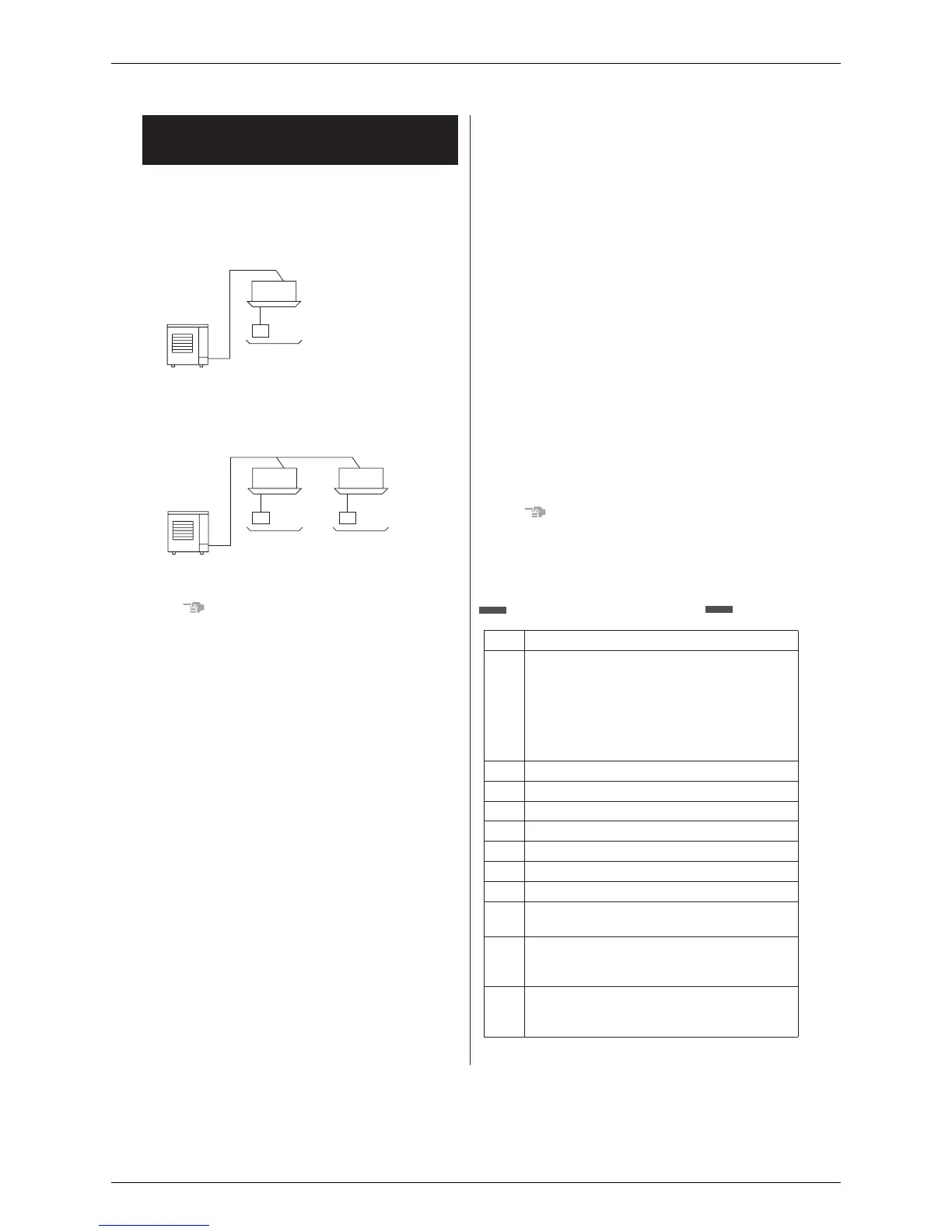

1. WHAT TO DO BEFORE
OPERATION
This operation manual is for the following systems
with standard control. Before initiating operation,
contact your Daikin dealer for the operation that
corresponds to your system.
• Pair system
• Multi system
Indoor unit
Unit with
remote
controller
Indoor unit Indoor unit
Unit with
remote
controller
Unit with
remote
controller
Outdoor unit
Outdoor unit
NOTE
• If the unit you purchased is controlled by a
infrared remote controller, also refer to the
infrared remote controller
’s operation manual.
If your installation has a customized control
system, ask your Daikin dealer for operation that
corresponds to your system.
• Heat pump type
Thissystem provides cooling, heating, automatic,
program dry, and fan operation modes.
• Cooling only type
Thissystem provides cooling, program dry, and
fan operation modes.
PRECAUTIONS FOR GROUP CONTROL
SYSTEM OR TWO REMOTE CONTROL
CONTROL SYSTEM
Thissystem provides two other control systems
beside individual control (one remote controller
controls one indoor unit) system. Confirm the
following if your unit is of the following control
system type.
• Group control system
One remote controller controlsup to 16 indoor
units.
All indoor unitsare equally set.
• Two remote controllers control system
Two remote controllers control one indoor unit
(In case of group control system, one group of
indoor units)
The unit is individually operated.
NOTE
• Contact your Daikin dealer in case of changing
the combination or setting of group control and
two remote controllers control system.
Names and functions of parts
Refer to figure 2 on page [1]
Indoor unit
Outdoor unit
• The external appearance of the outdoor
unit varies depending on its capacity
class. The outdoor unit shown in the
figure is for reference to indicate
features.Contact your Daikin Dealer and
verify which outdoor unit you have.
Remote controller
Inlet air
Discharged air
Air outlet
Air flow flap (at air outlet)
Refrigerant piping, connection electric wire
Dra
in pipe
Air inlet
The built-in air filter removes dust and dirt.
Drain pumping out device (built-in)
Drains water removed from the room
during cooling.
Ground wire
Wire to ground from the outdoor unit to
prevent electrical shocks.
a
b
c
d
e
f
g
h
i
j
k
l
