SiEBE18-526 Printed Circuit Board Connector Wiring Diagram
Printed Circuit Board Connector Wiring Diagram and Name 23

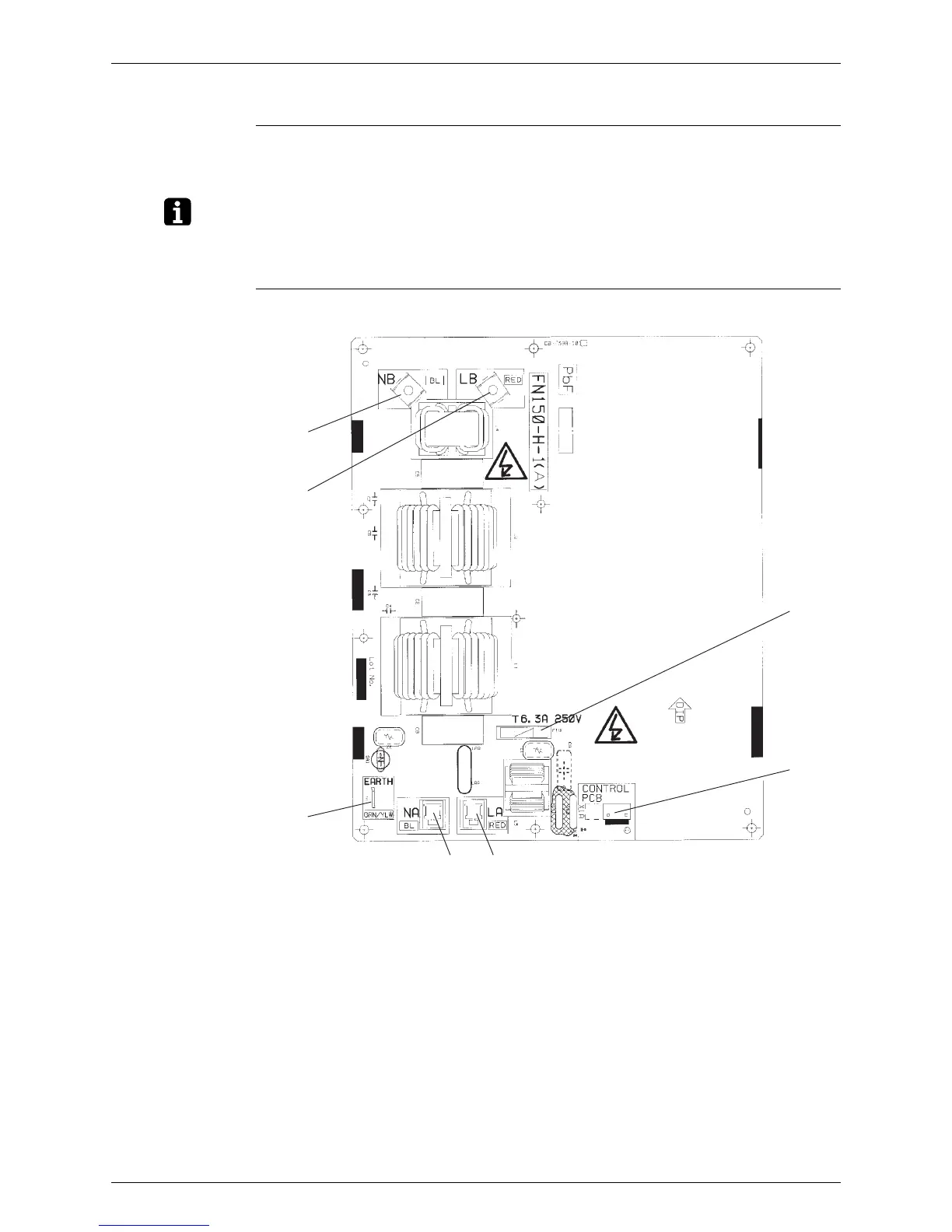

1.1.3 Filter PCB (A3P)
Connectors 1) X1A Connector for Control PCB (A1P)
2) LA, NA Terminal for X1M (Power Supply Terminal Strip)
3) LB, NB Terminal for Inverter PCB (A2P)
Note: Other Designation
1) F1U Fuse (250V 6.3A)
2) GND Earth Terminal
PCB Detail
NB
LB
GND
NA LA
X1A
F1U
2P135804A
