Daikin Super Multi Plus D-Series

To Next Page

To Previous Page

SiEBE18-526 Outdoor Unit

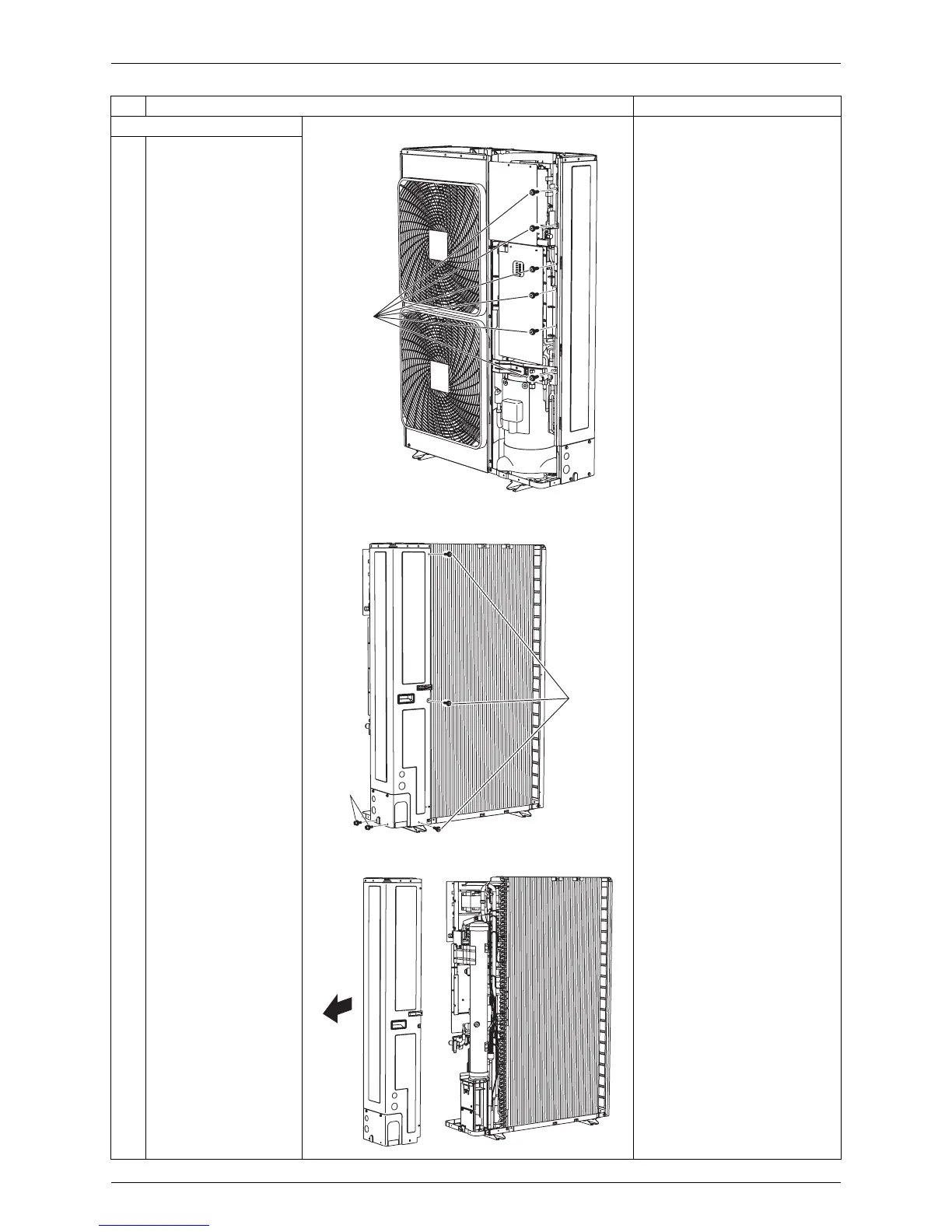

Removal Procedure 335

6. Right side panel

Remove the six screws

off the panel's front.

Remove the three

screws off the panel's

back and the two

screws off the panel's

side.

Remove the right side

panel.

Step

Procedure Points

Screws

(Q0457)

Screws

(Q0458)

(Q0459)
