SiEBE18-526 Outdoor Unit

Removal Procedure 343

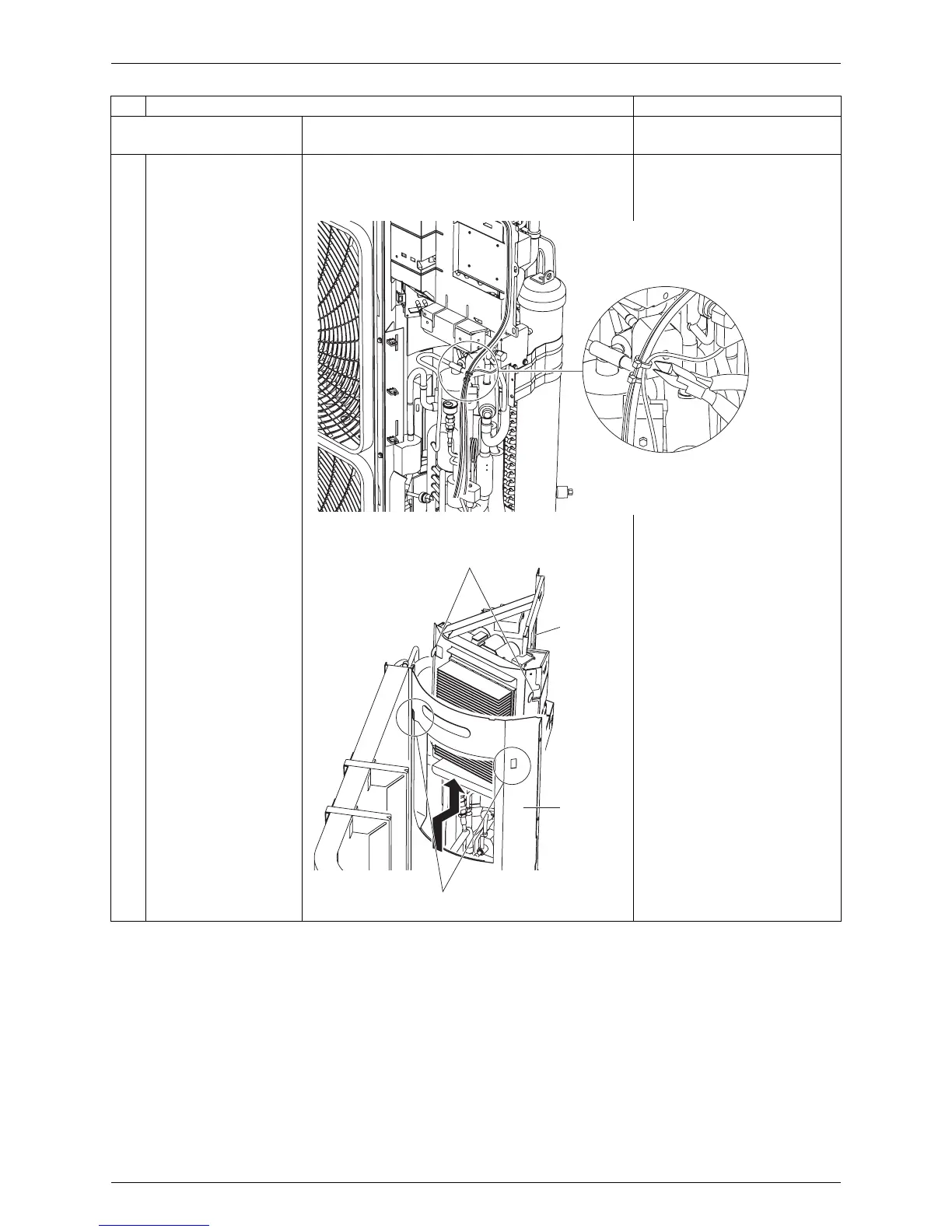

4. Removing the electrical

assembly

1

Remove the TYRAP

fixture.

Cut off with nippers.

The TYRAP fixture is to be kept

in stock.

2

Lift the electrical

assembly to unhook it.

Step

Procedure Points

(Q0479)

Hooks

Hook holes

Partition plate

(Q0480)

Electrical

assembly
