SiEBE18-526 Refrigerant Circuit

Refrigerant Circuit 45

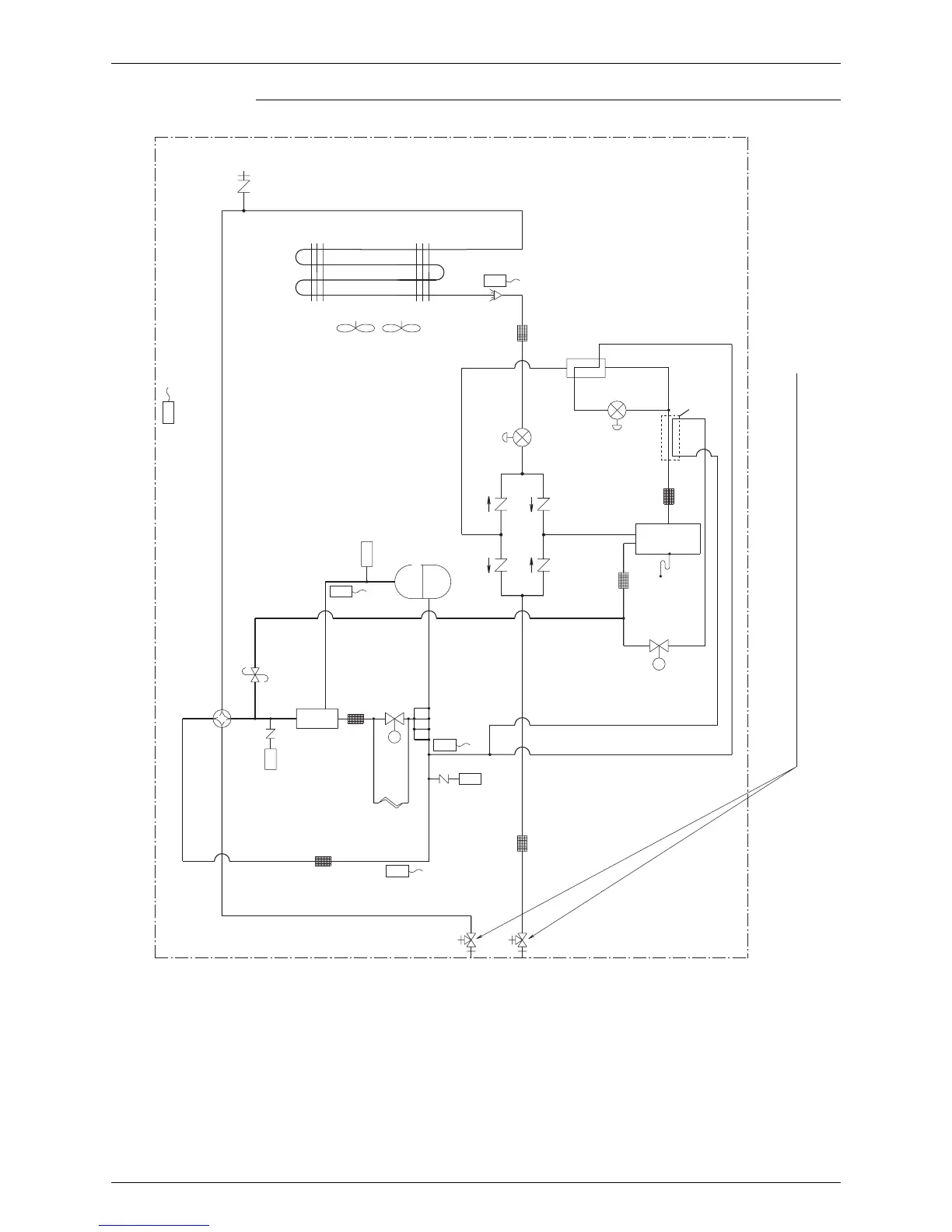

Refrigerant Circuit Diagram

Filter

Stop valve (With service port on field piping side

6.4mm flare connection)

Filter

Compressor

Filter

HPS

Receiver

Filter

Heat exchanger

Service port



























(Q0371)

High pressure

sensor

Four way

valve

Pressure

regulating valve

Oil

separator

Solenoid

valve

Capillary

tube

Low pressure

sensor

Solenoid

valve

Check

valve

Check

valve

Heat

exchanger

pipe

Check

valve

Check

valve

Electronic

expansion valve

Electronic

expansion valve

Double pipe

heat exchanger

High pressure

switch
