117 of 132
M-SV-001-EN Rev.E

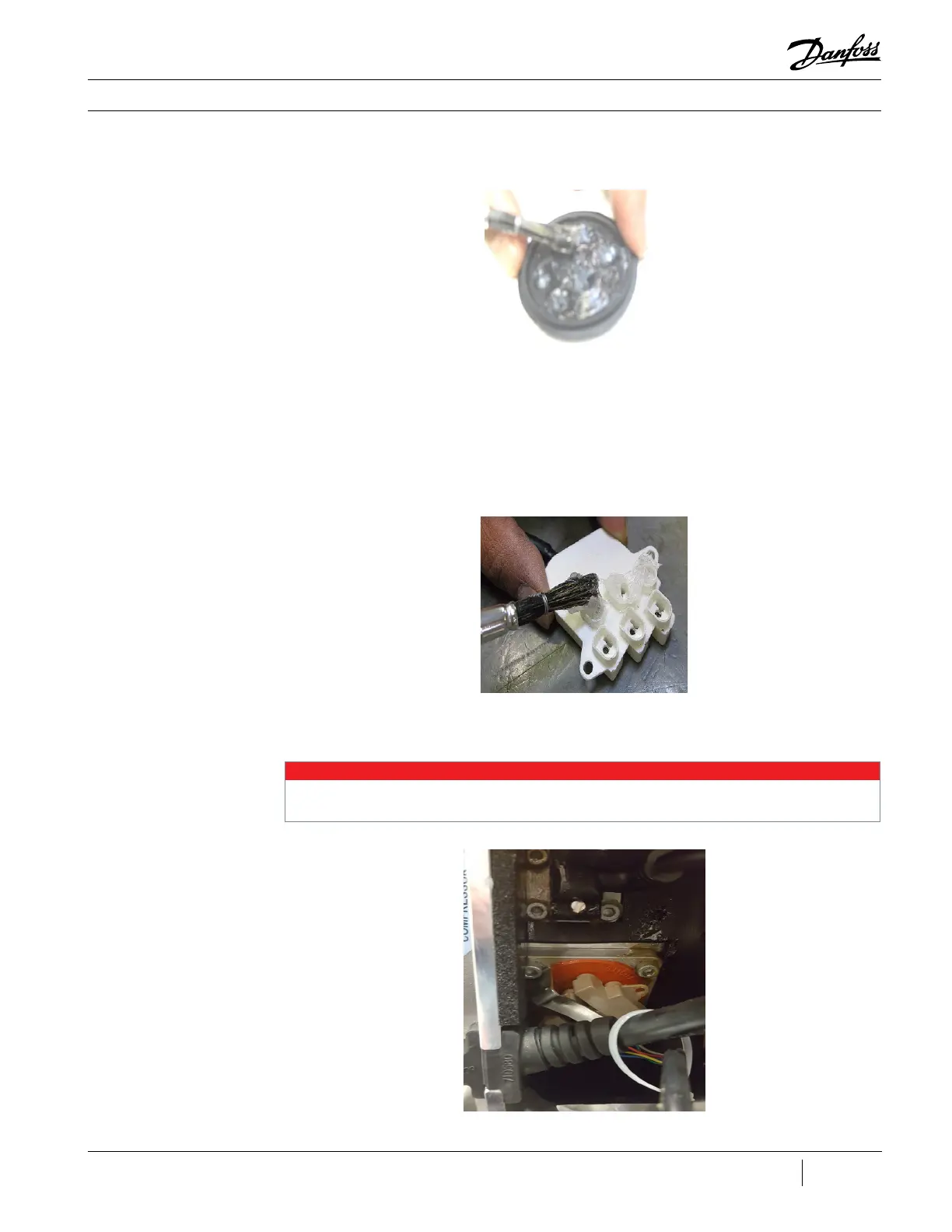

17. Apply thin coating of dielectric grease to
the underside of bearing power feed through
gaskets. See Figure 102 (Dielectric Grease Under
Gasket).
Figure 102 - Dielectric
Grease Under Gasket
18. Install the greased neoprene gaskets over the
feed through pins.
19. Clean off excess grease.
20. Using a lint-free rag, carefully wipe off any
dielectric grease from the exposed power feed
through pins.
21. Apply a thin coating of dielectric grease to
the PWM harness connectors (female) as shown
in Figure 103 (PWM Connectors) and clean off
any excess grease.
Figure 103 - PWM
Connectors
22. Apply dielectric grease to all of the feed
through 4-pin and 6-pin screws.
Figure 104 - Dielectric
Grease on Screws
Maintenance
NOTE
This process is not used for Major Revision “F” and later compressors with Molex connectors as shown in Figure 76 (Bearing PWM
Amplifier)
