Introduction
1. Isolate the compressor power. 2. Clip the ESD strap ground clip to the
compressor ground post. See white arrow in
Figure 5 (Mains Plate and Ground Post).
3. If you need to remove the Soft Start Board,
clip the ESD strap ground clip to the mains
plate. Refer to arrow in Figure 5 (Mains Plate and
Ground Post).
4. If you only need to remove the Service Side
Cover, clip the ESD strap ground to the cover
screw hole that is part of the compressor
housing. Refer to arrows in Figure 6 (Compressor
Grounding Points).

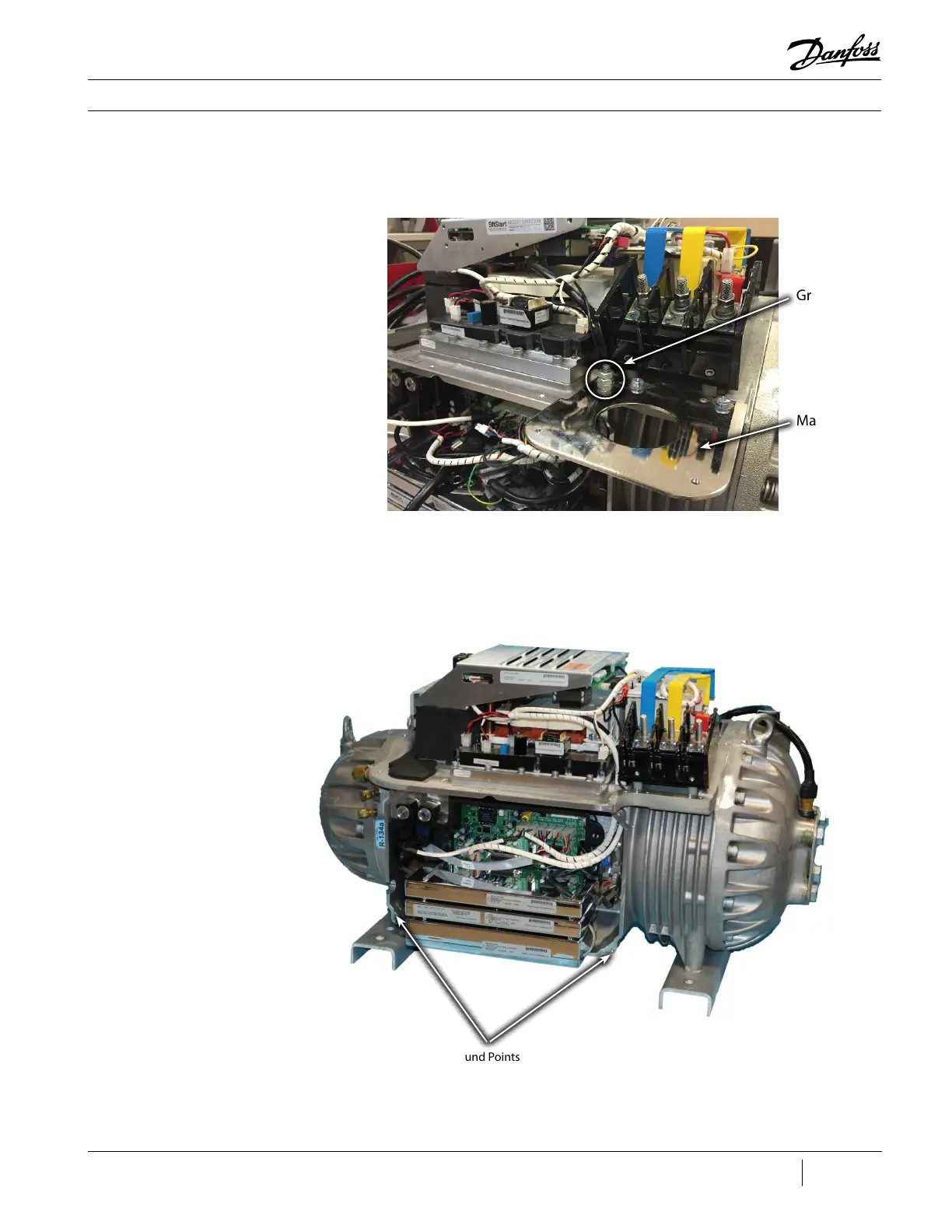

Figure 5 - Mains Plate and
Ground Post
Figure 6 - Compressor
Grounding Points
Ground Points
Ground Post
Mains Plate
