20 of 132
M-SV-001-EN Rev.E
Introduction
7. Connect the two plugs of the DC bus test
harness into the Soft Start Board. See Figure 11
(Connect Test Harness to Compressor).
8. Route the cables through the cable passage on
either side of the HV DC-DC Converter, down into
the service side. See Figure 12 (Cable Passage).

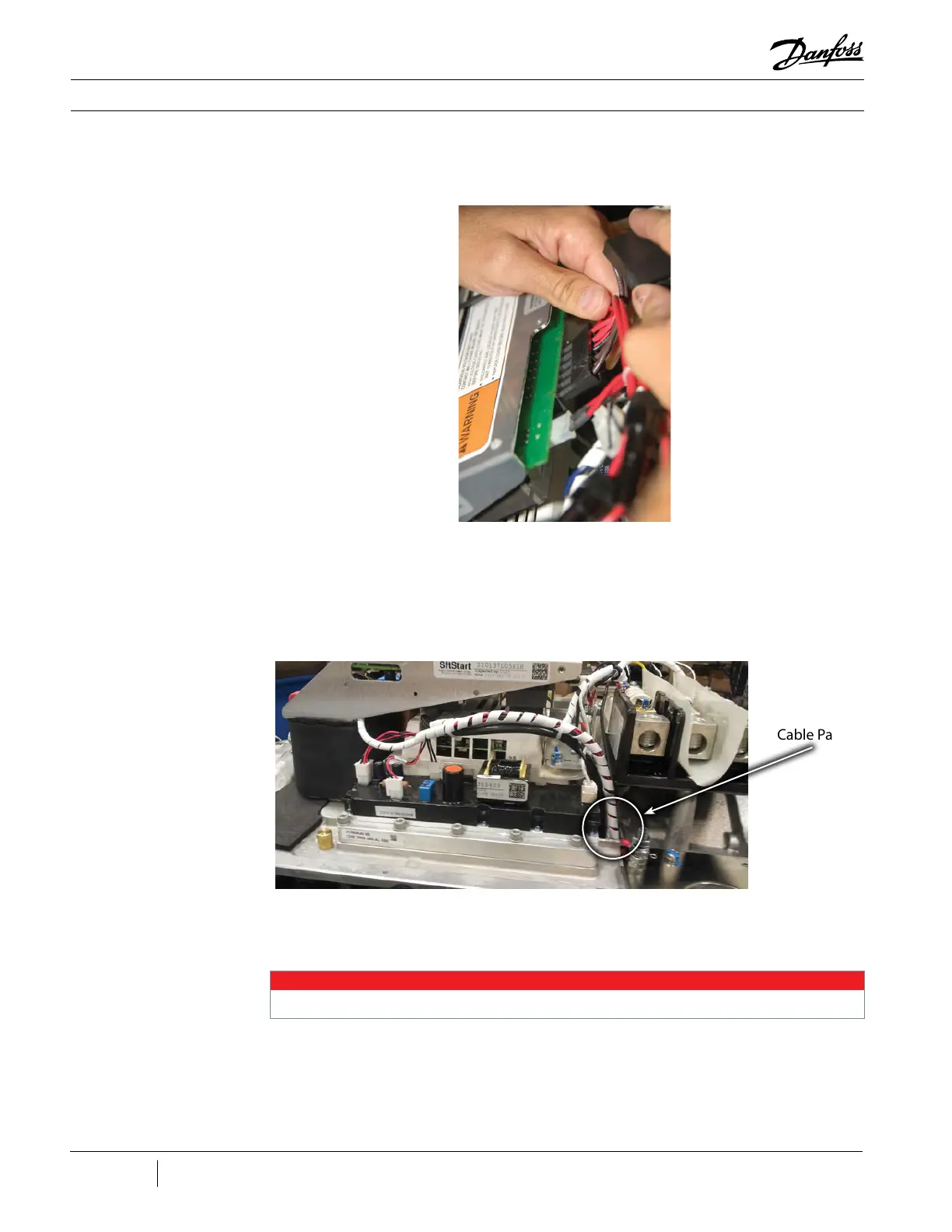

Figure 11 - Connect Test
Harness to Compressor
Figure 12 - Cable Passage
• • • DANGER • • •
The DC bus test harness is not designed to be left in the compressor during normal operation. When checks are complete,
disconnect and remove the test harness.
9. Reinstall the Mains Input Cover and Top
Cover.
Cable Passage
To Next Page
