Danfoss Turbocor TT300

33 of 132
M-SV-001-EN Rev.E

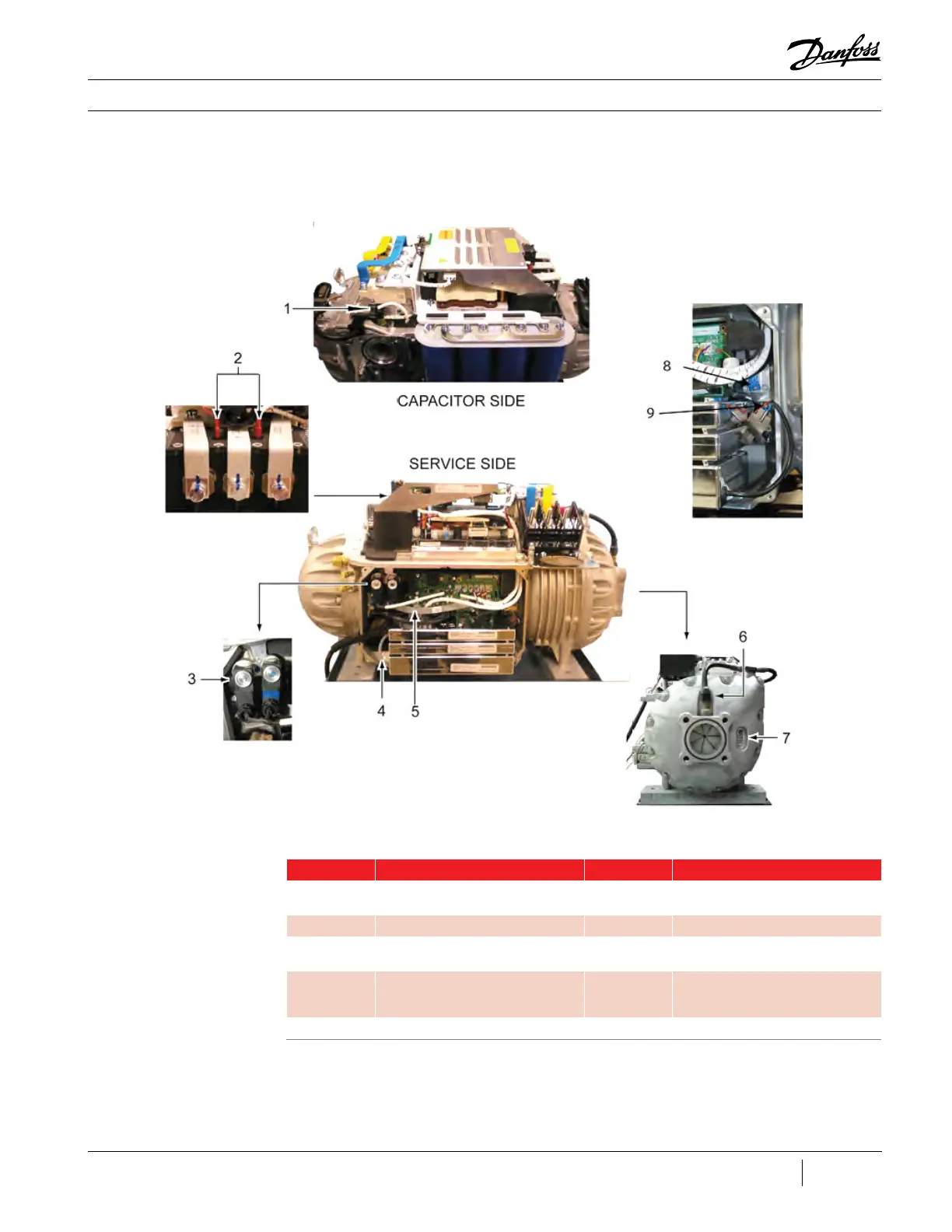

Figure 23 - Compressor Sensors,
Cables, and Indicators (TT350/TT400/
TT500/TT700/TG310/TG390/TG520)
Compressor Components
Table 8 - Compressor
Sensors, Cables, and
Indicators (TT350/TT400/
TT500/TT700/TG310/TG390/
TG520)
No. Component No. Component
1
Discharge Temperature / Pressure
Sensor
5 Bearing Sensor Ring Cable
2 Motor-Winding Sensors 6 Suction Temperature/Pressure Sensor
3 Motor-Cooling Solenoids 7
Inlet Guide Vanes (IGV) Position
Indicator
4
Bearing Pulse Width Modulation
(PWM) Amplifier Current
Output
8 Bearing Sensor Ring Cable (Front)
9 PWM Current Output (Front Bearing)
