Introduction
1.9 DC Bus Test Harness
Installation and Removal
A DC bus test harness must be used when
testing the voltages of the compressor’s power
electronics. The DC bus test harness is not
designed to be left in the compressor during
normal operation. When checks are complete,
disconnect and remove the test harness. Refer to
Figure 8 (DC Bus Harness Connection Diagram)
for a connection diagram.

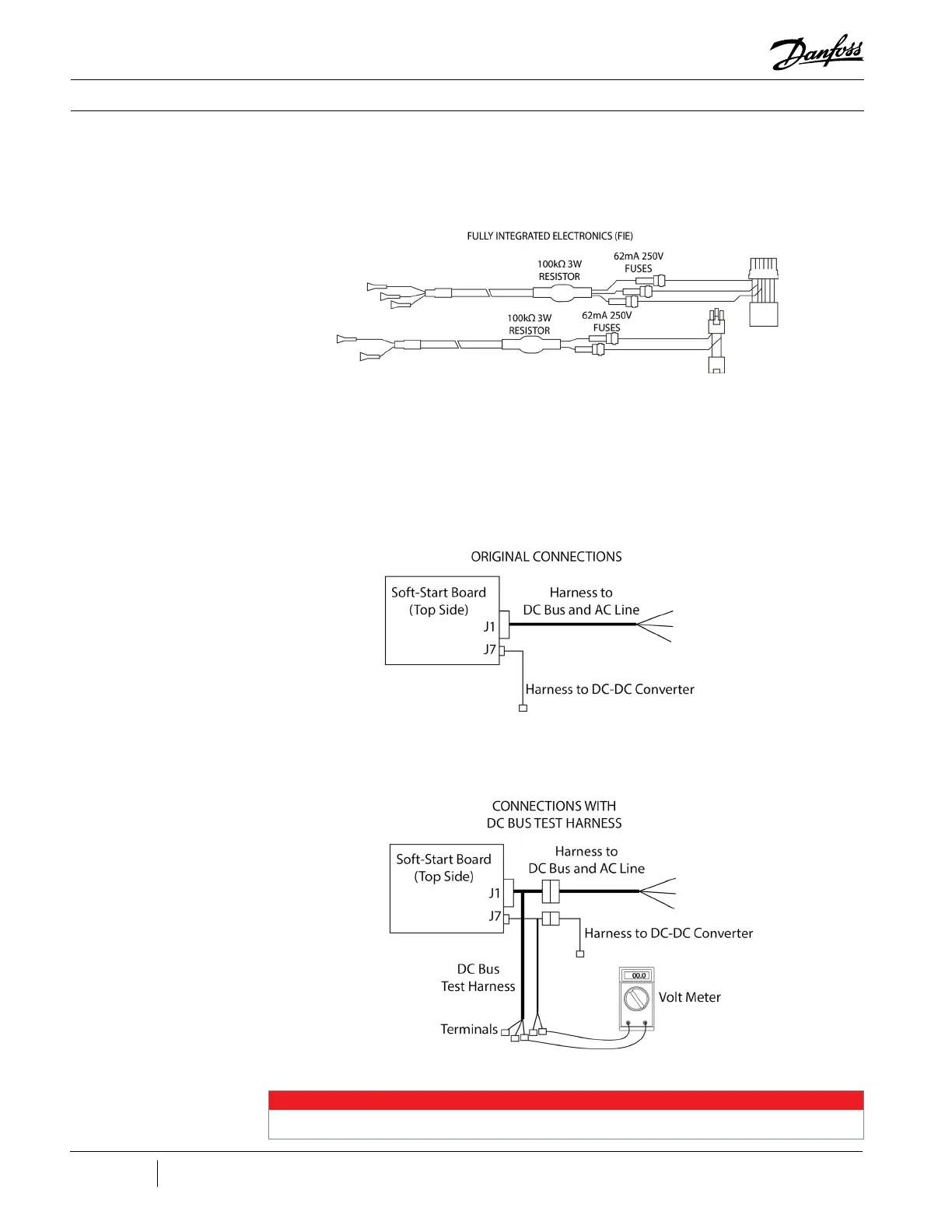

Figure 7 - DC Bus Test
Harness Diagram
Figure 8 - DC Bus Harness
Connection Diagram
• • • DANGER • • •
Before using the DC bus test harness, integrity of the fuses/resistors in the harness and cable must be checked.
