Compressor Components

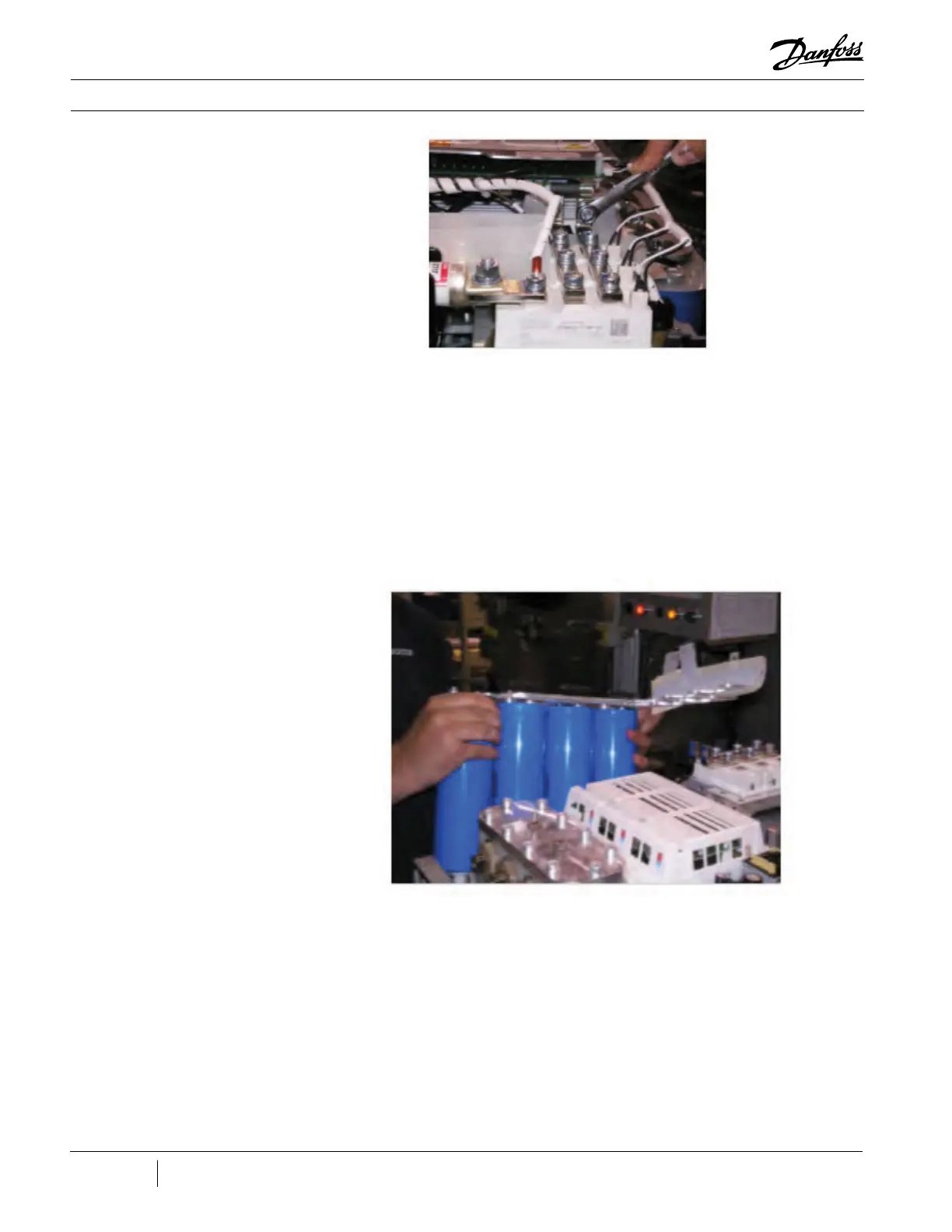

Figure 40 - Removing
Attaching Hardware from
DC Bus Bars (TT300/TG230
Pictured)
Figure 41 - Removing DC
Capacitor Assembly (TT300/
TG230)
4. Using needle-nose pliers, carefully remove the
SCR gate cable harness (TT350, TT400, TT500, and
TT700 only).
5. Remove main AC bus bars (TG310, TG390,
TG520, TT350, TT400, TT500, and TT700 only).
6. Remove the screws that secure the DC bus bars
to the SCRs (TG310, TG390, TG520, TT350, TT400,
TT500, and TT700 only).
7. Remove the snubber capacitors.
8. Remove the nylon nuts at the base of the DC
Capacitor Assembly, located under the main
compressor housing.
9. Lift out the DC capacitors and DC bus as an
assembly. See Figure 41 (Removing DC Capacitor
Assembly).
