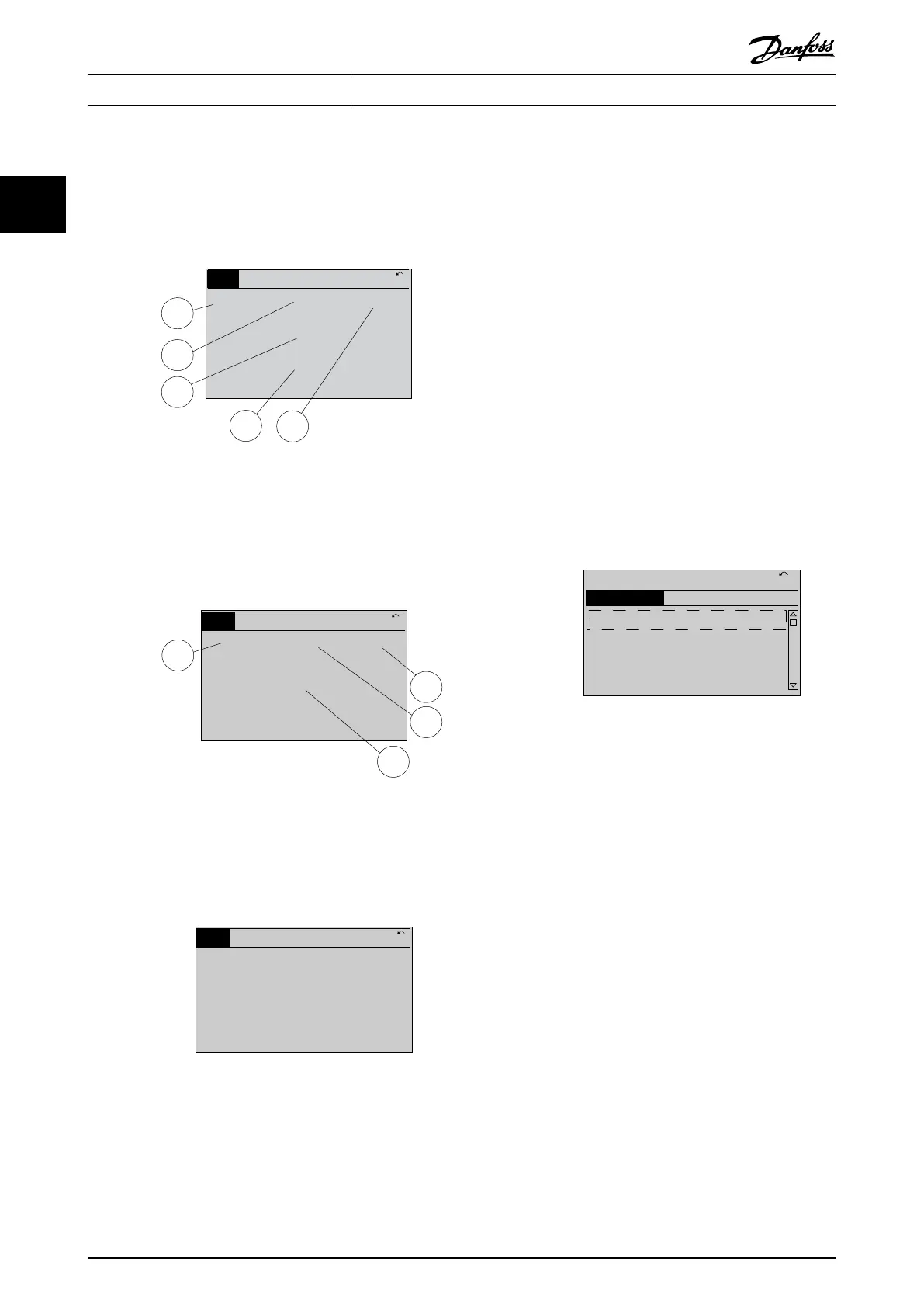

Danfoss VLT AQUA Drive FC 202 Programming Guide

Status screen I
This readout state is standard after start-up or initialization.
Press [Info] to obtain information about the measurement
links to the shown operating variables (1.1, 1.2, 1.3, 2 and
3).
See the operating variables shown in Illustration 2.11.
1.1
2
3
1.3
1.2
130BP041.10
799 RPM
Auto Remote Ramping
1 (1)
36.4 kw7.83 A
0.000
53.2 %
Status
Illustration 2.11 Status Screen I
Status screen II
See the operating variables (1.1, 1.2, 1.3, and 2) shown in
Illustration 2.12.
In the example, speed, motor current, motor power, and
frequency are selected as variables in the
rst 2 lines.
1.1
1.2
2
1.3
130BP062.10
207RPM
Auto Remote Running
1 (1)
24.4 kW5.25A
6.9
Hz
Status
Illustration 2.12 Status Screen II
Status screen III
This state shows the event and action of the smart logic
control. For more information, see parameter group 13-**
Smart Logic.
130BP063.10
778 RPM
Auto Remote Running
1 (1)
4.0 kW0.86 A
State: 0 o 0 (o)
When: -
Do: -
Status
Illustration 2.13 Status Screen III
2.2.5 Parameter Set-up
The frequency converter can be used for practically all
assignments and oers 2 programming mode options:
•
Main menu mode.
•
Quick menu mode.
Main menu provides access to all parameters. Quick menu
takes the user through a few parameters, making it
possible to start operating the frequency converter.
Change a parameter in either main menu mode or quick
menu mode.
2.2.6 Quick Menu Key Functions
Press [Quick Menu] to enter a list of dierent areas
contained in the Quick Menu.
Select Q1 My Personal Menu to show the selected personal
parameters. These parameters are selected in
parameter 0-25 My Personal Menu. Up to 50 dierent
parameters can be added in this menu.
130BC916.10
Q1 My Personal Menu
Q2 Quick Setup
Q4 Smart Setup
Q5 Changes Made
0RPM 0.00A 1(1)
Quick Menus
Illustration 2.14 Quick Menus
Select Q2 Quick Setup to go through a selection of
parameters to get the motor running almost optimally. The
default settings for the other parameters consider the
required control functions and the conguration of signal
inputs/outputs (control terminals).
The parameter selection is eected with the navigation
keys. The parameters in Table 2.1 are accessible.
How to Program
VLT
®
AQUA Drive FC 202
18 Danfoss A/S © 05/2018 All rights reserved. MG20OB02
