4.2.3 External RFI Filter
External filters to fulfill A1 50 m/B1 20 m.
Power (hp [kW])
Size 380–480 V
Type A B C D E F G H I J K L1 Torque [Nm] Weight [kg] Ordering Number
0.5–3 [0.37–2.2] FN3258-7-45 190 40 70 160 180 20 4.5 1 10.6 M5 20 31 0.7-0.8 0.5 132B0244
4–10 [3–7.5] FN3258-16-45 250 45 70 220 235 25 4.5 1 10.6 M5 22.5 31 0.7-0.8 0.8 132B0245
15–20 [11–15] FN3258-30-47 270 50 85 240 255 30 5.4 1 10.6 M5 25 40 1.9-2.2 1.2 132B0246
25–30 [18.5–22] FN3258-42-47 310 50 85 280 295 30 5.4 1 10.6 M5 25 40 1.9-2.2 1.4 132B0247
Table 4.7 RFI Filters - Details
H
B
K
C
A
D
J
G
E
F
l
1
L
1
130BC247.10

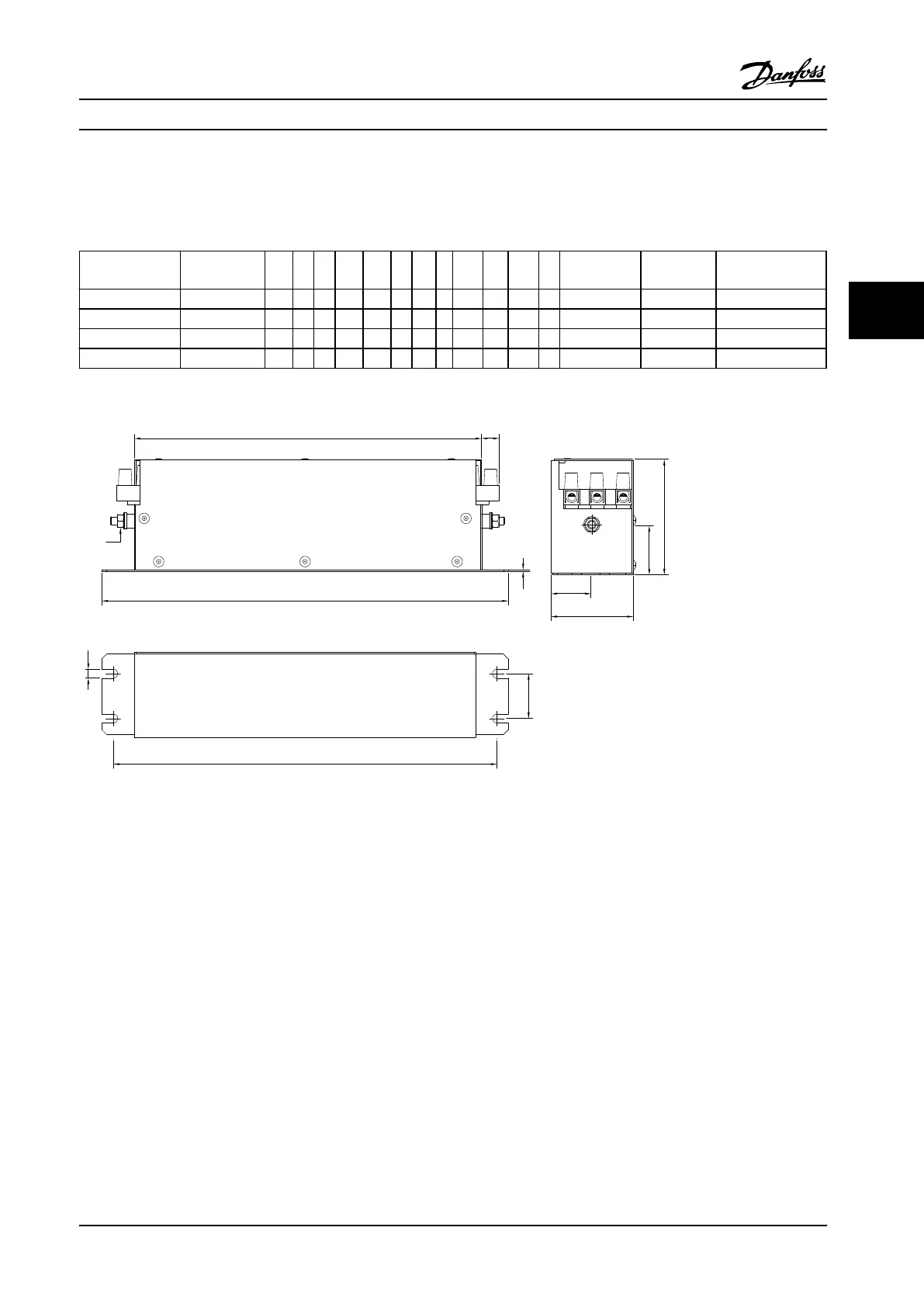

Figure 4.2 RFI Filter
How to Order Design Guide
MG18C522 Danfoss A/S © Rev. 2014-01-14 All rights reserved. 53
4 4
