Danfoss VLT HVAC Basic Drive FC 101 Design Guide

A
a
b
B
C
 D
130BB614.10
e
f
a
d
e
130BC205.10
e
f
a
e
130BC246.10
Enclosure Power (hp [kW]) Height (in [mm]) Width
(in [mm])
Depth
(in
[mm])
Mounting hole
(in [mm])
Max.
Weight
Frame IP
Class
3x
200–240 V
3x
380–480 V
3x
525–600 V
A
A
1
a B b C d e f lb [kg]
I2 IP54 1– 5
[0.75–4.0]
13.07
[332]
- 12.54
[318.5]
4.53
[115]
2.91
[74]
8.86
[225]
0.43
[11]
0.22
[5.5]
0.35
[9]
11.69
[5.3]
I3 IP54 7.5–10
[5.5–7.5]
14.49
[368]
- 13.94
[354]
5.32
[135]
3.50
[89]
9.33
[237]
0.47
[12]
0.26
[6.5]
0.37
[9.5]
15.87
[7.2]
I4 IP54 15–25
[11–18.5]
18.74
[476]
- 18.11
[460]
7.1
[180]
5.24
[133]
11.42
[290]
0.47
[12]
0.26
[6.5]
0.37
[9.5]
30.42
[13.8]
I6 IP54 30–50
[22–37]
25.59
[650]
- 24.57
[624]
9.53
[242]
8.27
[210]
10.24
[260]
0.75
[19]
0.35
[9]
0.35
[9]
59.53
[27]
I7 IP54 60–75
[45–55]
26.77
[680]
- 25.51
[648]
12.13
[308]
10.71
[272]
12.21
[310]
0.75
[19]
0.35
[9]
0.39
[9.8]
99.21
[45]
I8 IP54 100–125
[75–90]
30.32
[770]
- 29.1
[739]
15.57
[370]
13.15
[334]
13.19
[335]
19 9 0.39
[9.8]
2.56
[65]

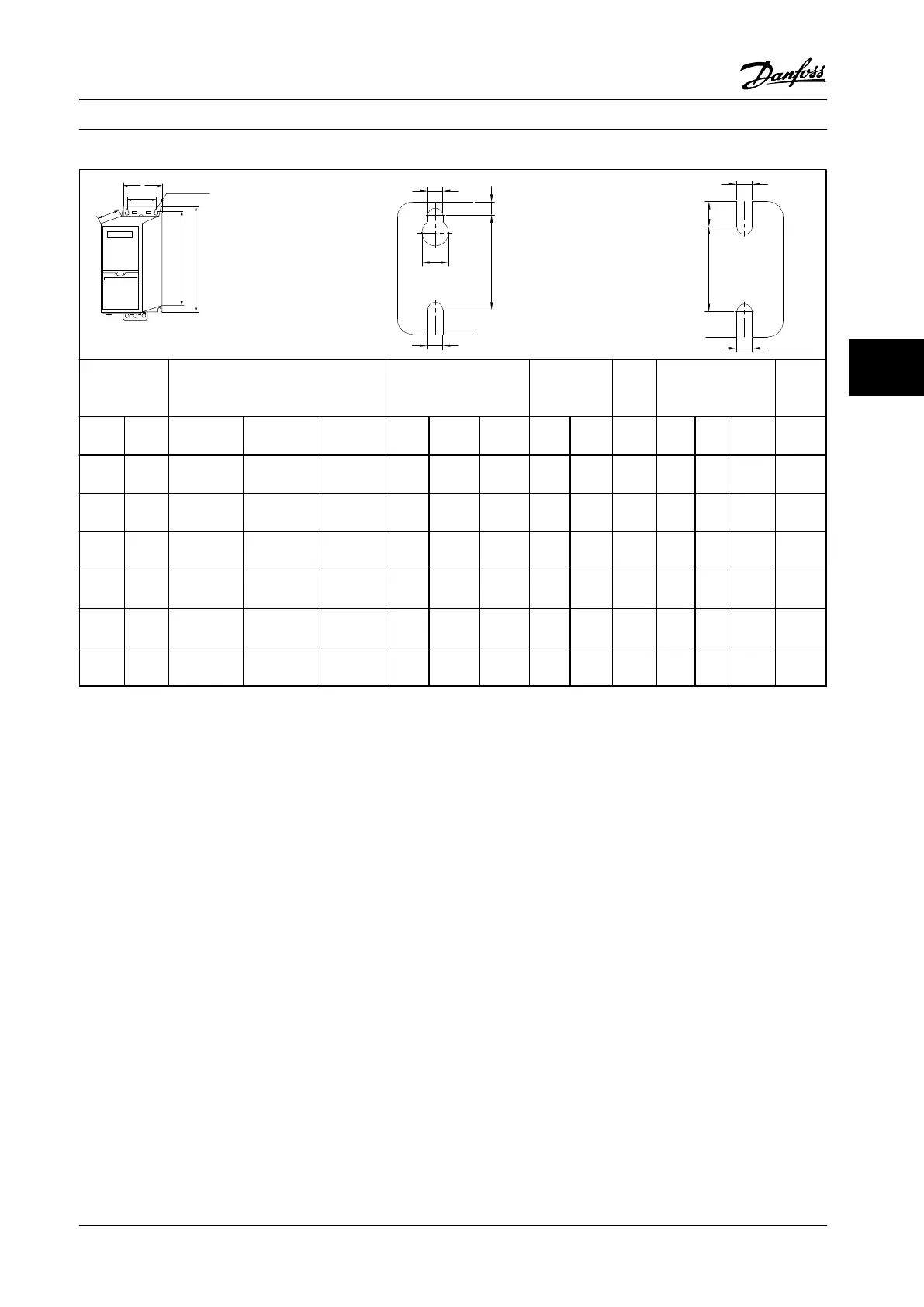

Table 5.1 Dimensions
1
Including decoupling plate
How to Install Design Guide
MG18C522 Danfoss A/S © Rev. 2014-01-14 All rights reserved. 55
5 5
