Danfoss VLT HVAC Basic Drive FC 101

130BC203.10

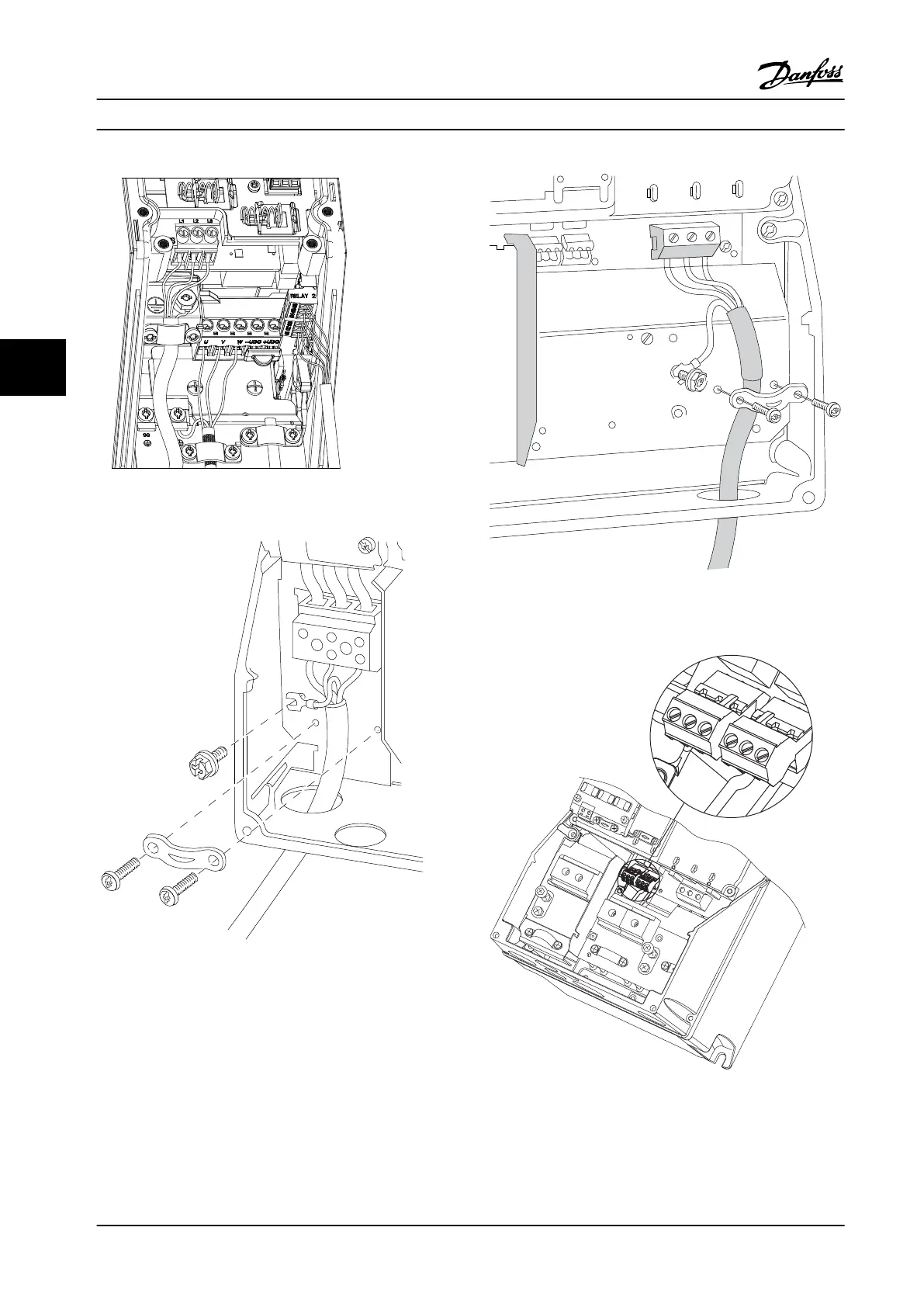

Figure 5.15 IP54 I2-I3-I4 frame
130BT326.10
Figure 5.16 I6 Frame
IP54 380-480 V 30–50 hp [22–37 kW]
130BT325.10
Figure 5.17 I6 Frame
IP54 380-480 V 30–50 hp [22–37 kW]
311
130BA215.10
RELAY 1
RELAY 2
9
9
6
03 02 01
90 05 04
Figure 5.18 I6 Frame
IP54 380-480 V 30–50 hp [22–37 kW]
How to Install Design Guide
