CR805 Retransfer Card Printer Instrallation and Administrator’s Guide A-9

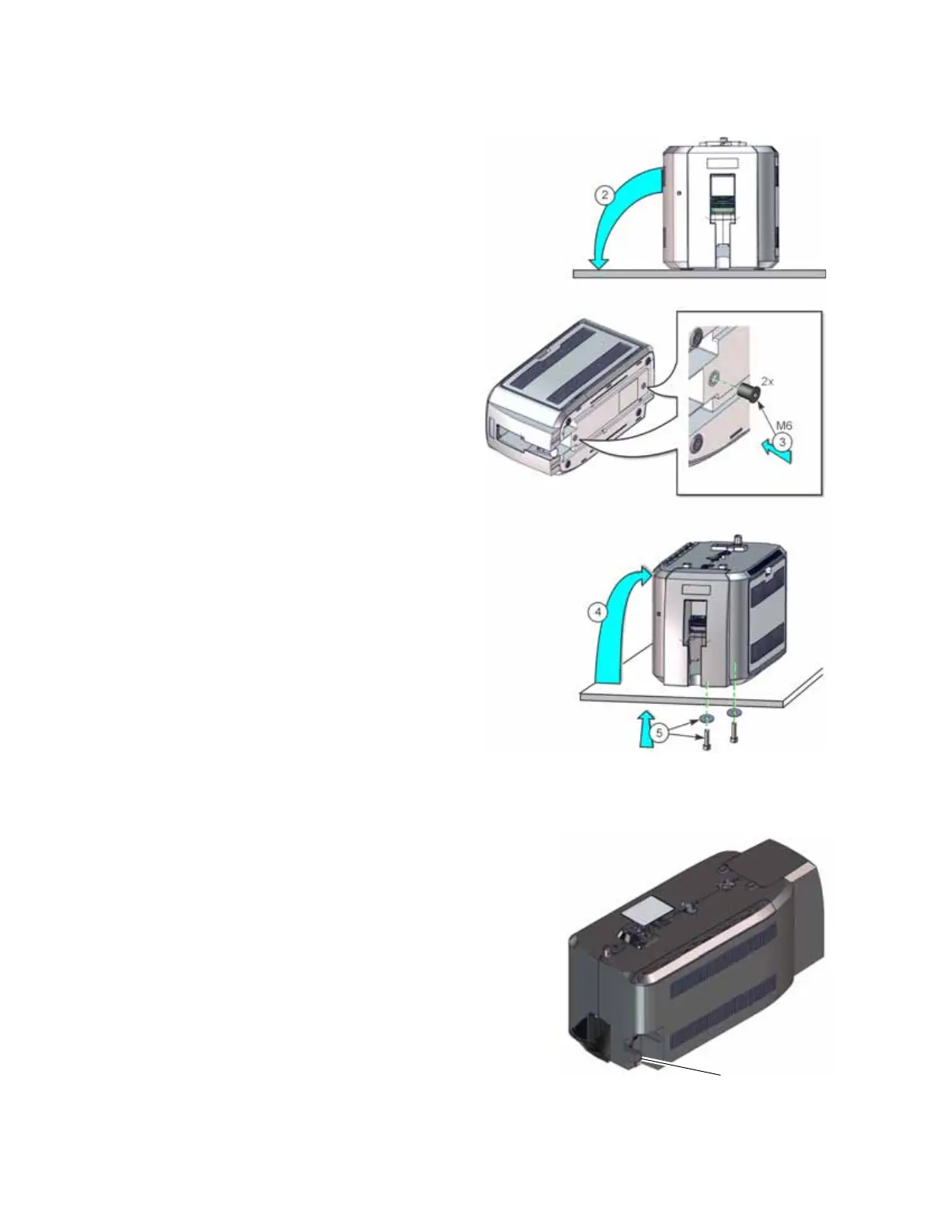

2. Carefully tip the laminator onto its
left side (the side without the access
door).
3. Insert the M6 well nut threaded
inserts into the bolt-down openings
on the bottom of the laminator.
4. Return the laminator to its upright
position and position it over the holes
that are drilled in the mounting
surface.
5. Secure the laminator to the mounting
surface.
a. Place a flat washer on each of the
screws beneath the mounting
surface.
b. Insert the M6 screws through the
holes in the mounting surface and
into the well nuts in the bottom
of the laminator.
c. Tighten the screws securely.
Use the Optional Cable Lock
You also can secure the laminator using the optional
cable lock.
1. Locate the security plate receptacle near the
power connection of the laminator
2. Insert the security plate vertically into the
receptacle from below the laminator.
3. Insert the T-bar of the cable lock through the
opening into the security plate.
4. Follow the instructions included with the cable
lock to complete the installation.
