10 Printer Installation
Use the Bolt-Down Openings
The printer includes bolt-down openings that you can use to secure it to a mounting surface.
You need the following supplies:
The bolt-down kit (part no. 512969-001) contains two M6 well nuts.
Two M6 (6 mm) screws, purchased separately.
The length of the screws you need depends on the thickness of the mounting surface. The
screw length is the surface thickness + 0.75 inch (20 mm).
Two M6 washers, purchased separately.
1/4-inch (7 mm) drill bit.

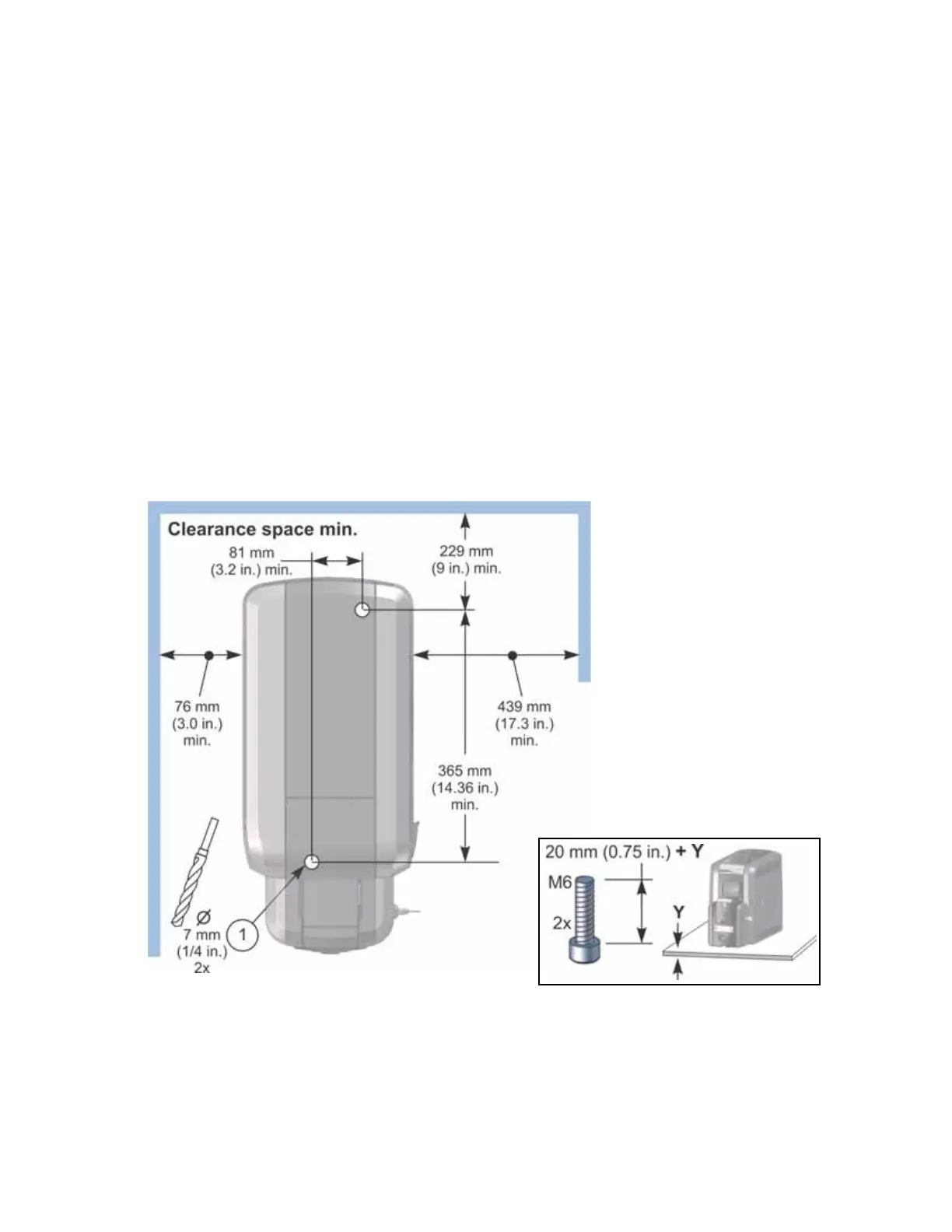

1. Drill two holes in the mounting surface following the dimensions and requirements shown in
the following figure:
