CR805 Retransfer Card Printer Installation and Administrator’s Guide 21

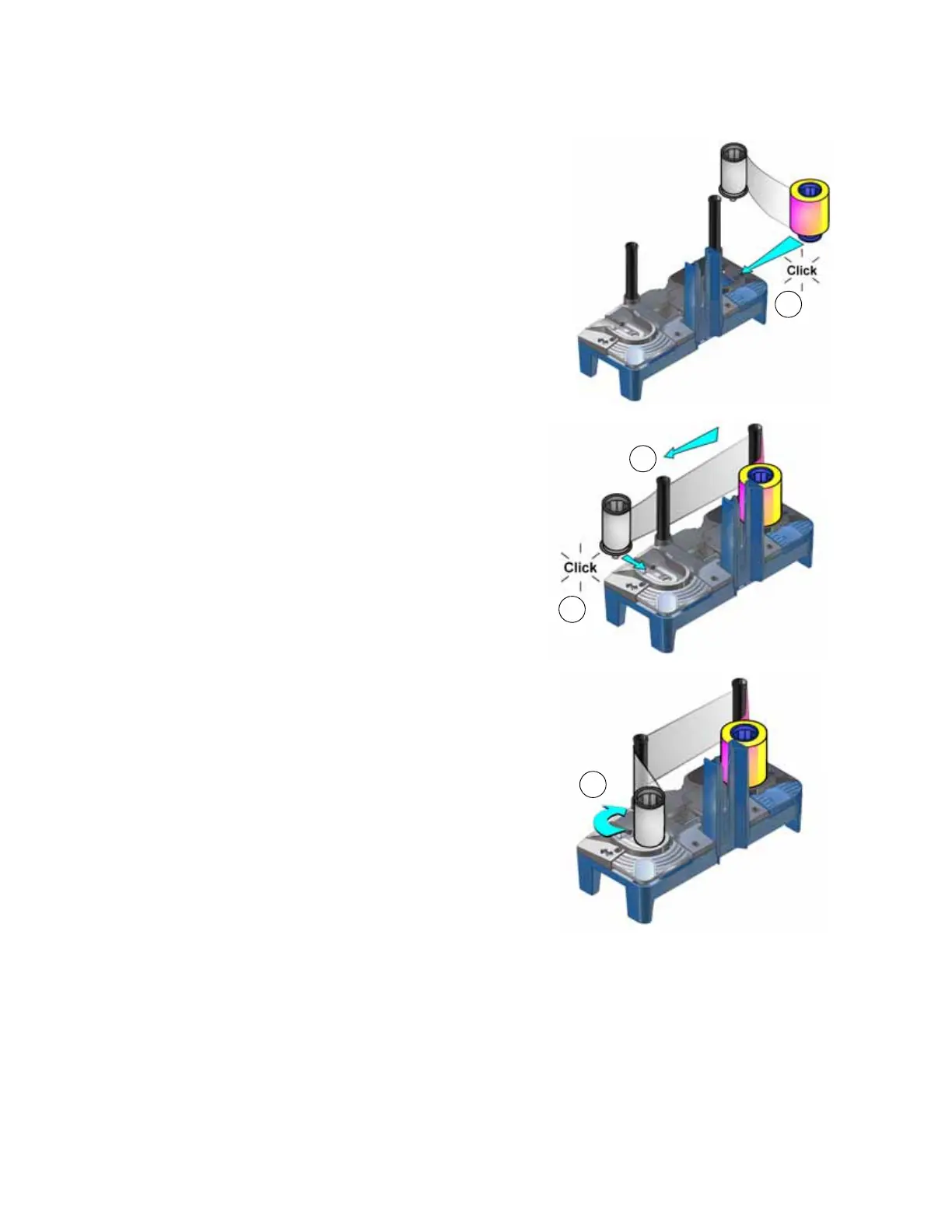

4. Install the ink ribbon.
a. Slide the blue supply spool onto the cartridge
until it clicks into place. The supply roll can go
on only one way and fits only on the correct
side of the cartridge.
b. Route the ink ribbon around the rollers on
the cartridge. A diagram on the cartridge
shows the correct routing pattern.
c. Slide the empty silver take-up spool onto
the cartridge until it clicks into place.
d. Turn the take-up spool clockwise just
enough to take up any slack in the ribbon.
5. Continue with “Install the Cleaning Sleeve” on page 22.
a
b
c
d
