DM16E1 / DM4E1 Operation and Installation Manual - 204-4001-19 49
5.7.1. Configuration

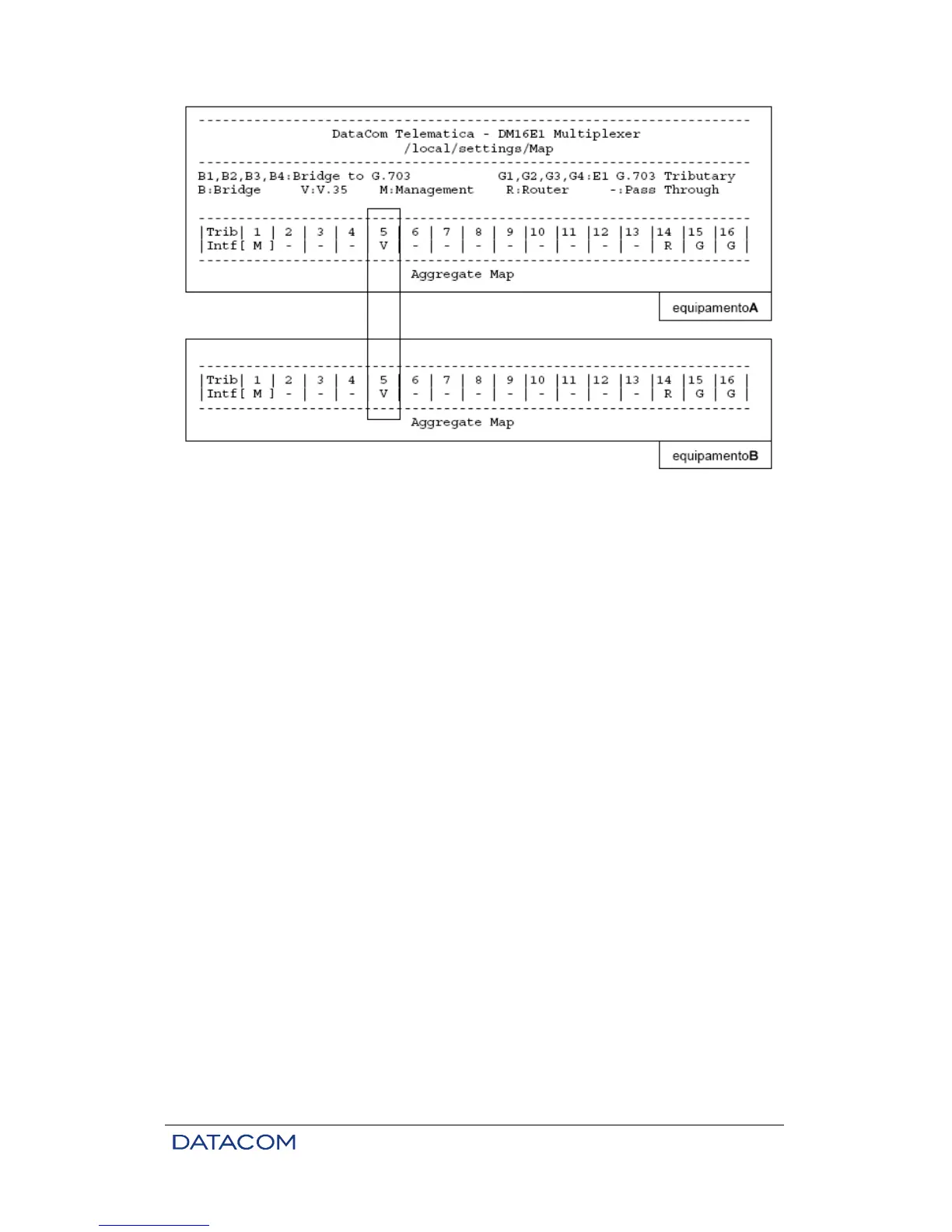

The V.35 tributary is set at the equipment slot 4. The screen below shows the configuration menu for this
tributary (/settings/ports/V.35).
# -------------------------------------------------------------------------
# DataCom Telematica - DM16E1 Multiplexer
# /local/settings/ports/V35
# -------------------------------------------------------------------------
# Card Settings
# Slot 4 - Port 01 - V.35 Interface
#
# Alarms :[ Disable ]
# Tests :[ Disable ]
# CT105 :[ Forced On ]
# CT108 :[ Forced On ]
# Clock :[ CT115 ]
# CT128 :[ Disable ]
# Clock Phase :[ Normal ]
# Rate ( Nx64 kbit/s ) :[32]
#
#
#
#
# -------------------------------------------------------------------------
# <ENTER> Save and Exit <ESC> Exit <SPACE/TAB> Change
# <PgUp> Pre[V]ious Card [N]ext Card <PgDn>
# -------------------------------------------------------------------------
The V.35 interface configurations include:
• Alarms: Enables alarm generation by the port. Alarm generation is dependent on signal enabling.
Alarm conditions:
− Loss of CT113 or CT128 clock configured.
− CT105 or CT108 disabled (off).
• Tests: Enables activation of tests at the interface.
• CT105 and CT108: External signals received by the DTE. Can be set to Controlled or Forced ON.
• Clock: Identifies the clock used as reference for CT103.
− 2048kHz E1 AIS Ref. Clock: Uses the 2048 kHz clock for AIS emission in case of failure. This
clock is selected in the general equipment configurations. See chapter Table 5 for more information.
