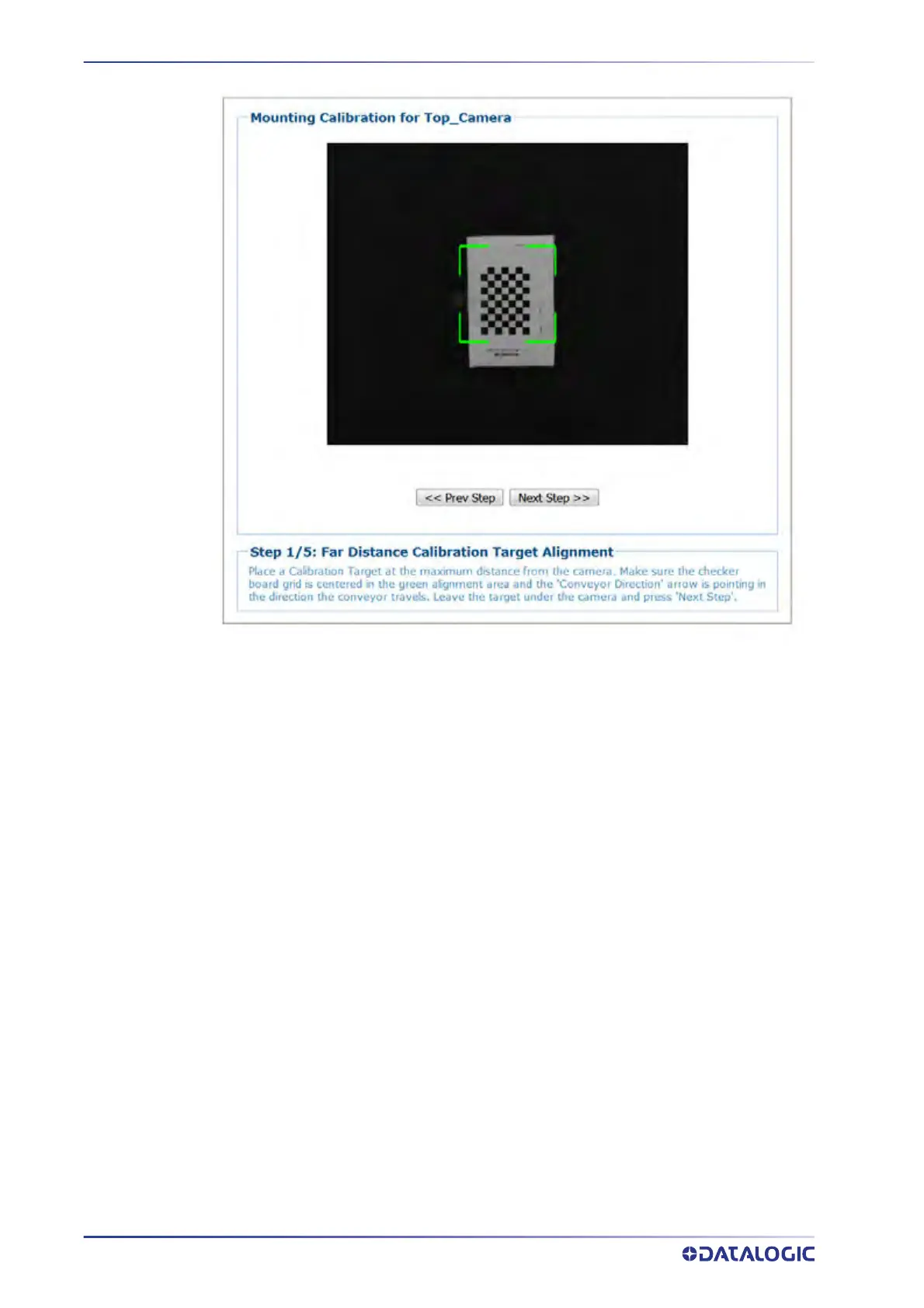

3. Place a Calibration Target at the maximum distance from the camera. Make sure
the checker board grid is centered in the green alignment area and the 'Conveyor
Direction' arrow is pointing in the direction the conveyor travels. Leave the target
under the camera and press 'Next Step'.
