PACKTRACK CALIBRATION WIZARD
PRODUCT REFERENCE GUIDE
181

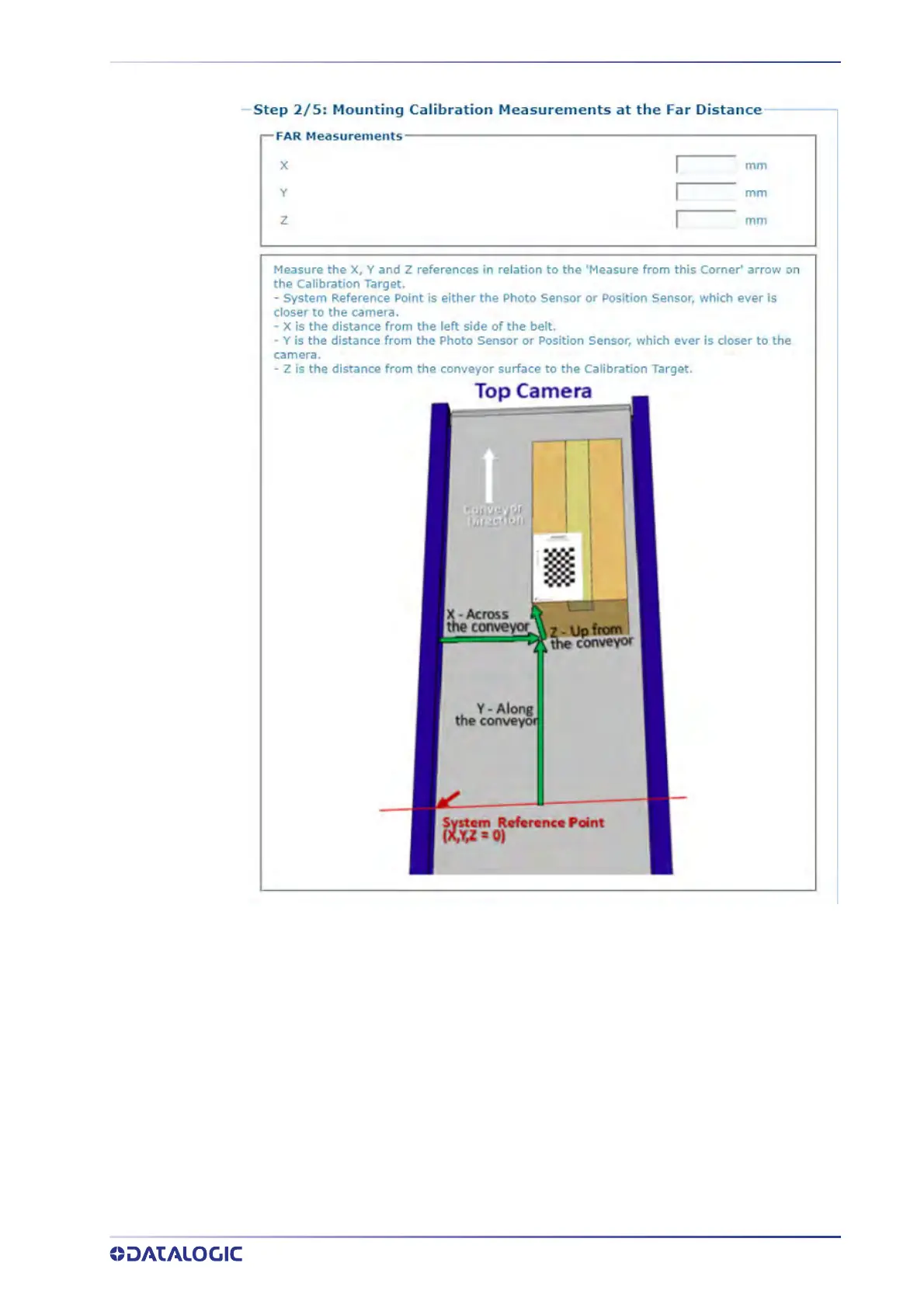

4. At the Far Distance, measure along conveyor travel, the distance from the trigger
source to the target.
5. At the Far Distance, measure across the conveyor the distance from the target to
the edge of the scanning area or the side of the conveyor belt.
6. At the Fa
r Di
stance, measure up from the conveyor surface to the target, if the
target is on the surface of the conveyor, this measurement will be 0.
7. Enter the measurements.
