AV500/AV900 2D CAMERA

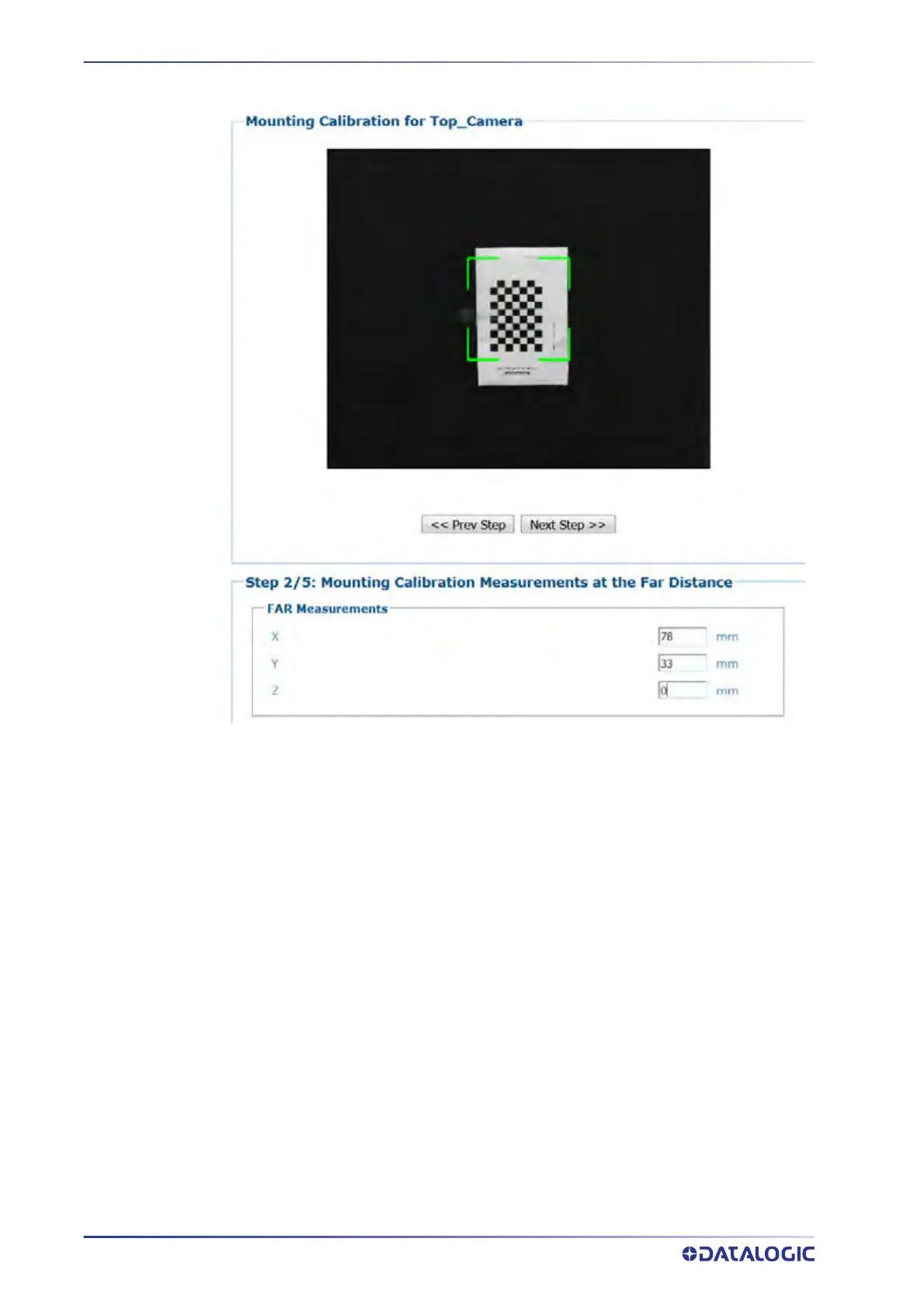

8. Place a Calibration Target at the minimum distance from the camera. Make sure
the checker board grid is centered in the green alignment area and the 'Conveyor
Direction' arrow is pointing in the direction the conveyor travels. Leave the target
under the camera and press 'Next Step'.
9. At the Near Distance, measure along conveyor travel, the distance from the trig-
ger source to the target.
10. At the Near Distance, measur
e across the conveyor the distance from the target
to the edge of the scanning area or the side of the conveyor belt.
11. At the Near Distance, measure up fr
om the conveyor surface to the target, if the
target is on the surface of the conveyor, this measurement will be 0.
12. Enter the measurements.
