IMAGING CALIBRATION WIZARD
PRODUCT REFERENCE GUIDE
195
Dual Zone Calibration

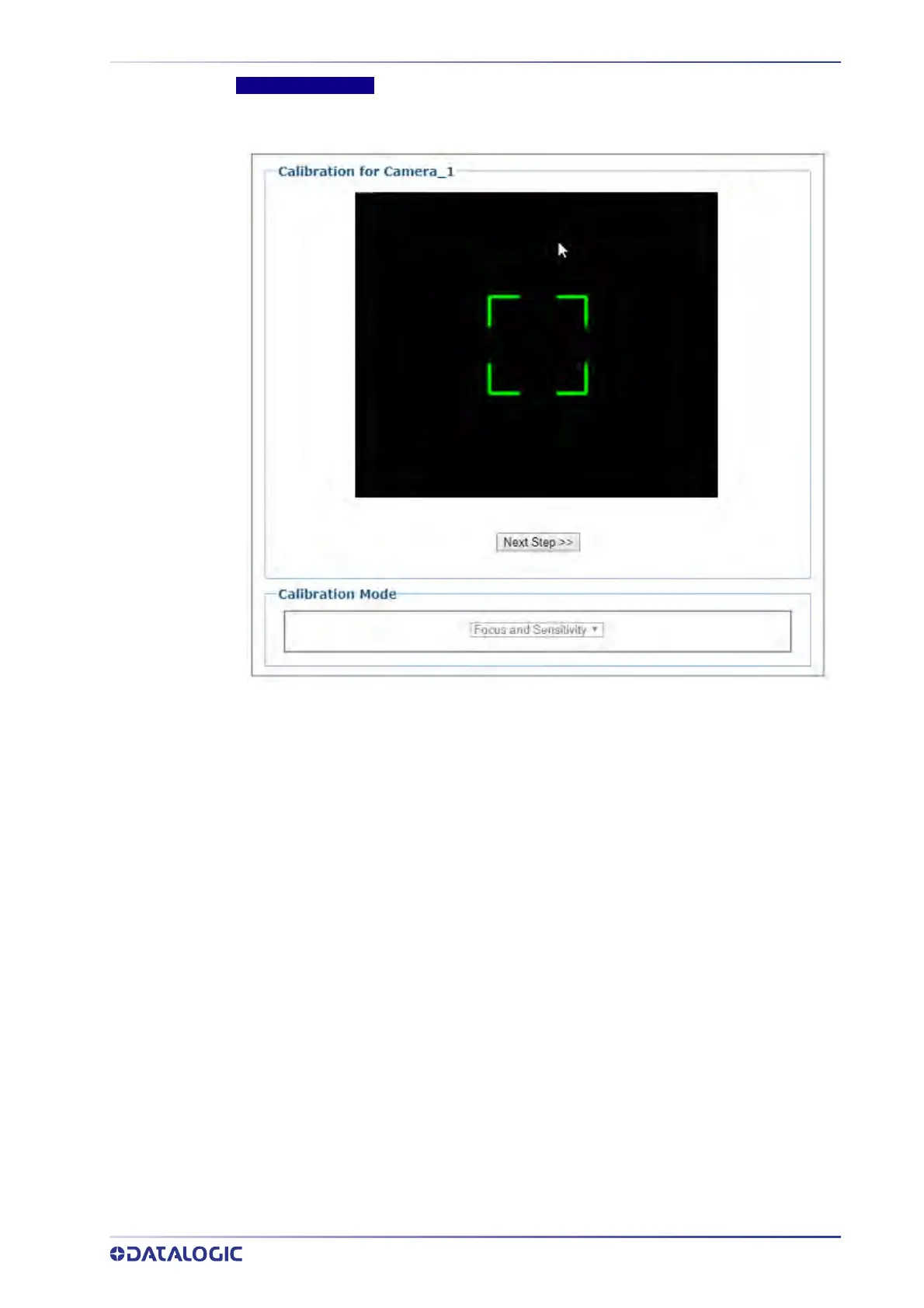

1. If you have selected Dual Zone focusing, and you click the Imaging Calibration
Wizard this is the first screen you will see. Click Next Step>>
.
2. Place a Calibration Target, or clean barcode, in the center of the far wo
rking
range. Make sure the checker board grid, or a clean barcode, is centered in the
green alignment area. Leave the target under the camera and press Next Step>>.
