E-GENIUS
196
AV500/AV900 2D CAMERA

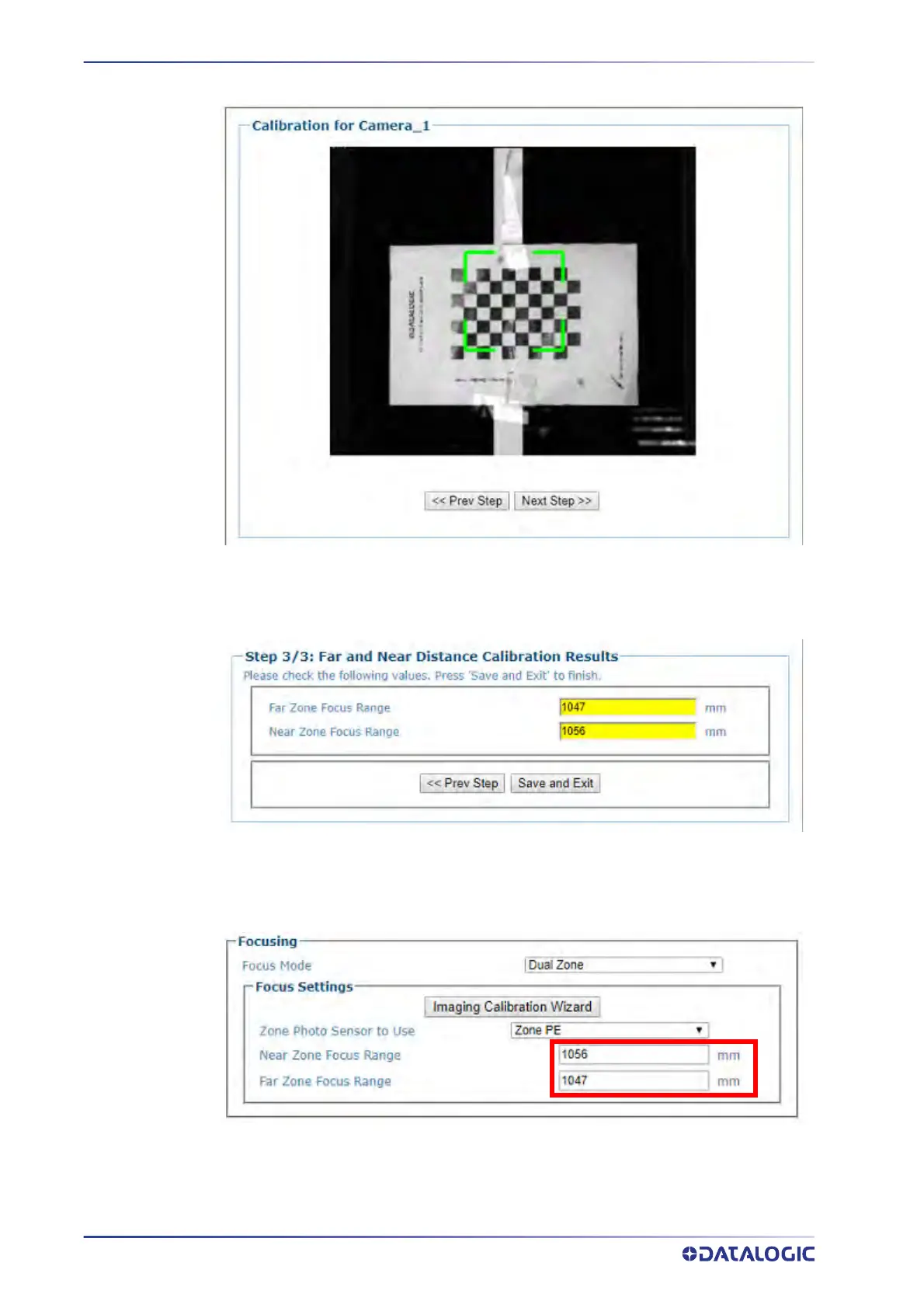

3. Place a Calibration Target, or clean barcode, in the center of the near working
range. Make sure the checker board grid, or a clean barcode, is centered in the
green alignment area. Leave the target under the camera and press Next Step>>.
4. Click Save and Exit and the Near and Far Zone Focus Ranges are entered into the
Imaging parameters based upon the wizard determinations
