CALIBRATION
292
AV500/AV900 2D CAMERA

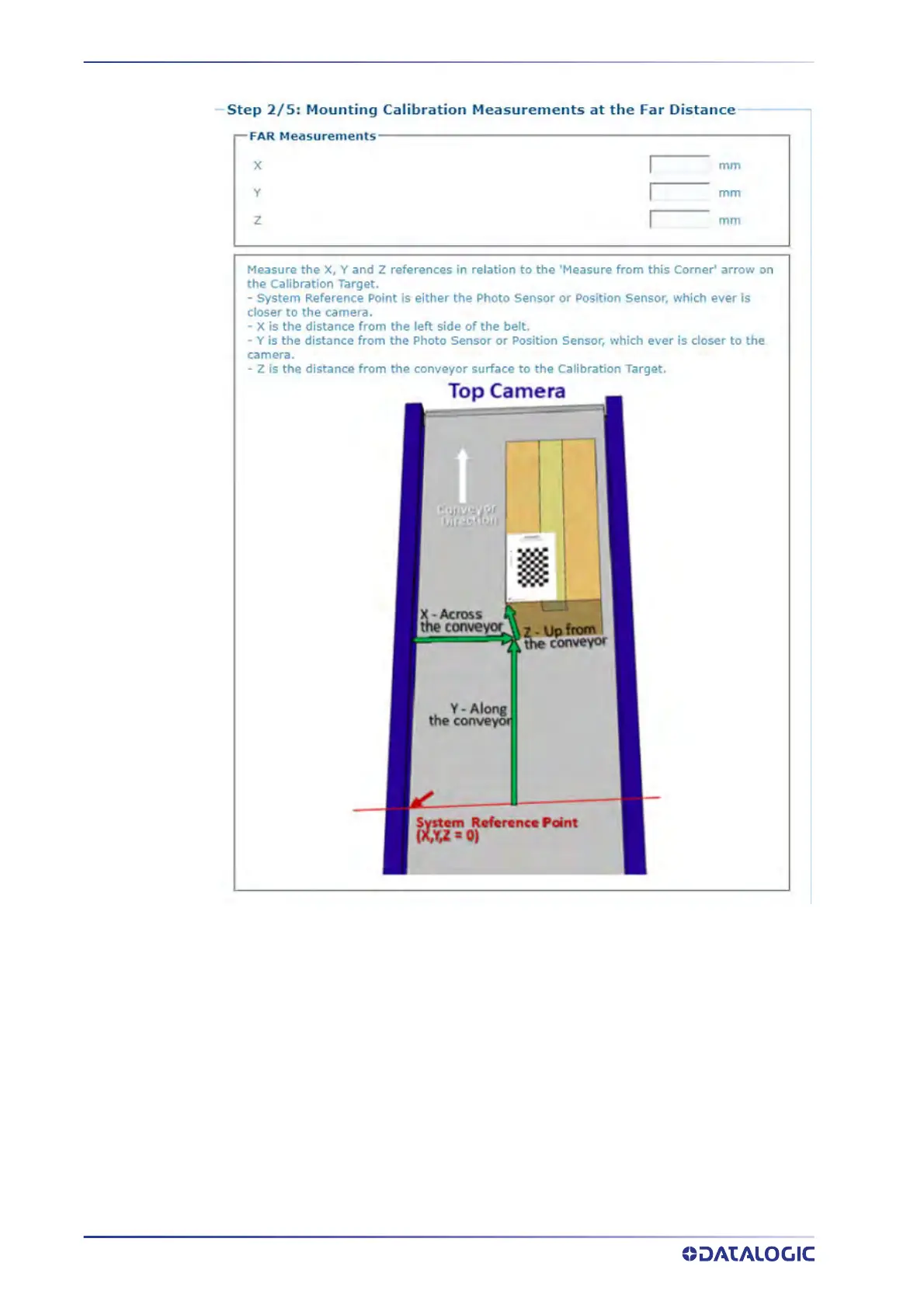

5. Measure the distance from the side of the belt to the Calibration Target.
6. Measure the distance from the Photo Sensor or Position Sensor, whichever is
closer to the camera, to the Calibration Target.
7. Measure the distance from the conveyor surface to the Calibration Target. Z=0
8. Enter those measurements into the Far Measurements fields.
9. Click Next Steps >>.
10. St
ep 3/5: Near Distance Calibration Target Alignment appears:
