SOFTWARE UPDATE
PRODUCT REFERENCE GUIDE
293

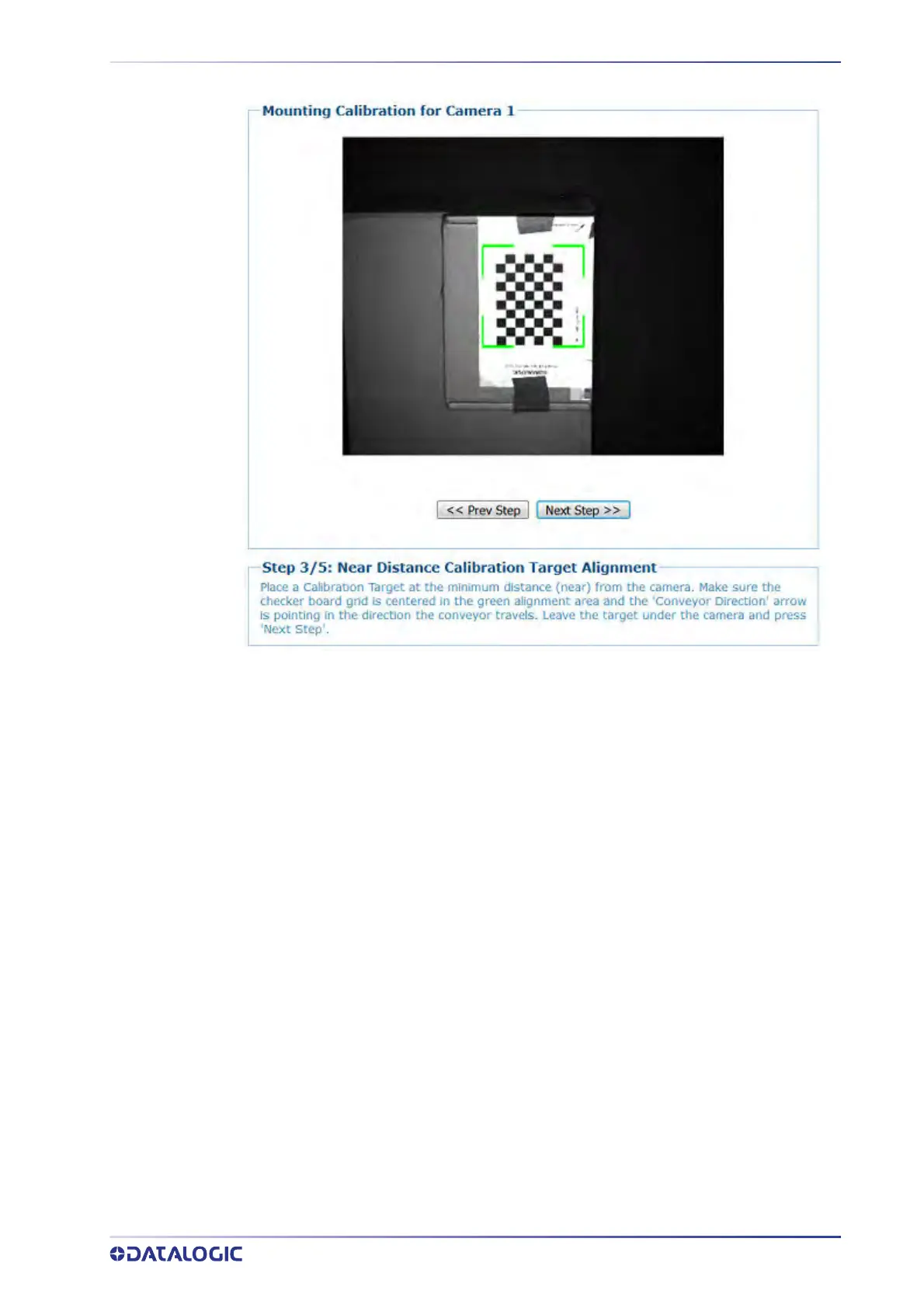

11. Place a target at the minimum distance and measure X, Y, and Z references
•X is the distance from the side of the belt to the Calibration Target.
•Y is the distance from the Photo Sensor or Position Sensor, which ever is closer to
the camera, to the Calibration Target.
•Z is the distance from the conveyor surface to the Calibration Target.
12. Enter those measurements into the Near Measurements fields.
13. Click Next Steps >>.
