Datalogic Magellan 1100i Product Reference Guide

Label ID
Product Reference Guide 71

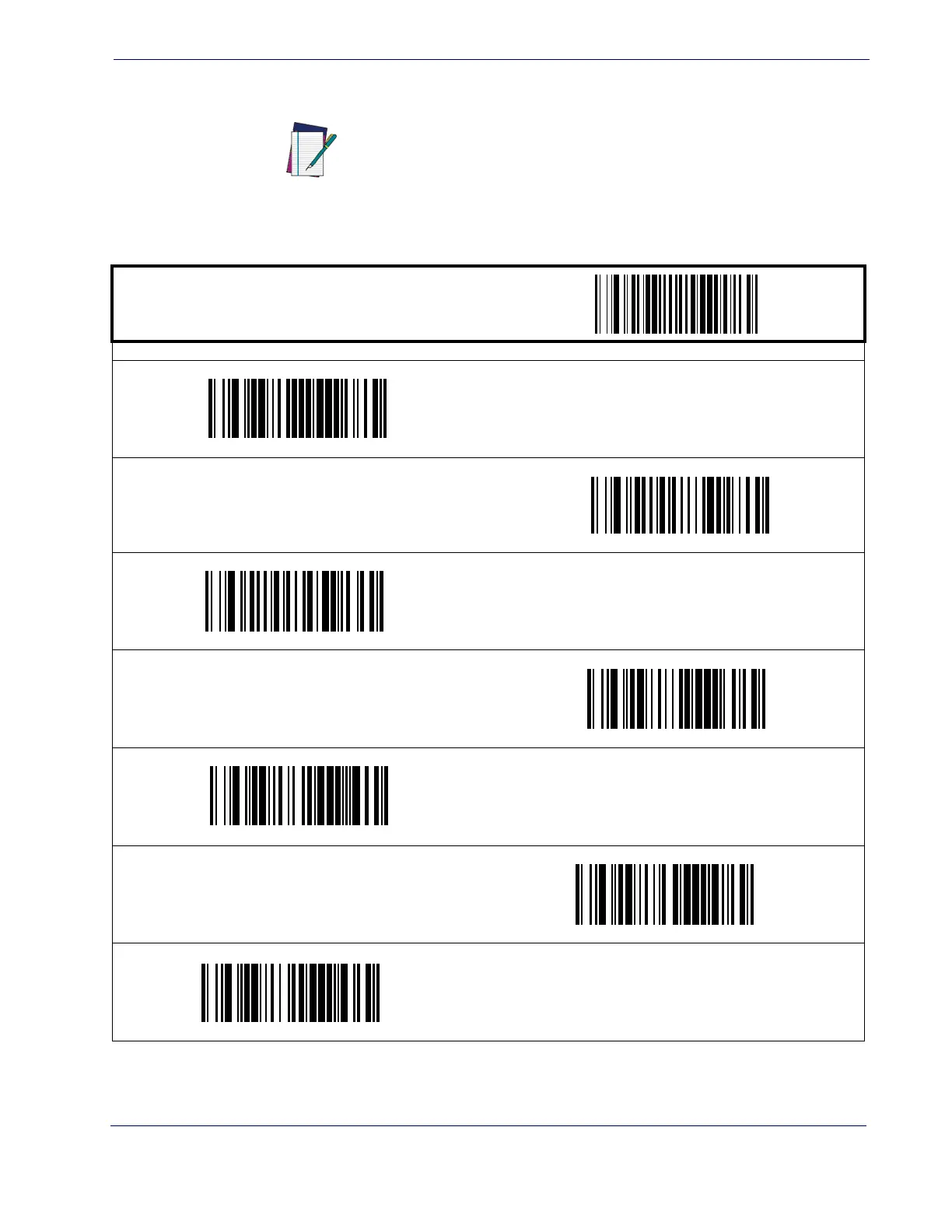

Label ID — cont.
NOTE
For the 2D symbologies on this page, the Label ID is 4
bytes. The first 3 bytes are characters for the label ID. A
00 (hex) value in the first 3 bytes indicates the end of the
label ID characters. The 4th byte is a control byte.
The use of the control byte is as follows:
bit 0-if set to 1, the AIM Id is appended for that label type
START / END
PROGRAMMING BARCODES
DEFAULT SETTING FOR THIS FEATURE: mP (6D500000 hex)
Set Micro PDF 417 Label ID Character(s)
Set QR Code Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: QR (51520000 hex)
DEFAULT SETTING FOR THIS FEATURE: MC (4D430000 hex)
Set Maxicode Label ID Character(s)
Set Aztec Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: Az (417A0000 hex)
DEFAULT SETTING FOR THIS FEATURE: R4 (52340000 hex)
Set GS1 DataBar Omnidirectional 2D Composite
Label ID Character(s)
Set GS1 DataBar Limited 2D Composite
Label ID Character(s)
DEFAULT SETTING FOR THIS FEATURE: RL (524C0000 hex)
DEFAULT SETTING FOR THIS FEATURE: RX (52340000 hex)
Set GS1 DataBar Expanded 2D Composite
Label ID Character(s)

Datalogic Magellan 1100i Specifications

General

Yaw reading angle	-75 - 75 °
Decoding standards	-1D + GS1 DataBar, -GS1 DataBar Composites, -GS1 DataBar Expanded Stacked, -GS1 DataBar Stacked, -GS1 DataBar Stacked Omnidirectional, -MicroPDF417, -PDF417.
Tilt reading angle	0 - 360 °
Pitch reading angle	-65 - 65 °
Standard interfaces	USB, RS-232
Input voltage	4.5 - 14 V
Power consumption	400 mA
Dimensions (WxDxH)	84 x 71 x 94 mm
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	198.5 g
