RAPID CONFIGURATION
Serial Connections
To connect the system in a Serial point-to-point configuration, you need the hardware
indicated in Figure 3.
In this layout the data is transmitted to the Host from the Matrix 210N main serial interface.
Matrix 210N power and I/O device connections take place through the CBX connection box.
When One Shot or Phase Mode Operating mode is used, the reader is activated by an
External Trigger (photoelectric sensor) when the object enters its reading zone.

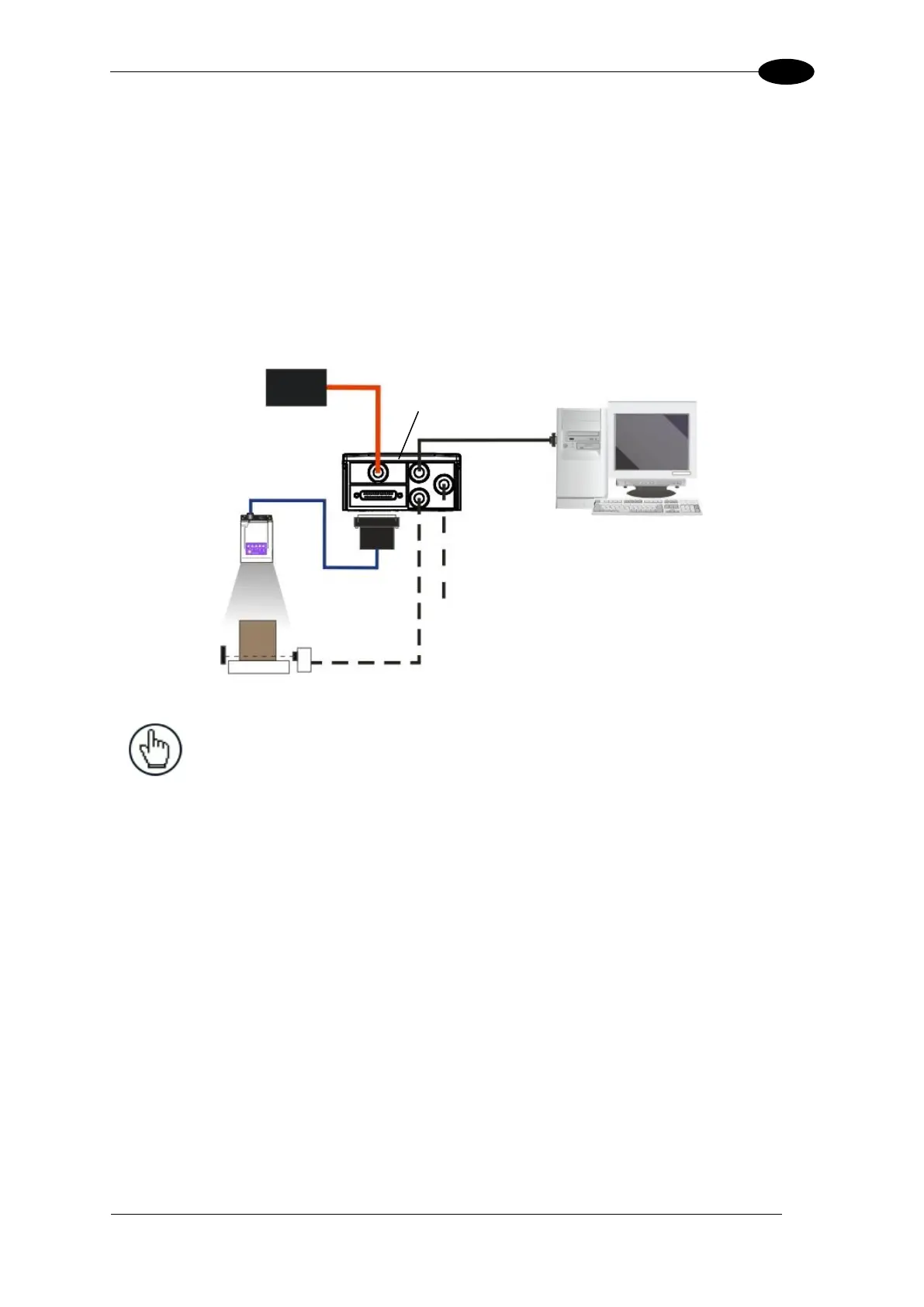

Figure 3 – Matrix 210N Serial Point-to-Point Layout
NOTE: For device configuration through DL.CODE, it is recommended to
use the Ethernet interface (depdending on your model).
All devices except dedicated USB models can be configured through their
Main or Aux Serial port. However, through these interfaces, configuration is
slower than the Ethernet interface and presents some limitations. It is
recommended to use the Serial interface for configuration only if the Ethernet
interface is not available.
* External Trigger or Presence Sensor
(for One Shot or Phase Mode)
