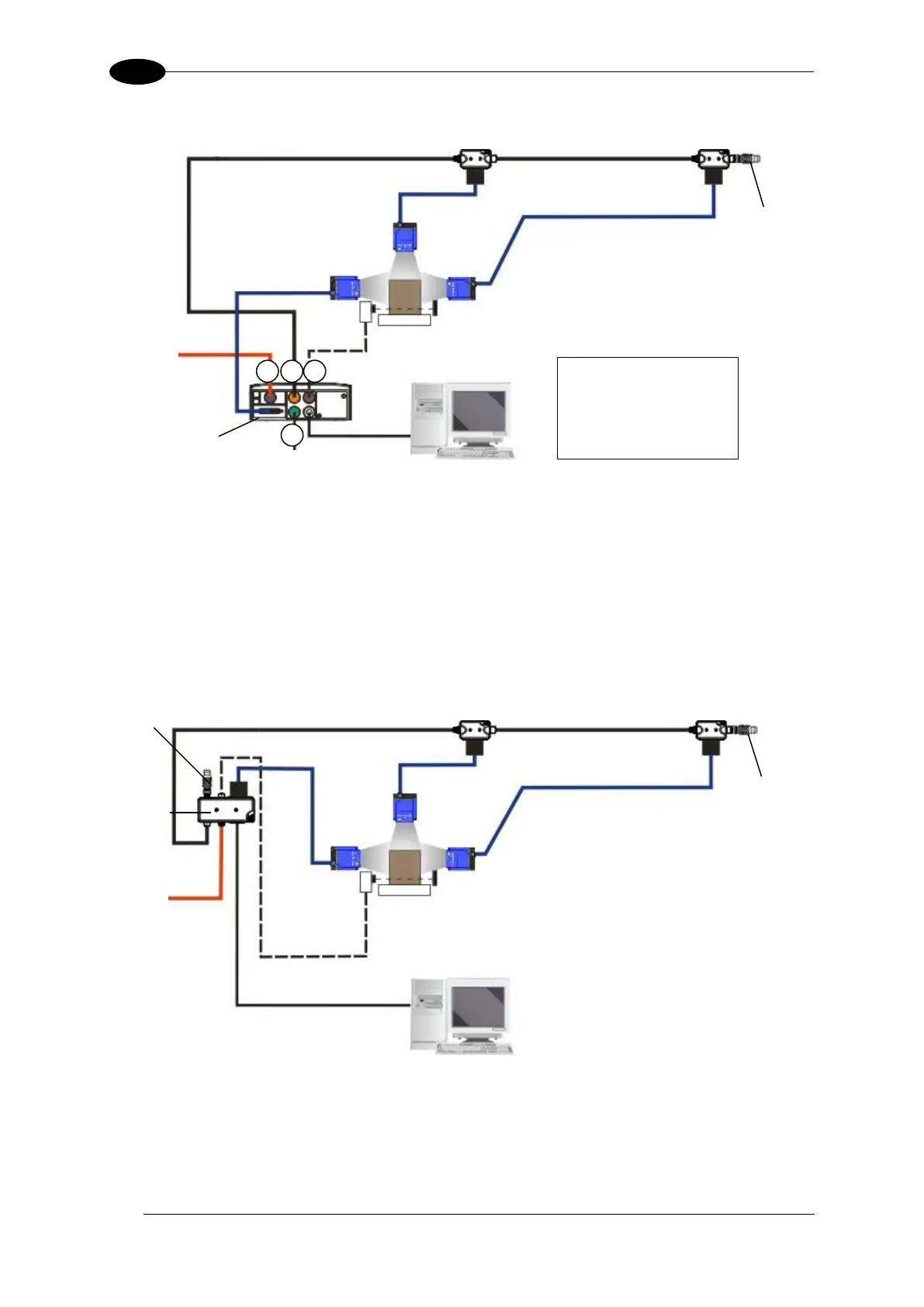

Figure 69 - ID-NET Synchronized Layout
Matrix 210N Master with CBX500 + Matrix 210N Slaves with QL100
If the Backup and Restore function is not required, then a QL300 can be used to connect the
master reader.
Figure 70 - ID-NET Synchronized Layout
Matrix 210N Master with QL300 + Matrix 210N Slaves with QL100
Host
QL100
2
1
3
PS
Power
CBX500
CBL-1490
ID-NET
Terminator
The ID-NET network must be terminated through
the internal switch of the CBX500 and inserting an
ID-NET terminator into the last QL in the network.
ID-NET Synchronized
Slave Nodes
4
CBL-1480-xx
CAB-PW-EXT
CBL-1480-xx
 BA600 ID-NET Out
 BA400 Ext. Power
 BA500 Trigger
 BA300 Service
QL100
ID-NET
Synchronized
Master
Main
ID-NET
CAB-AUX03
Host
QL100
PS
Power
Main Interface
CBL-1490
ID-NET
Terminator
The ID-NET network must be terminated
inserting an ID-NET terminator into the
QL300 (Master) and into the last QL in
the network.
ID-NET Synchronized
Slave Nodes
CBL-1480-xx
CAB-PW-EXT
CBL-1480-xx
QL300
ID-NET
Synchronized
Master
QL100
ID-NET
CBL-1496
ID-NET
Terminator
