The same configuration can be made to a Host using the on-board Ethernet interface to the
Master. The TCP/IP Ethernet and ID-NET interfaces are connected as shown in the figure
below.

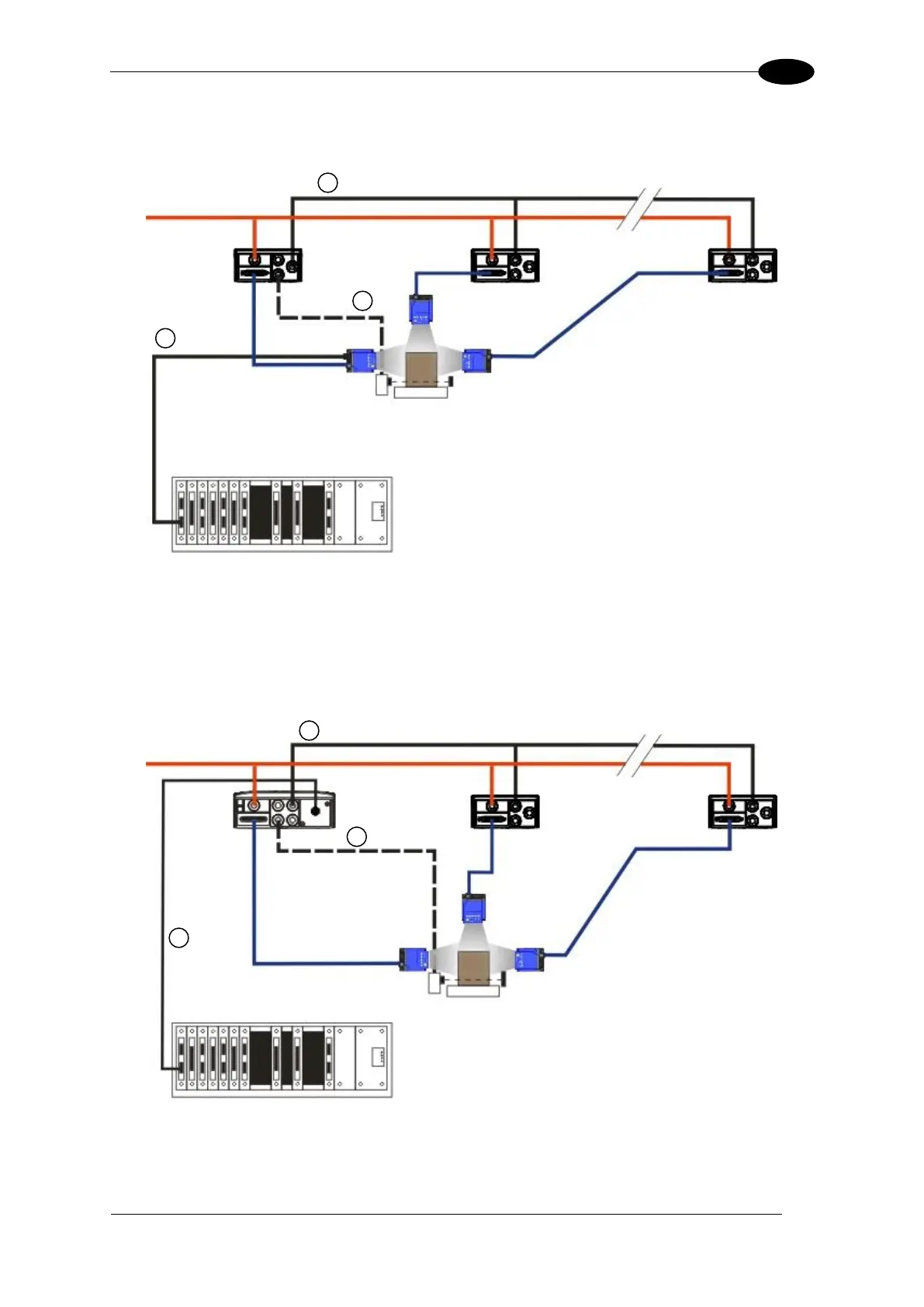

Figure 71 – ID-NET Synchronized Layout with Master on-board TCP/IP Ethernet Interface to Host
Alternatively, the Master reader can communicate to the Host as a Slave node on a Fieldbus
network. This requires using an accessory Fieldbus interface board installed inside the
CBX500 connection box. System configuration can be accomplished through the Ethernet
interface of each individual reader using the DL.CODE configuration program.
Figure 72 – ID-NET Synchronized Layout with Master CBX500 Fieldbus Interface to Host
CBX100

TCP/IP on-board Ethernet Interface

External Trigger
 ID-NET (up to 16 devices - practical limit)
Host
1
3
2
ID-NET
Synchronized
Master
ID-NET
Synchronized
Slave#1
Power
ID-NET
Synchronized
Slave#n

Fieldbus Interface
 External Trigger (for One Shot or Phase Mode)
 ID-NET (up to 16 devices - practical limit)
Host
2
ID-NET
Synchronized
Master
ID-NET
Synchronized
Slave#1
Power
1
3
ID-NET
Synchronized
Slave#n
