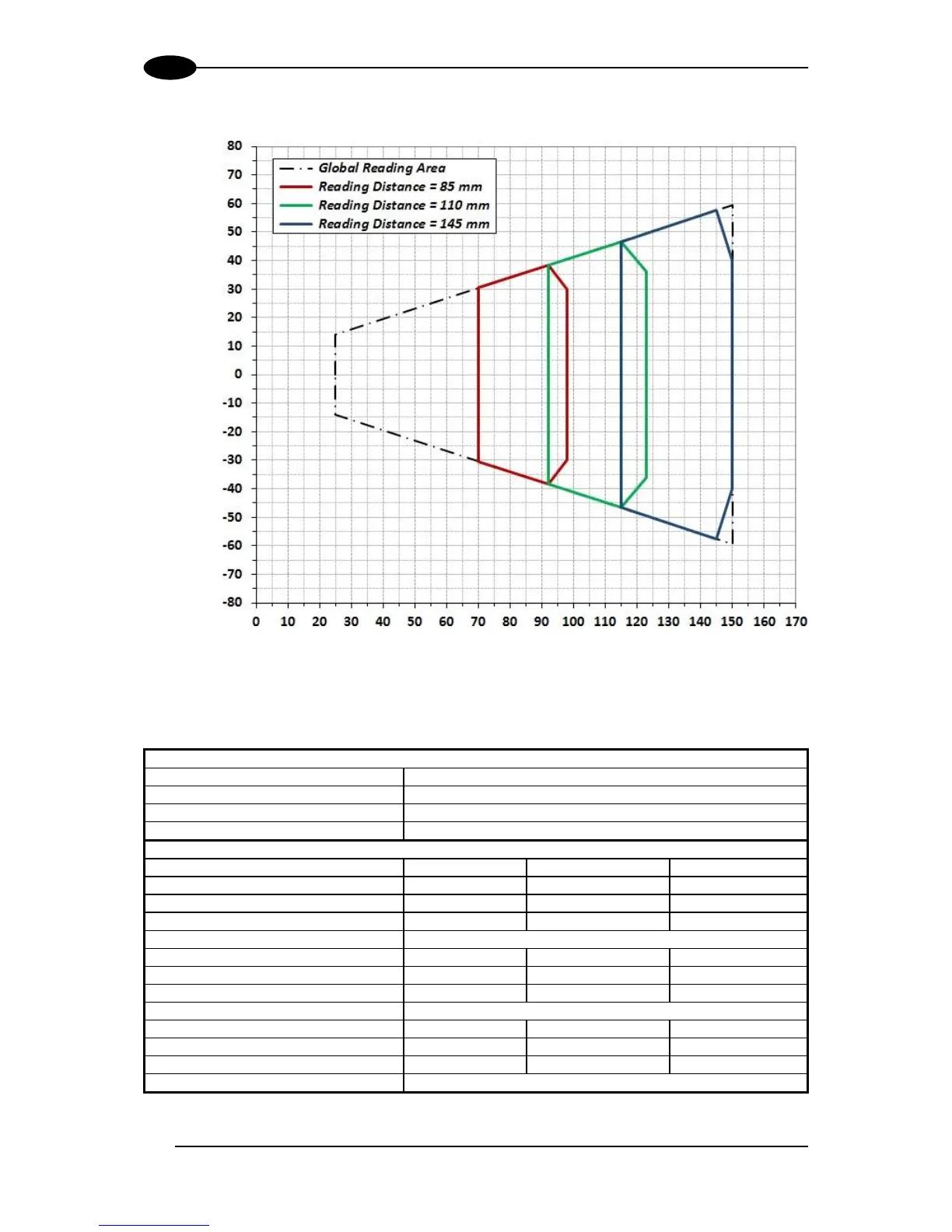

Data Matrix 0.19 mm (7.5 mils)
CONDITIONS:
Hardware Settings
Code Symbology
Data Matrix ECC 200
Code Resolution
0.19 mm (7.5 mils)
Tilt Angle
45°
Skew Angle
15°
Software Parameters
Reading Distance (mm)
85
110
145
412-xxx RED Wide
Exposure Time (µs)
85
110
150
Gain
12
12
12
Illuminator Lighting Mode
Very High Power Strobed
472-xxx LT-DPM
Exposure Time (µs)
247
310
435
Gain
12
12
12
Illuminator Lighting Mode
Very High Power Strobed
482-xxx MLT-DPM
Exposure Time (µs)
128
165
225
Gain
12
12
12
Illuminator Lighting Mode
Very High Power Strobed
Reading Distance
Horizontal Reading Width
mm
in
0 1 2 3 4 5 6
0
1
2
3
-1
-2
-3
