STEP 5 – INSTALLING VISISET™ CONFIGURATION PROGRAM
VisiSet
™
is a Datalogic reader configuration tool providing several important advantages:
 Setup Wizard for rapid configuration and new users;
 Defined configuration directly stored in the reader;
 Communication protocol independent from the physical interface allowing the reader to
be considered as a remote object to be configured and monitored.
To install VisiSet™, turn on the PC that will be used for the configuration, running
Windows 98, 2000/NT, XP, Vista, 7 or 8; then insert the VisiSet™ Mini-DVD, wait for it to
autorun and follow the installation procedure.
This configuration procedure assumes a laptop computer, running VisiSet™, is connected to
the reader's auxiliary port. The reader can also be connected to VisiSet™ through the on-
board Ethernet by following the procedure in chp. 7.
After installing and running the VisiSet™ software program the following window:

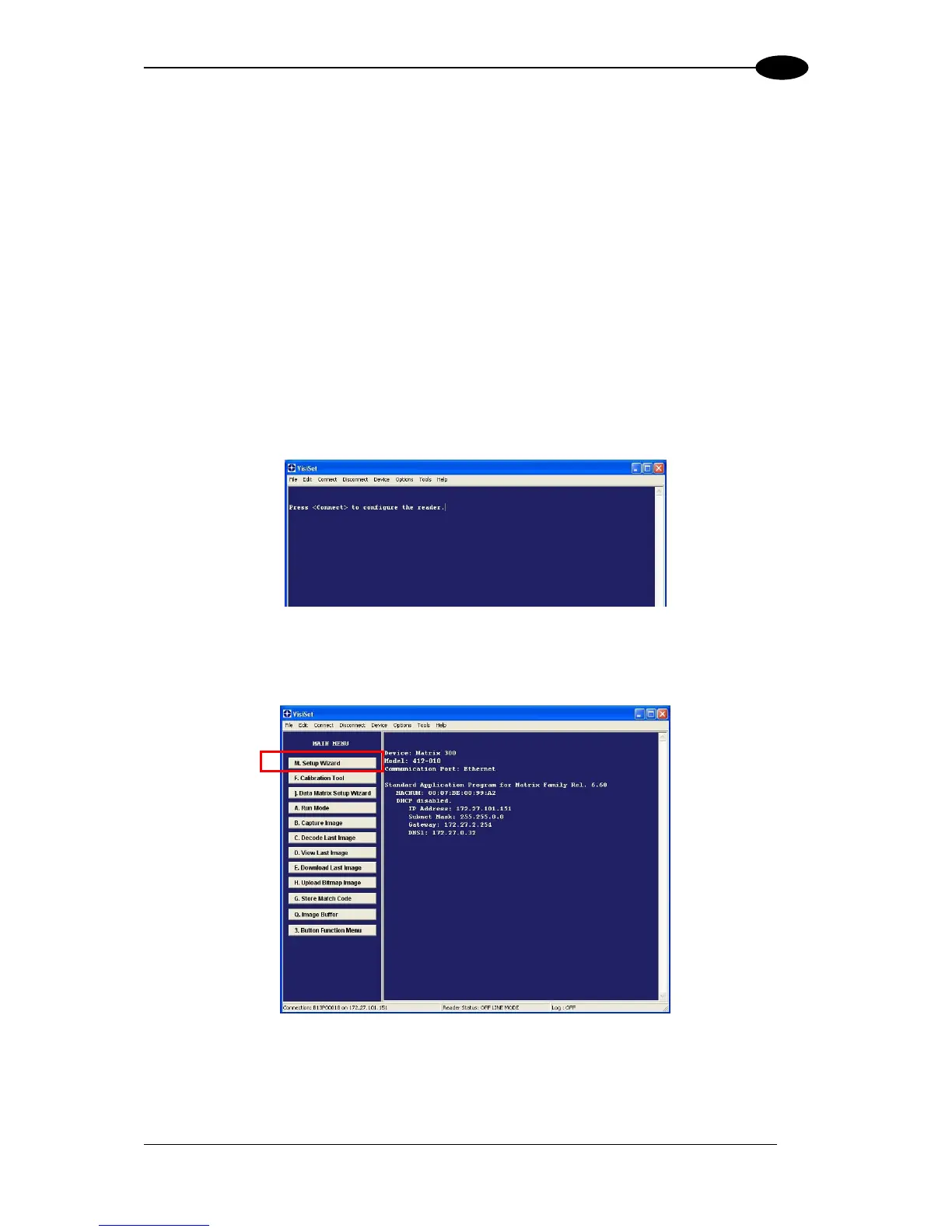

Figure 8 - VisiSet™ Opening Window
Set the communication parameters from the "Options" menu. Then select "Connect", the
following window appears:
Figure 9 - VisiSet™ Main Window After Connection
