4.2.2 RS485/422 Full-Duplex Interface
The RS485/422 full-duplex (5 wires + shield) interface is used for non-polled communication
protocols in point-to-point connections over longer distances (max 1200 m / 3940 ft) than
those acceptable for RS232 communications or in electrically noisy environments.
The CBX pinout follows:
CBX100/500
Function
TX+
RS485/422 Transmit Data +
RX+
RS485/422 Receive Data +
TX-
RS485/422 Transmit Data -
RX-
RS485/422 Receive Data -
SGND
Signal Ground

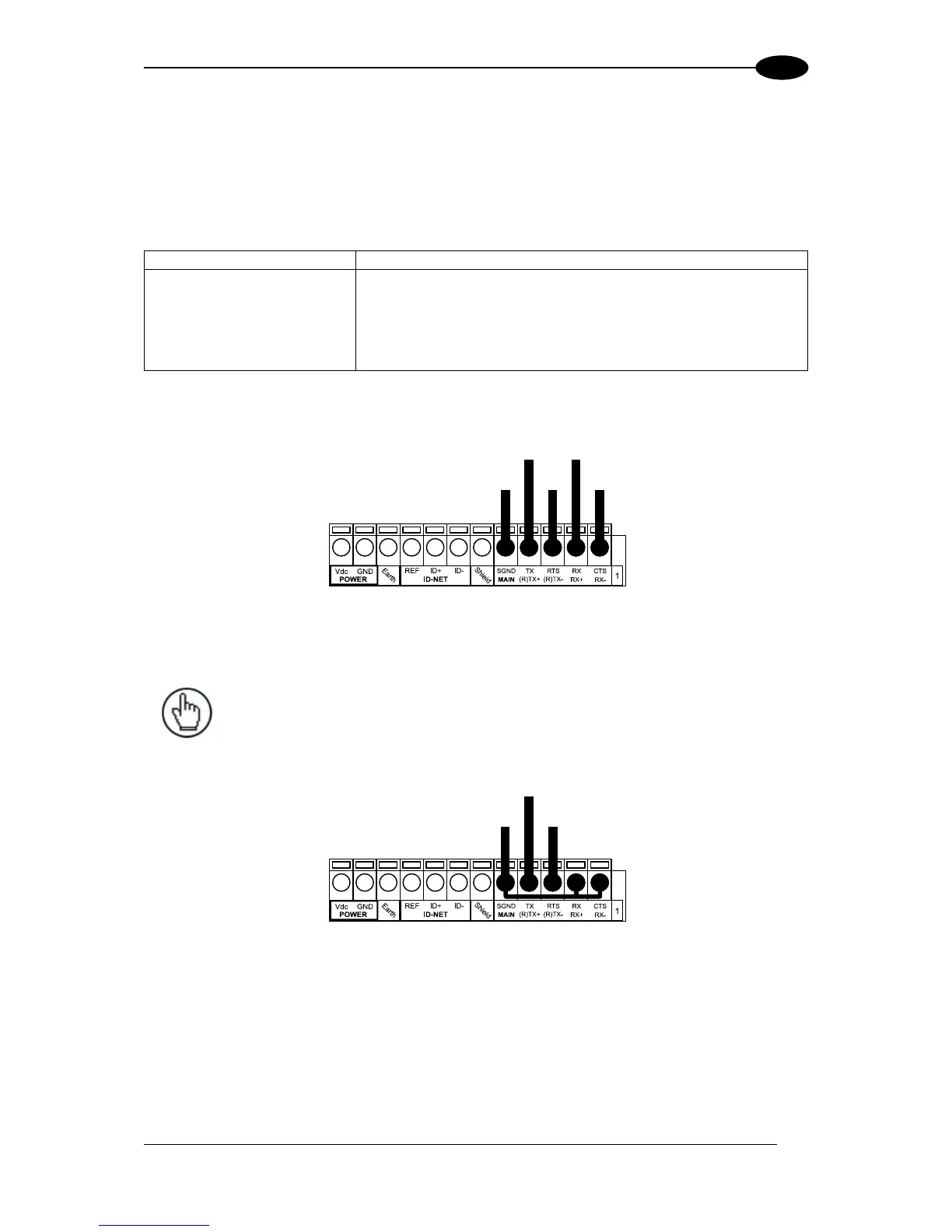

Figure 38 - RS485/422 Full-duplex Connections
NOTE: For applications that do not use RX signals, do not leave these lines
floating but connect them to SGND as shown below.
Figure 39 - RS485/422 Full-duplex Connections using Only TX Signals
RX485+
SGND RX485-
USER INTERFACE
SGND TX+
TX-
READER
RX485+ TX485+
SGND RX485- TX485-
USER INTERFACE
SGND TX+ RX+
TX- RX-
READER

Datalogic Matrix 300 Specifications

General

Operating Temperature	0 °C to 45 °C
Resolution	8 mils (1D codes); 10 mils (2D codes)
Reading Distance	30-300 mm
Interface	RS-232
Connectivity	Ethernet, Serial
Power Supply	10 to 30 VDC
Dimensions	2.5 x 1.1 x 1.7 in
Weight	2.5 oz
Storage Temperature	-20°C to 60°C
Barcode Symbologies	Code 39, Code 128, UPC/EAN, Interleaved 2 of 5
