7.3 STARTUP
After completing the mechanical and electrical connections to Matrix 300™, you can begin
software configuration as follows:
1. Power on the Matrix 300™ reader. Wait for the reader startup. The system bootstrap
requires a few seconds to be completed. The reader automatically enters Run Mode.
2. Run the VisiSet™ program.
3. Press Connect on the VisiSet™ menu bar. The PC will automatically connect to the
Matrix 300™ reader.
Upon connection, Matrix 300™ exits Run Mode and displays the Main Menu on VisiSet™
with all the commands necessary to monitor your reader's performance. You can select
these commands using the mouse or by pressing the key corresponding to the letter
shown on the button. See Figure 75.

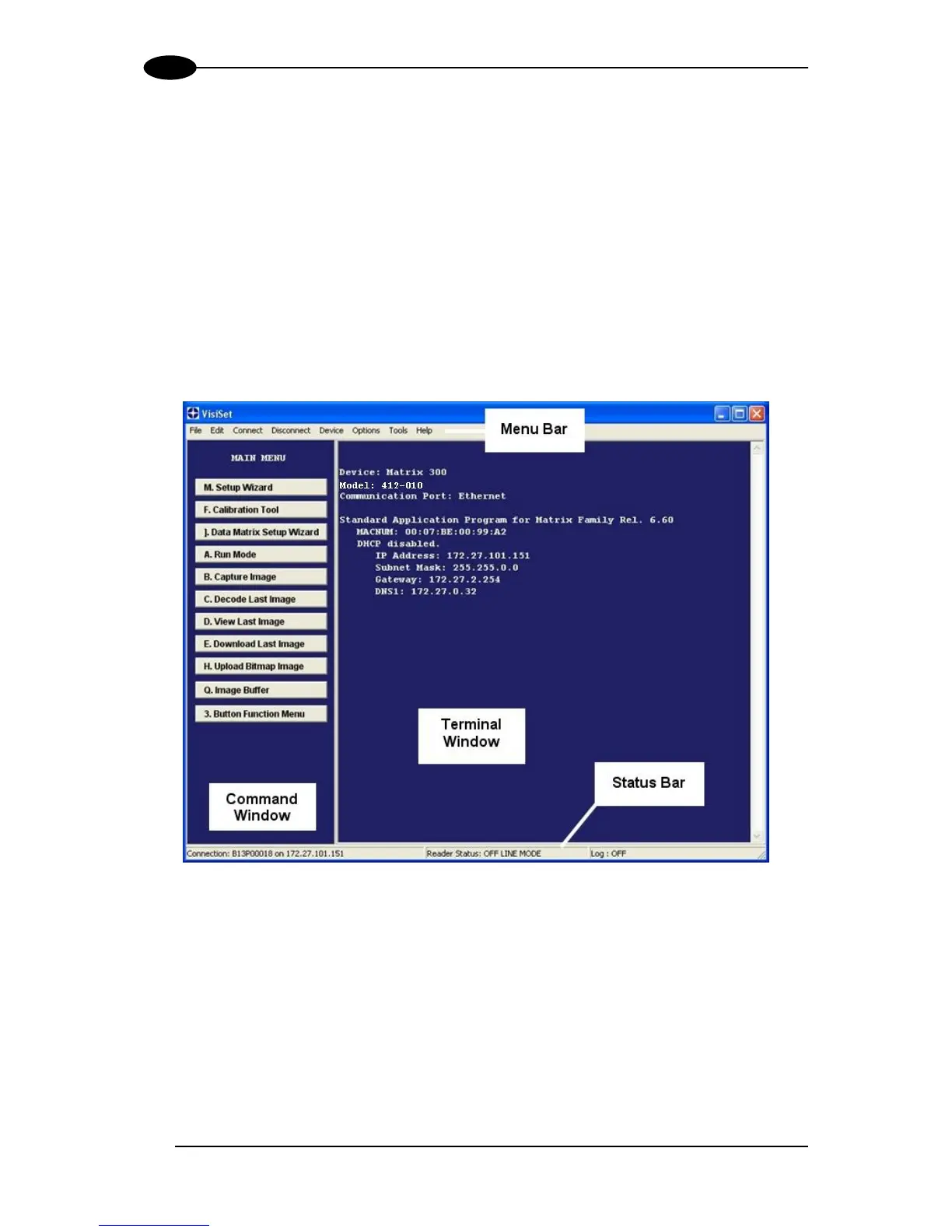

Figure 75 - Main Window

Datalogic Matrix 300 Specifications

General

Operating Temperature	0 °C to 45 °C
Resolution	8 mils (1D codes); 10 mils (2D codes)
Reading Distance	30-300 mm
Interface	RS-232
Connectivity	Ethernet, Serial
Power Supply	10 to 30 VDC
Dimensions	2.5 x 1.1 x 1.7 in
Weight	2.5 oz
Storage Temperature	-20°C to 60°C
Barcode Symbologies	Code 39, Code 128, UPC/EAN, Interleaved 2 of 5
