Datalogic Matrix 300

READING FEATURES
97
6
6.4.2 2D (Bi-dimensional) Codes
Data Matrix 0.13 mm (5 mils)
CONDITIONS:
Hardware Settings
Code Symbology
Data Matrix ECC 200
Code Resolution
0.13 mm (5 mils)
Tilt Angle
45°
Skew Angle
20°
Software Parameters
Reading Distance (mm)
75
83
92
412-xxx RED Wide
Exposure Time (µs)
60
80
100
Gain
15
12
10
Illuminator Lighting Mode
Very High Power Strobed
472-xxx LT-DPM
Exposure Time (µs)
175
235
290
Gain
15
12
10
Illuminator Lighting Mode
Very High Power Strobed
482-xxx MLT-DPM
Exposure Time (µs)
90
120
150
Gain
15
12
10
Illuminator Lighting Mode
Very High Power Strobed

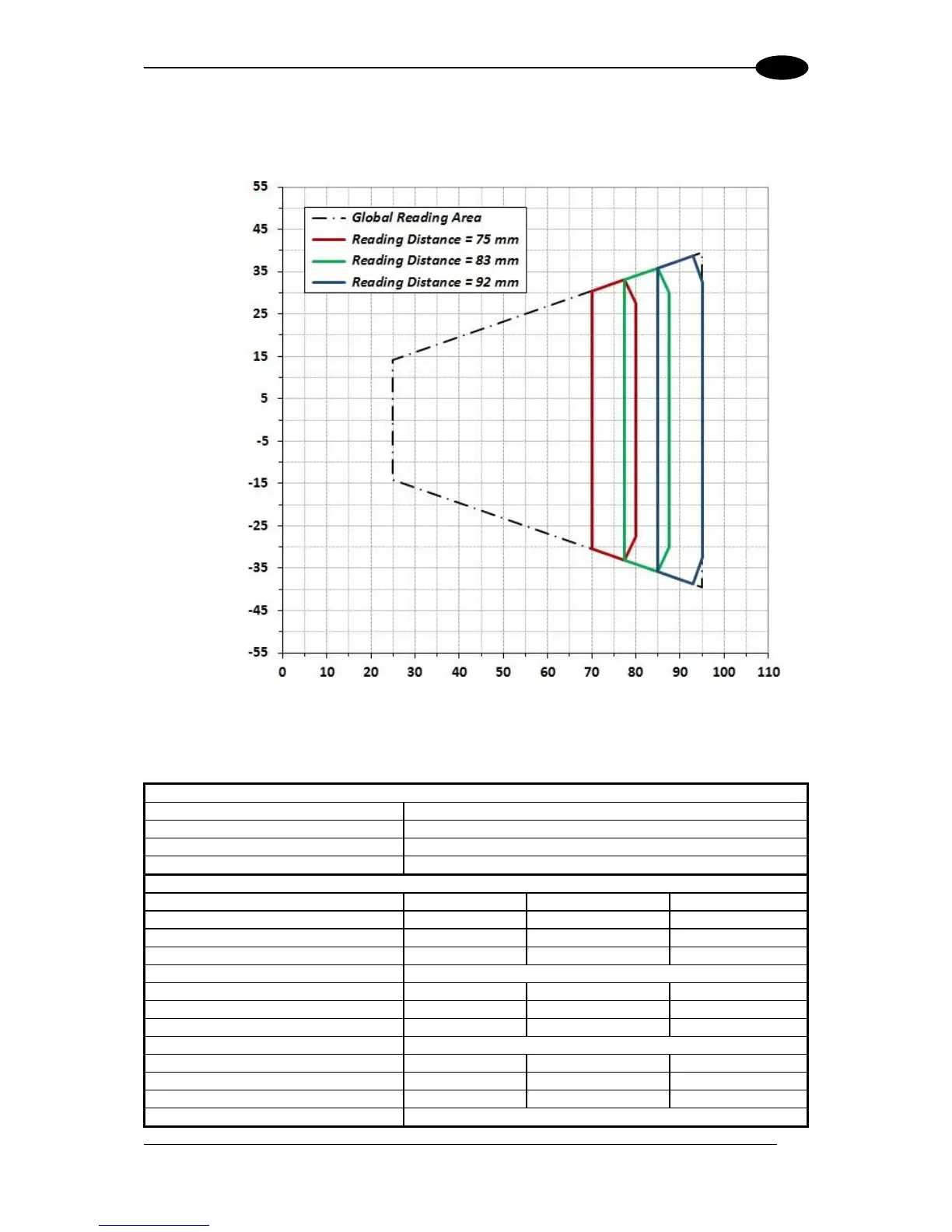

Reading Distance
Horizontal Reading Width
mm
in
0 0.5 1 1.5 2 2.5 3 3.5 4
0
0.5
1.5
2
-0.5
-1.5
-2
1
-1
