RAPID CONFIGURATION
3
1
STEP 2 MOUNT AND POSITION THE READER

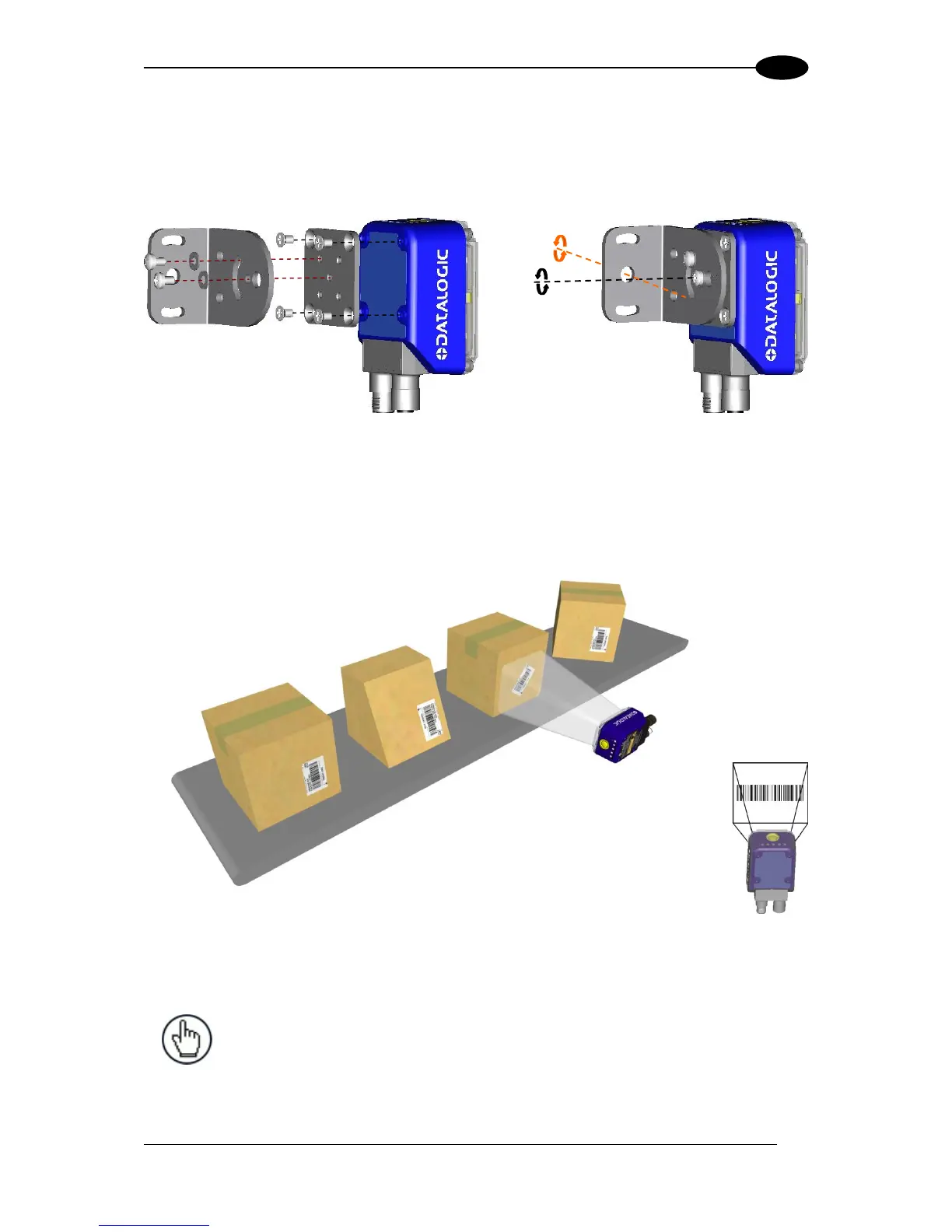

1. To mount the Matrix 300™, use the mounting brackets to obtain the most suitable
position for the reader. The most common mounting configuration is shown in the figure
below.
Figure 2 Positioning with Mounting Bracket
2. When mounting the Matrix 300™ take into consideration these three ideal label position
angles: Pitch or Skew 10° to 20° and Tilt, although the reader can read a code at any tilt
angle provided the code fits into the Field Of View (FOV).
Figure 3 Pitch, Tilt and Skew Angles
3. Refer to the reading diagrams in chp. 6 to determine the distance your reader should be
positioned at.
NOTE: Rapid Configuration of the Matrix 300™ reader can be made either
through the X-PRESS™ interface (steps 3-4) which requires no PC
connection, or by using the VisiSet™ Setup Wizard (steps 5-6). Select the
procedure according to your needs.
Tilt
Pitch
Pitch
Minimize
No Pitch, Tilt or Skew
Tilt
any angle
inside FOV
Skew
Assure at least 10°
FOV
H
FOV
V
