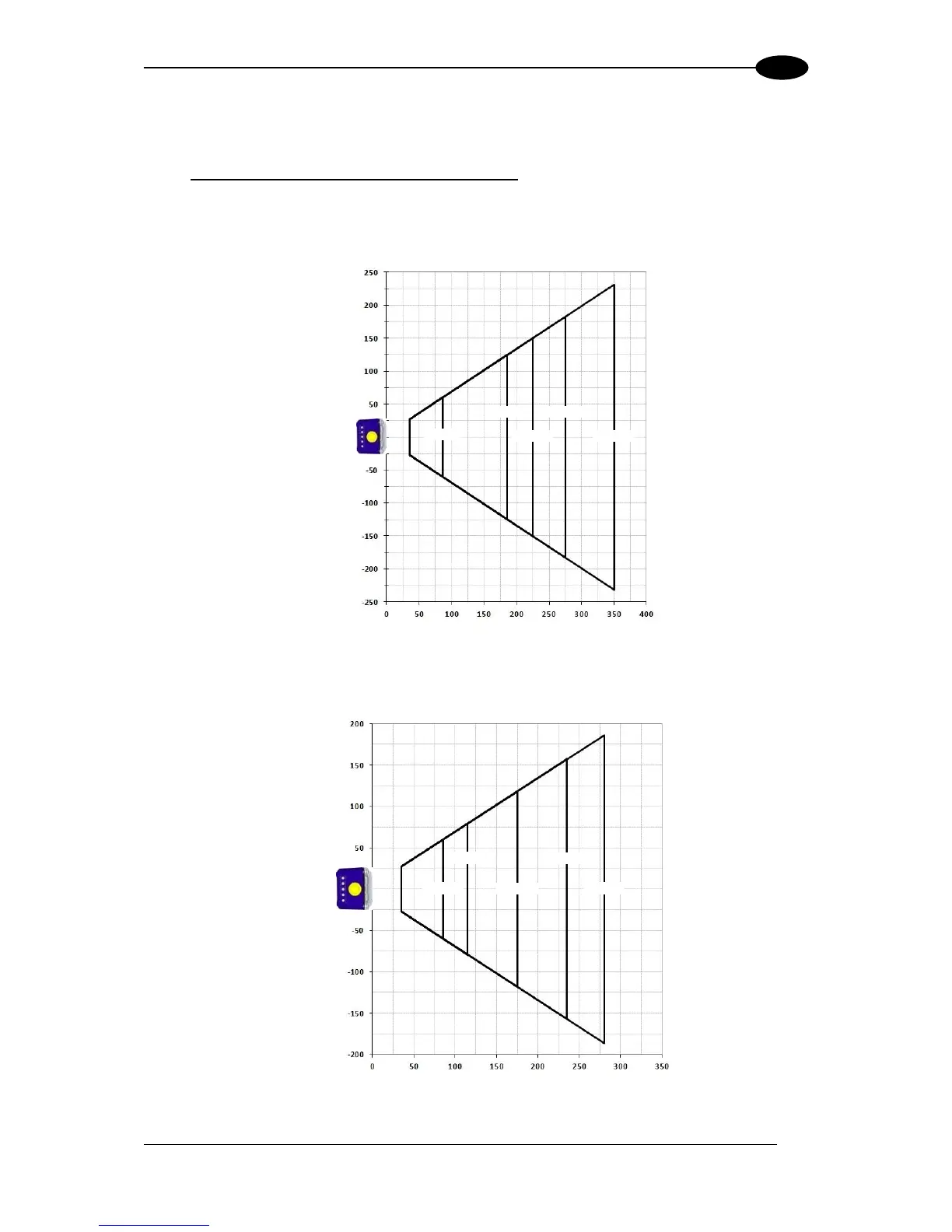

6.1.1 Global FOV Diagrams for 6 mm Manual Adjustable Focus Models
The following diagrams show the maximum obtainable Field of View for 1D and 2D codes
using Processing Mode = Advanced Code Setting. Depending on the code resolution,
symbology, and number of characters in the code, the Reading Area can be different
from the FOV. See the reference Reading Diagrams in par. 6.3 for reading area examples.
Horizontal FOV
in
0 2 4 6 8 10 12 14
0
2
4
-2
-4
6
8
-6
-8
mm
7.5 mils
10 mils
15 mils
20 mils
24 mils
2D Code FOV
Distance
Distance
1D Code FOV
Horizontal FOV
in
0 2 4 6 8 10 12 14 16
0
2
4
10
-2
-4
-10
6
8
-6
-8
mm
5 mils
10 mils
12 mils
15 mils
20 mils
