7.5.3 Calibration
VisiSet™ provides a Calibration Tool to maximize the reading performance by tuning the
acquisition parameters and the time of the delayed triggers.
By selecting the Calibration Tool from the VisiSet™ Main Menu (F), the following window
appears together with the Parameter Setup window:

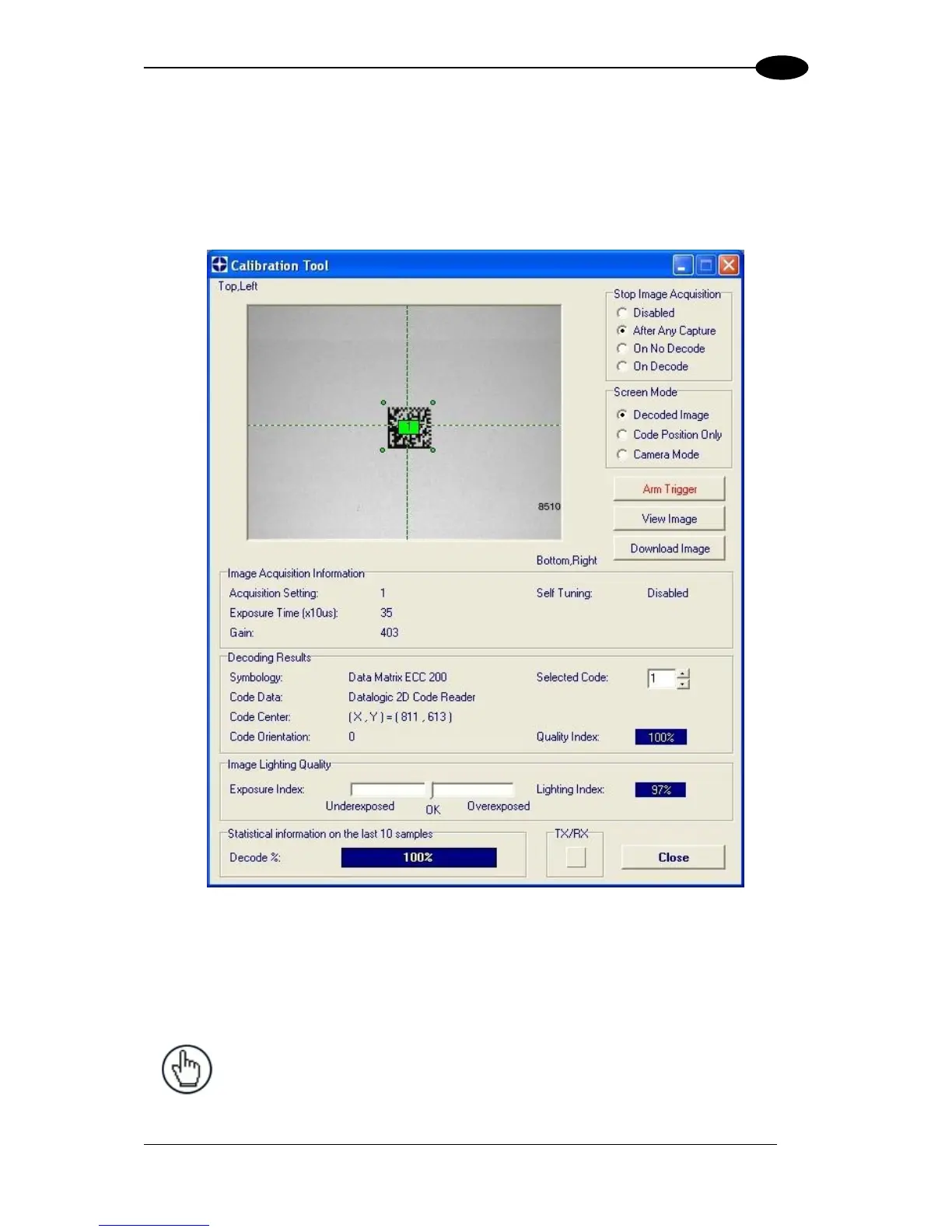

Figure 81 - Calibration OK
This tool provides a "real-time" image display while Matrix 300™ is reading. It also gives
immediate results on the performance of the installed Matrix 300™ reader.
If Self Tuning is enabled, the Calibration Tool window indicates the region where the
calibration algorithm is performed: it is within the central box delimited by four red dots.
NOTE: If using Region Of Interest windowing, some or all of the four red
dots delimiting the calibration algorithm area may be located outside the
VisiSet™ display area (not visible).
