Datalogic Matrix 300 User Manual

INTRODUCTION
23
2
Industrial Strength
 Industrial compact 2D reader
 Rugged metal construction
 Sealed circular connectors
 IP67 protection class
 50 °C max operating temperature
 Supply voltage ranges from 10 to 30 Vdc
The reader is particularly suitable for industrial environments where protection against harsh
external conditions is required.
The reader is contained in an aluminum housing; with its internal illuminator, lens and
protective cover, the mechanical dimensions are 95 x 54 x 43 mm and it weighs about 238 g.
Electrical connection of Power, Host interfaces and I/O signals is provided through an M12
(IP67) 17-pin connector (Figure A, 9). A standard M12 D-Coded (IP67) Ethernet connector is
also present (Figure A, 10).
2.2 INDICATORS AND KEYPAD BUTTON

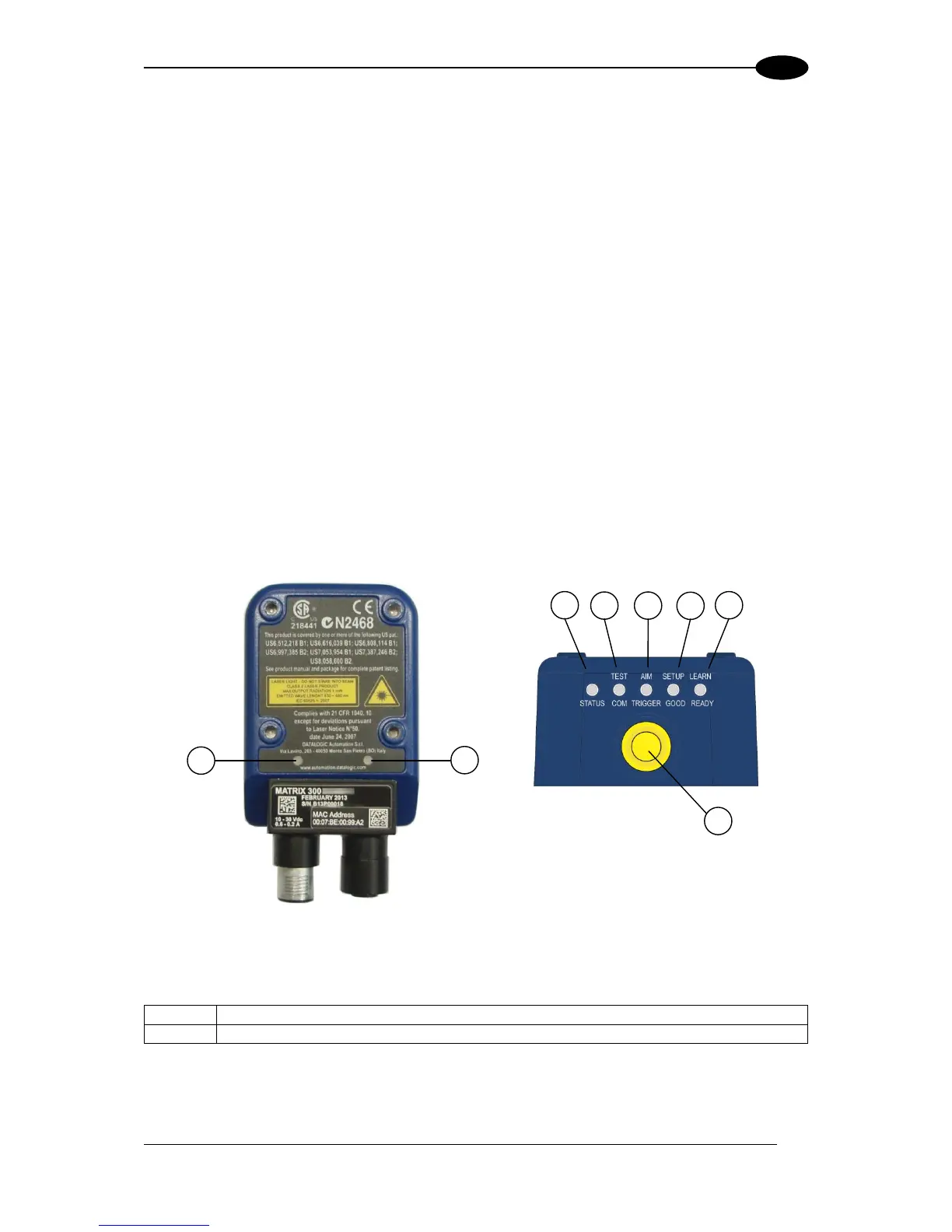

Figure 13 - Indicators
The following LED indicators are located on the reader:
PWR
blue LED indicates that the reader is connected to the power supply (Figure 13, 1)
NET
yellow LED indicates connection to the on-board Ethernet network (Figure 13, 2)
3
8
4
5
6
7
1
2
