STEP 3 – AIM AND AUTOFOCUS THE READER
(Liquid Lens Models only)
Matrix 300™ provides a built-in laser pointer aiming system to aid reader positioning. For
Liquid Lens models the autofocus feature is also incorporated into this function. The aiming
system is accessed through the X-PRESS™ Interface.
1. Power the reader on. During the reader startup (reset or restart phase), all the LEDs blink
for one second. On the reverse side of the reader near the bracket, the “POWER ON”
LED (blue) indicates the reader is correctly powered.
2. Place the Grade A Barcode Test Chart in front of the reader at the correct reading
distance for your application. See the Reading Diagrams in chapter 6 for reference.
3. Enter the Aim/Autofocus function by pressing and holding the X-PRESS™ push button
until the Aim LED is on.

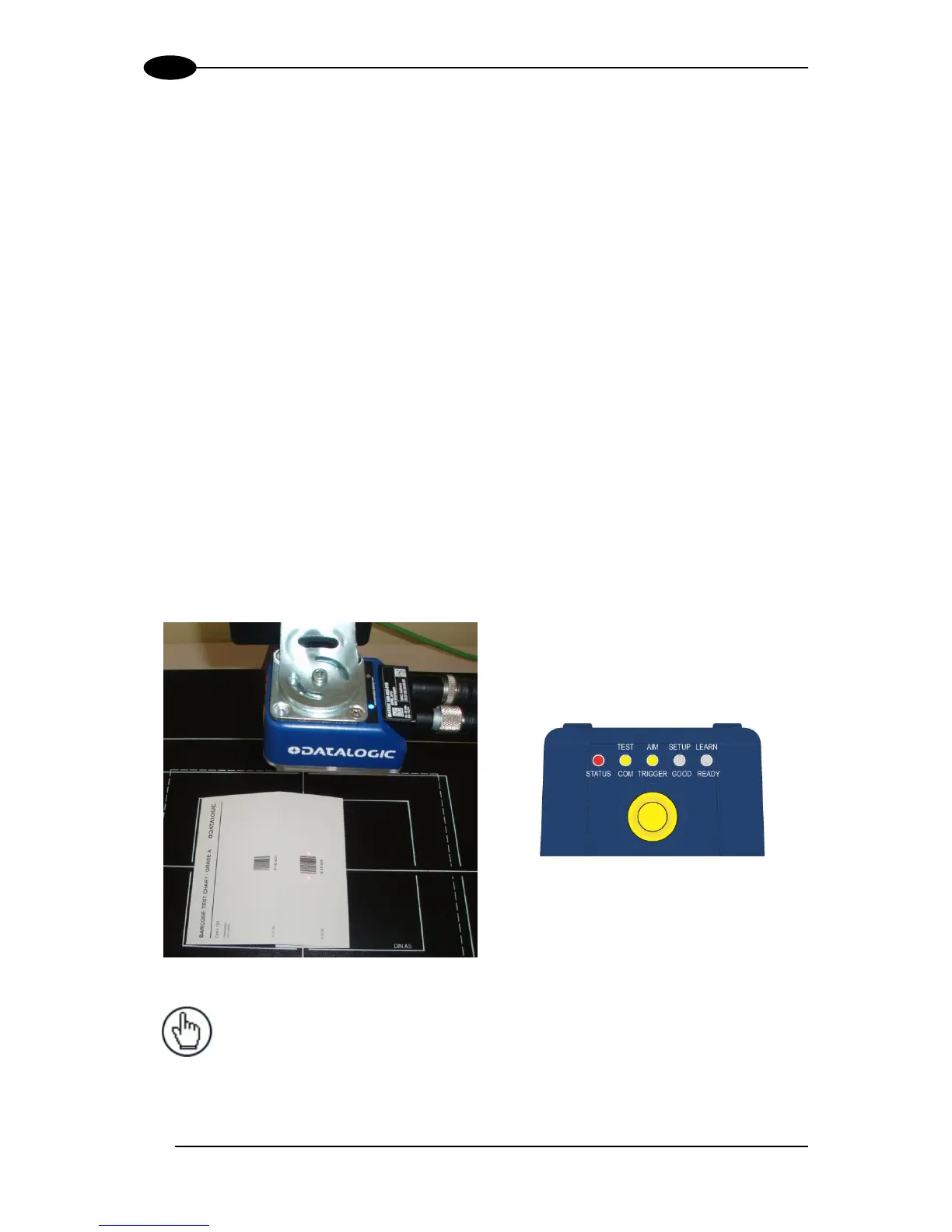

4. Release the button to enter the Aim function. The laser pointers turn on, and the
Autofocus procedure begins, see Figure 4. The Aim LED will blink until the procedure is
completed.
Within 3 seconds (before the reader flashes), center one of the larger codes on the
aiming system pointers (the code must not move during this procedure).
The Autofocus procedure ends when the Reading Distance and PPI values are
successfully saved in the reader memory, the Aim LED will stop blinking and Matrix 300™
emits 3 high pitched beeps.
If the Autofocus cannot be reached after a timeout of about 3 (three) minutes Matrix 300™
will exit without saving the parameters to memory, the Aim LED will stop blinking and in this
case Matrix 300™ emits a long low pitched beep.
