ADVANCED READER CONFIGURATION
For further details on advanced product configuration, refer to the VisiSet™ Help On-Line.
The following are alternative or advanced reader configuration methods:
Advanced Configuration Using VisiSet™
Advanced configuration can be performed through the VisiSet™ program by selecting
Device> Get Configuration From Temporary Memory to open the Parameter Setup window in
off-line mode. Advanced configuration is addressed to expert users being able to complete a
detailed reader configuration. The desired parameters can be defined in the various folders
of the Parameter Setup window and then sent to the reader memory (either Temporary or
Permanent):

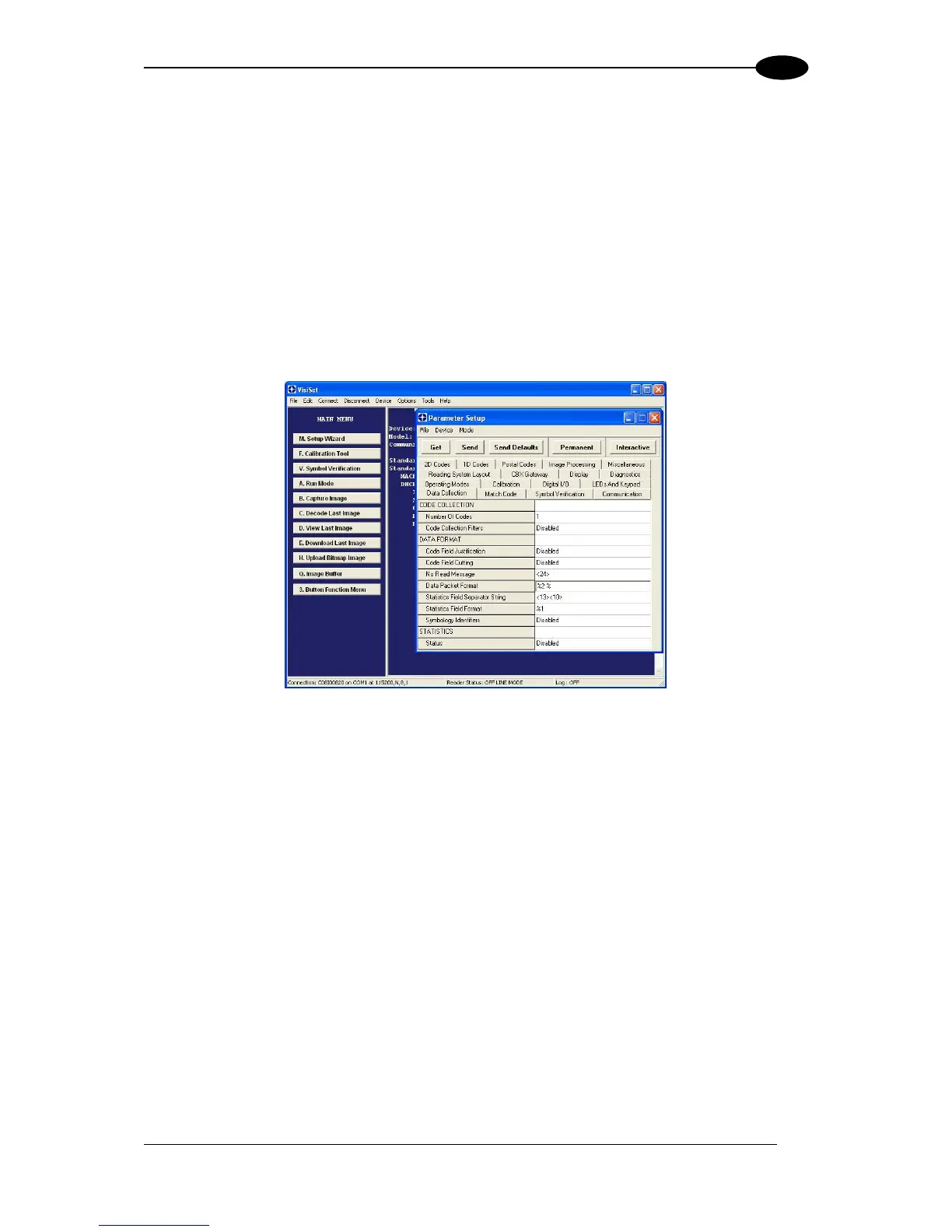

Figure 12 - VisiSet™ Parameter Setup Window
Host Mode Programming
The reader can also be configured from a host computer using the Host Mode programming
procedure, by commands via the serial interface. See the Host Mode Programming file on
the Mini-DVD.
Alternative Layouts
If you need to install an Ethernet network, ID-NET™ network, or Fieldbus network, refer to
the Matrix 300™ Reference Manual.
The reader can also be setup for alternative layouts by reading programming barcodes. See
the "Setup Procedure Using Programming Barcodes" printable from the Mini-DVD.
