Datalogic Matrix 300

ALTERNATIVE CONNECTIONS
137
A

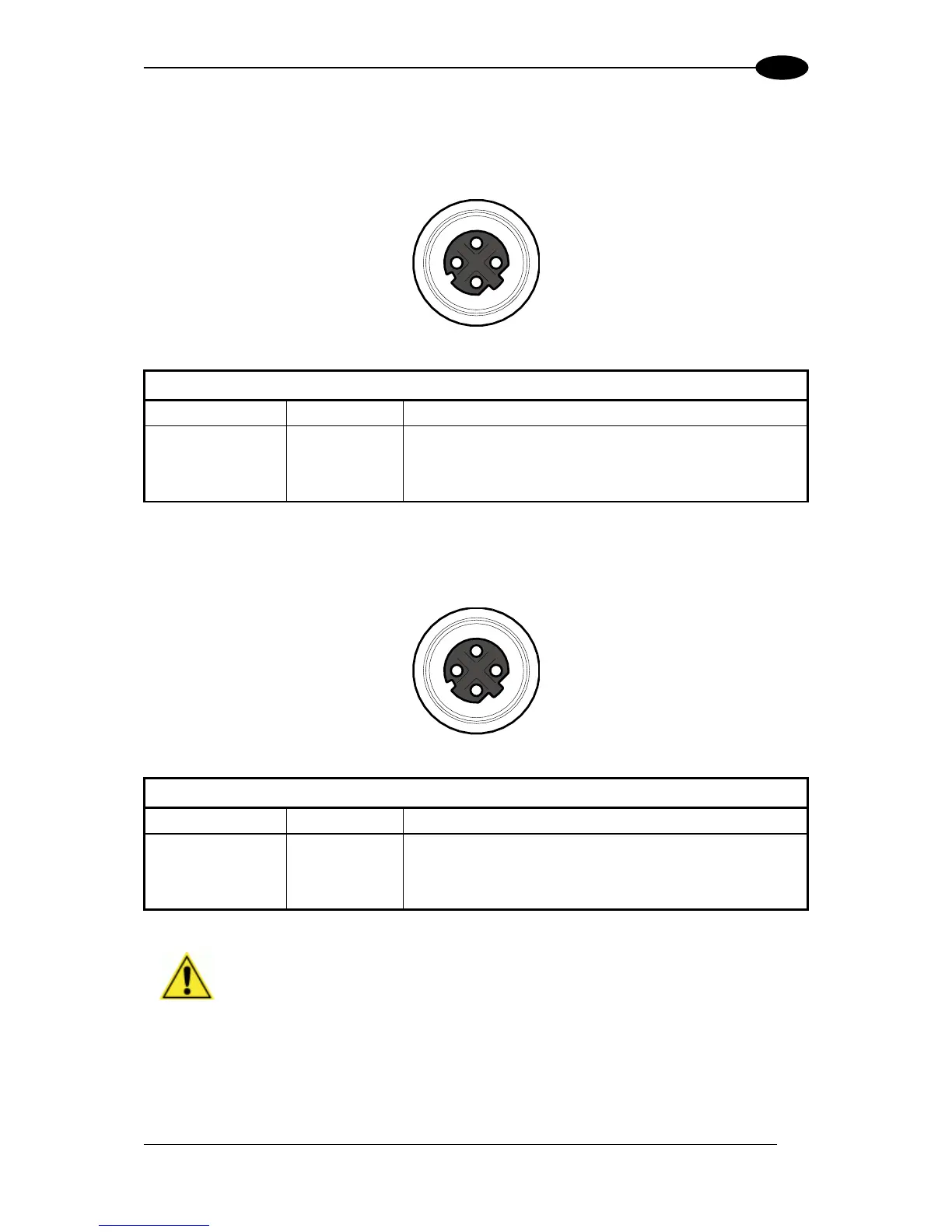

ON-BOARD ETHERNET CONNECTOR
A Standard M12 D-Coded female connector is provided for the on-board Ethernet
connection. This interface is IEEE 802.3 10 BaseT and IEEE 802.3u 100 BaseTx compliant.
Figure 89 - M12 D-Coded Female Ethernet Network Connector
On-Board Ethernet Network Connector Pinout
Pin
Name
Function
1
TX +
Transmitted data (+)
2
RX +
Received data (+)
3
TX -
Transmitted data (-)
4
RX -
Received data (-)
Power over Ethernet (PoE) Models
Figure 90 - M12 D-Coded Female Ethernet Network Connector
Power over Ethernet Network Connector Pinout
Pin
Name
Function
1
TX +/DC-
Transmitted data (+) DC power (-)
2
RX +/DC+
Received data (+) DC power (+)
3
TX -/DC-
Transmitted data (-) DC power (-)
4
RX -/DC+
Received data (-) DC power (+)
CAUTION: Matrix 300™ PoE models only accept Alternative A (power
over RJ45 pins 1, 2, 3, 6), Class 0 power levels. Use an Endspan or
Midspan PSE device that supports this configuration (i.e. PoE switch or
Power over Ethernet Adapter).
Alternative B (power over RJ45 pins 4, 5, 7, 8) using an Endspan or
Midspan PSE device is not supported.
3
4
1
2
3
4
1
2
