Datalogic Matrix 300 User Manual

ALTERNATIVE CONNECTIONS
139
A

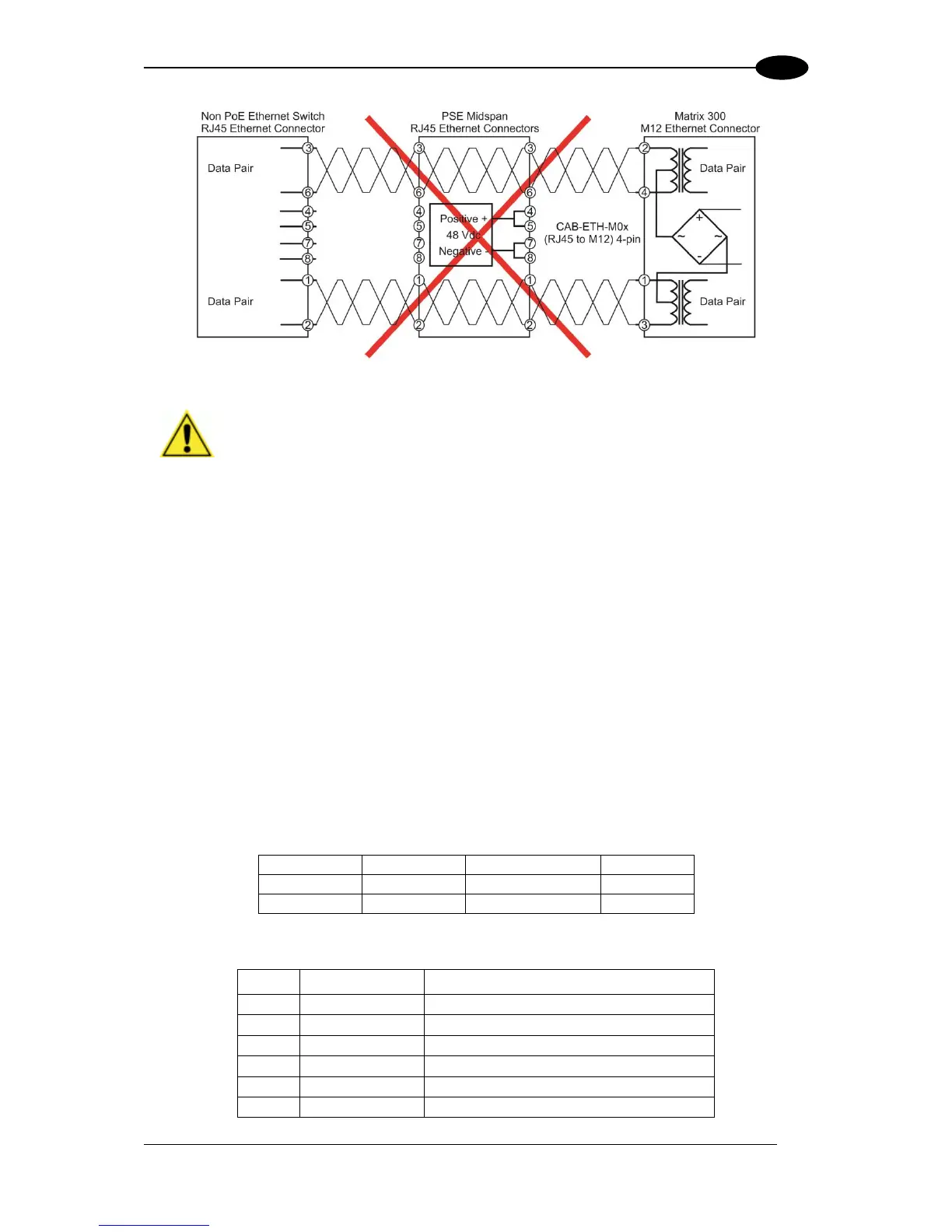

Figure 94 – Matrix 300™ PoE PSE Midspan Alternative B Connections NOT SUPPORTED
CAUTION: For Matrix 300™ PoE models, the internal Digital Output
circuitry is not powered and supply power is not available to any Input/Output
devices (Vdc=0). Only input device signals can be accepted directly on the
M12 17-pin connector without power.
For these models, if it is necessary to use Input/Output devices, we recommend
connecting them through the CBX, which must be powered separately.
ID-NET™ NETWORK TERMINATION
The network must be properly terminated by a 120 Ohm resistor at the first and last reader of
the network.
INPUTS
There are two optocoupled polarity insensitive inputs available on the M12 17-pin connector
of the reader: Input 1 (External Trigger) and Input 2, a generic input. See par. 4.5 for more
details.
The electrical features of both inputs are:
INPUT
| V
AB
| Min.
| V
AB
| Max.
I
IN
Max
.
Open
0 V
2 V
0 mA
Closed
4.5 V
30 V
10 mA
The relative pins on the M12 17-pin connector are:
Pin
Name
Function
1
Vdc
Power Supply input voltage +
6
I1A
External Trigger A (polarity insensitive)
5
I1B
External Trigger B (polarity insensitive)
13
I2A
Input 2 A (polarity insensitive)
3
I2B
Input 2 B (polarity insensitive)
2
GND
Power Supply input voltage -
