CBX ELECTRICAL CONNECTIONS
49
4
NOTE: To avoid electromagnetic interference when the reader is connected
to a CBX connection box, verify the jumper positions in the CBX as indicated
in its Installation Manual.
4.1 POWER SUPPLY
Power requirements and conditions depend on the Matrix 300™ model: Standard or PoE
(Power over Ethernet).
4.1.1 Standard Models
For these models power can be supplied to the reader through the CBX100/500 spring clamp
terminal pins as shown in Figure 30:

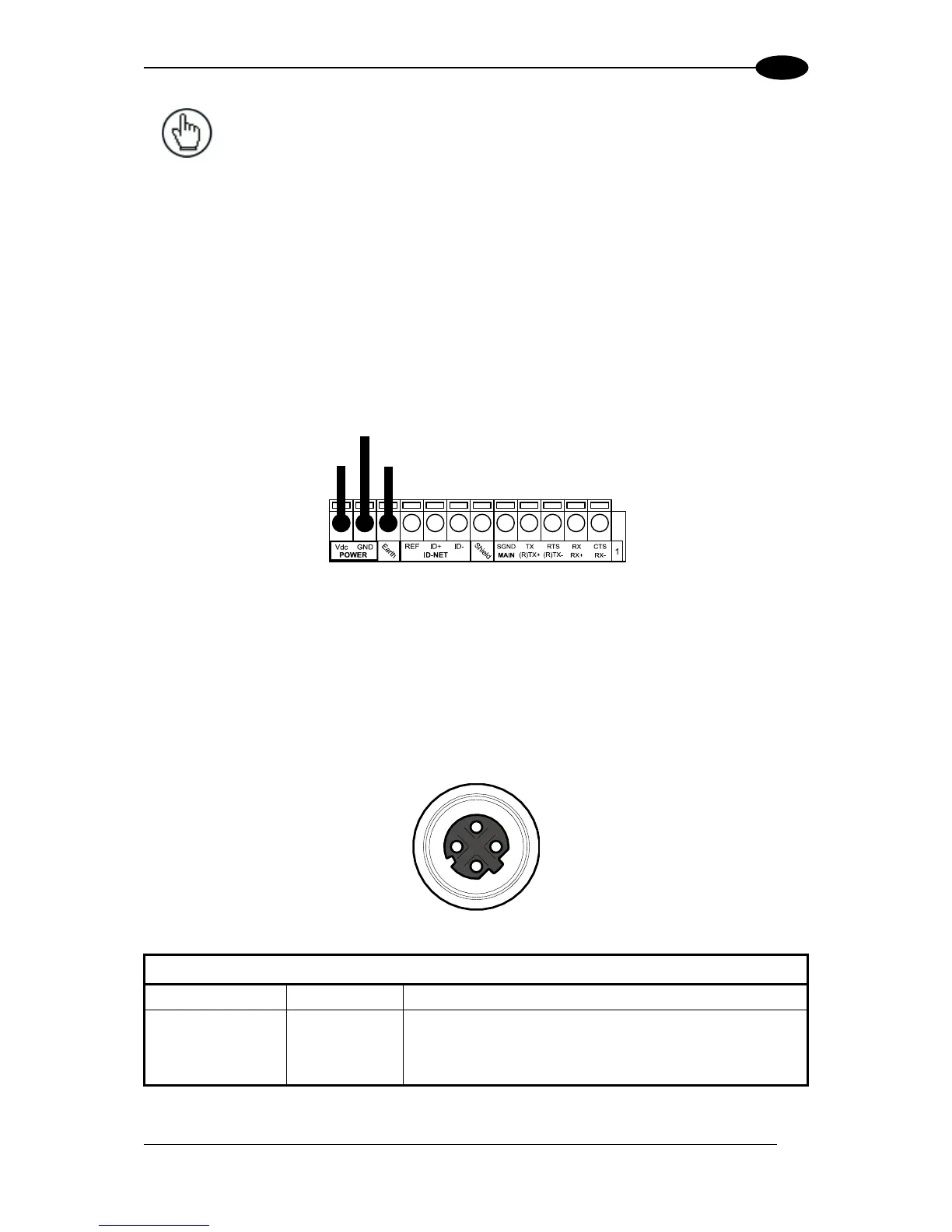

Figure 30 - Power Supply Connections
The power must be between 10 and 30 Vdc only.
It is recommended to connect the device CHASSIS to earth ground (Earth) by setting the
appropriate jumper in the CBX connection box. See the CBX Installation Manual for details.
4.1.2 Power over Ethernet (PoE) Models
The Ethernet pinout is as follows:
Figure 31 - M12 D-Coded Female Ethernet Network Connector
Power over Ethernet Network Connector Pinout
Pin
Name
Function
1
TX +/DC-
Transmitted data (+) DC power (-)
2
RX +/DC+
Received data (+) DC power (+)
3
TX -/DC-
Transmitted data (-) DC power (-)
4
RX -/DC+
Received data (-) DC power (+)
V+
in
Earth
Ground
Power Supply
VGND
3
4
1
2
