MATRIX 300™ REFERENCE MANUAL
78
5
5.5 ETHERNET CONNECTION
The Ethernet connection is possible in two different layouts. In both layouts, before
proceeding with the connection, it is necessary to configure the reader Ethernet parameters
via VisiSet™. For further details, see the Ethernet Folder in the VisiSet™ Help On Line.
In a Point-to-Point layout the reader is connected to a local host by using a CAB-ETH-M0x
cable. There is no need to use a crossover adapter since Matrix 300™ incorporates an
autocross function.

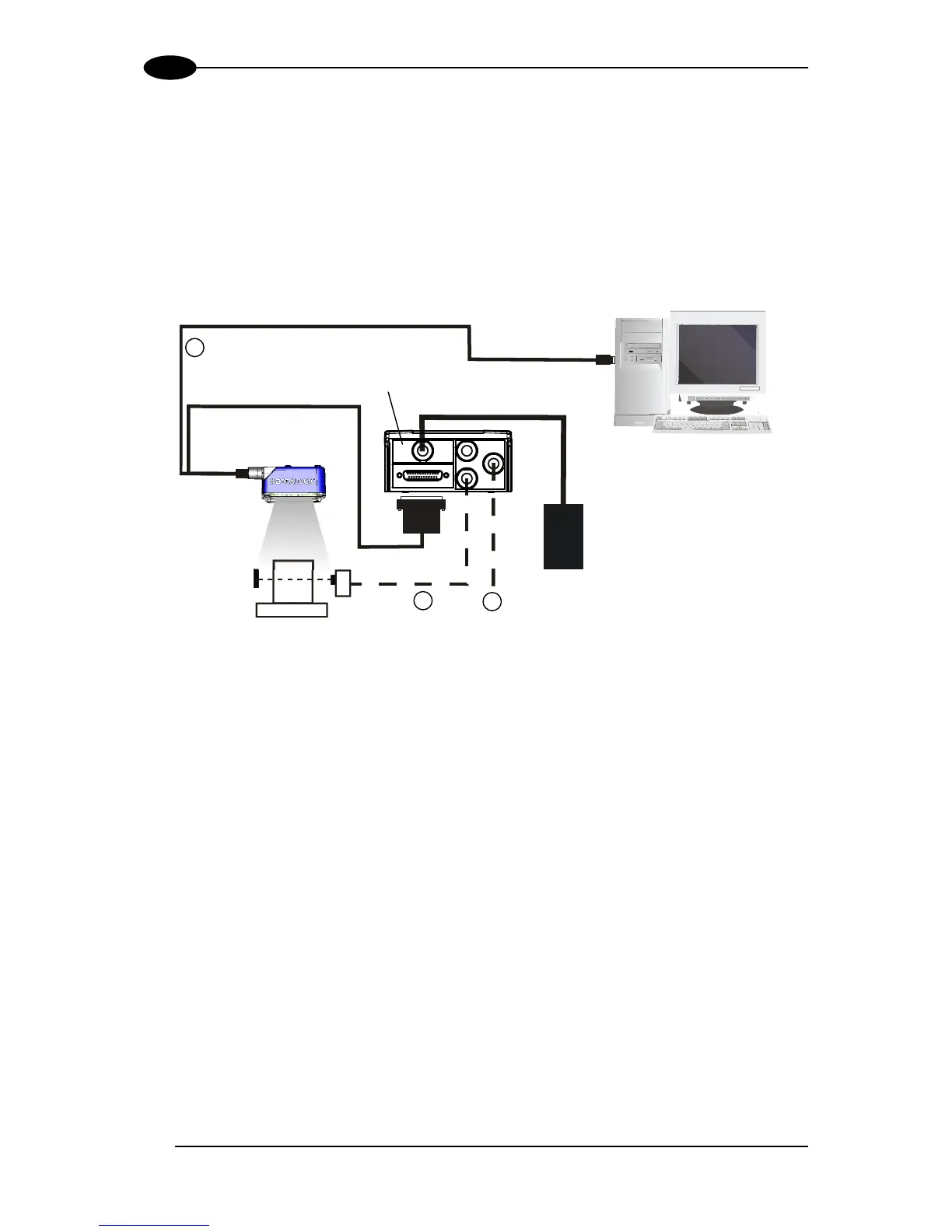

Figure 71 - Ethernet Point-to-Point Layout
CBX
Host
Matrix 300™
CAB-DSxx
CAB-ETH-M0x
PG6000
1
2
 Ethernet Interface
 Auxiliary Serial Interface (Local Echo) (RS232)
 External Trigger (for One Shot or Phase Mode)
3
