Datalogic Matrix 300

MATRIX 300™ REFERENCE MANUAL
138
A

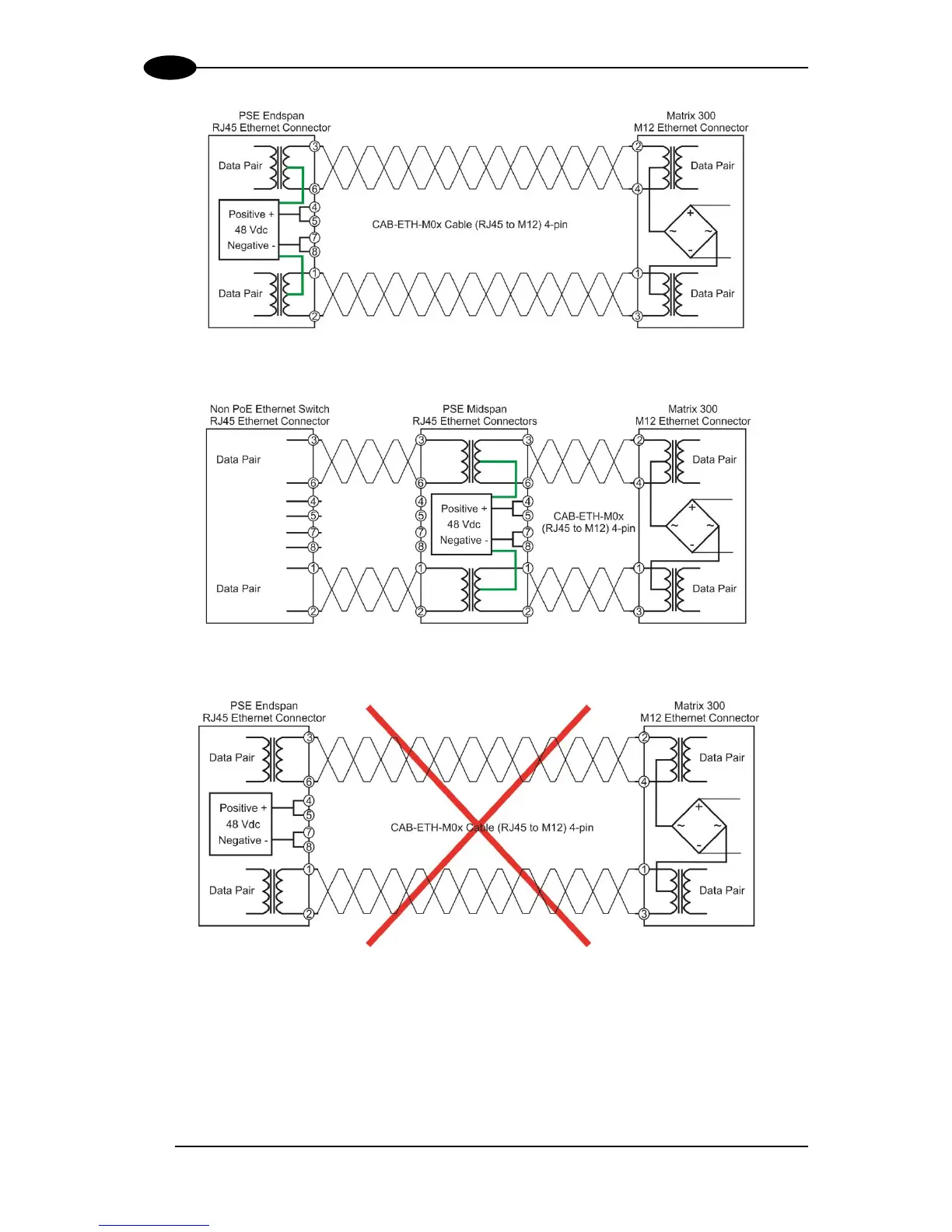

Figure 91 – Matrix 300™ PoE PSE Endspan Alternative A Connections OK
Figure 92 – Matrix 300™ PoE PSE Midspan Alternative A Connections OK
Figure 93 – Matrix 300™ PoE PSE Endspan Alternative B Connections NOT SUPPORTED
