Datalogic Matrix 300

MATRIX 300™ REFERENCE MANUAL
100
6
Data Matrix 0.38 mm (15 mils)
CONDITIONS:
Hardware Settings
Code Symbology
Data Matrix ECC 200
Code Resolution
0.38 mm (15 mils)
Tilt Angle
45°
Skew Angle
15°
Software Parameters
Reading Distance (mm)
130
195
300
412-xxx RED Wide
Exposure Time (µs)
250
250
380
Gain
8
17
22
Illuminator Lighting Mode
Very High Power Strobed
Reading Distance
mm
in
0 1 2 3 4 5 6 7 8 9 10 11 12 13
0
2
4
5
-2
-4
-5
1
-1
-3
3

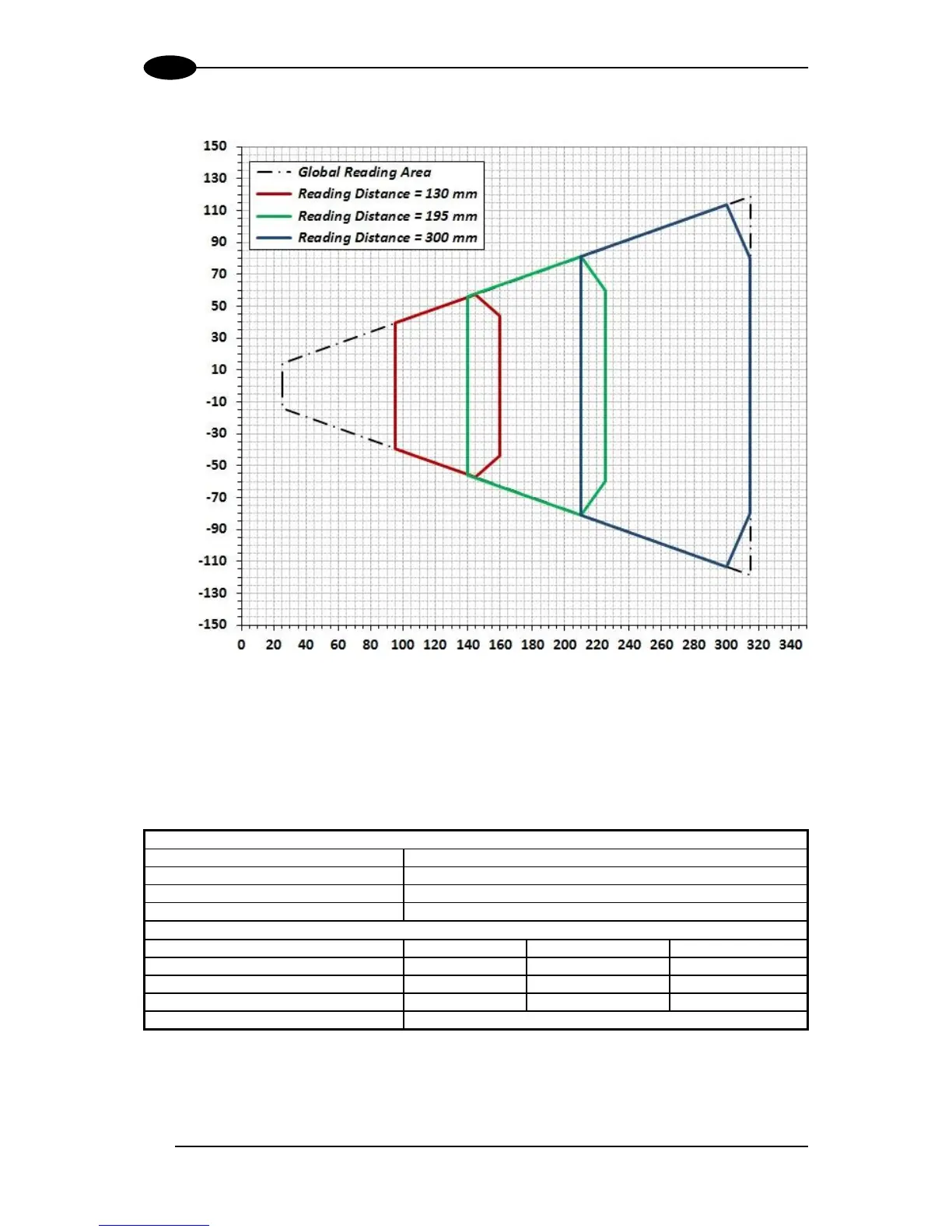

Horizontal Reading Width
