MATRIX 300™ REFERENCE MANUAL
66
4
Output 3 is not opto-isolated but can be assigned to the same events. By default it is not
assigned to any event. The CBX500 must be used to connect this output.

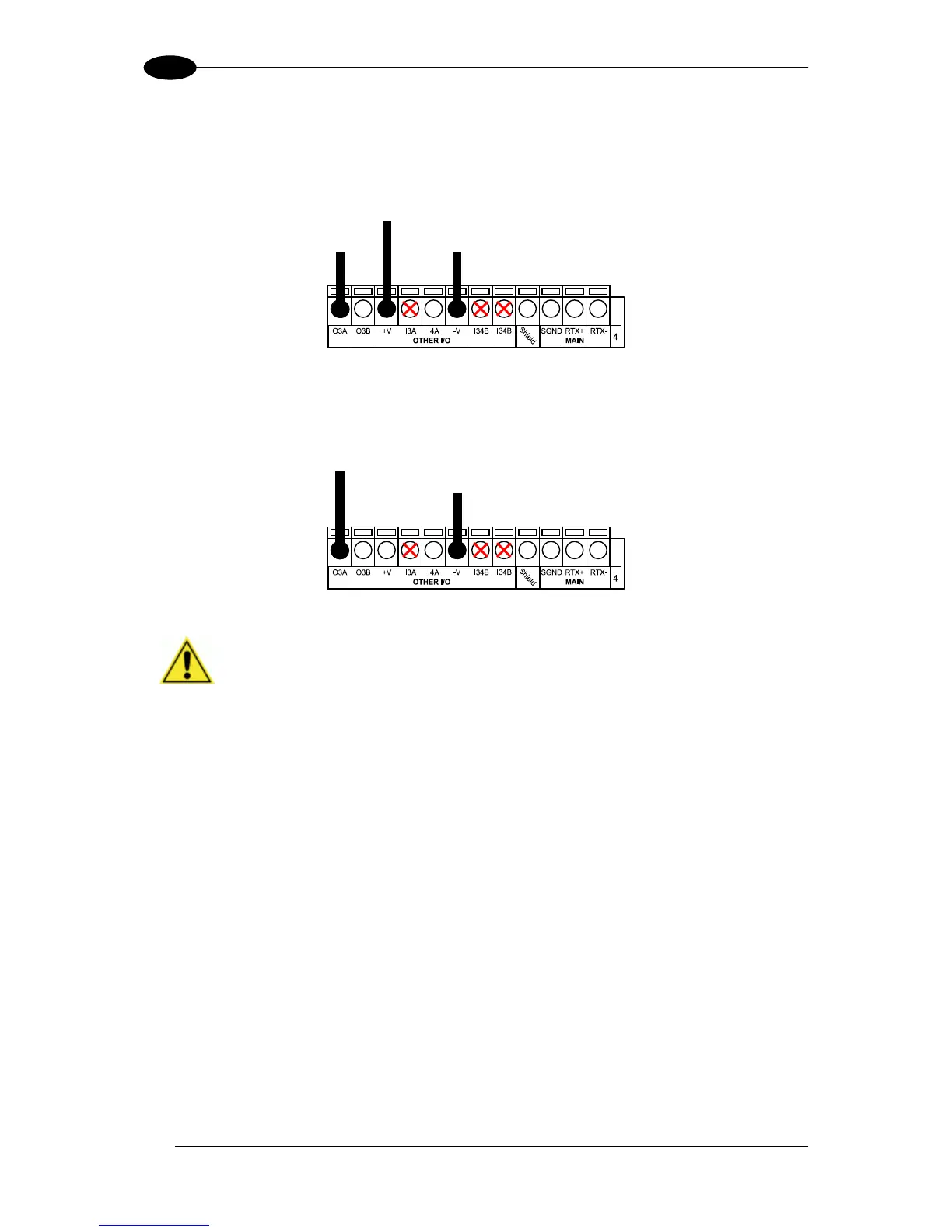

OUTPUT 3 CONNECTIONS USING MATRIX 300™ POWER (CBX500 Only)
Figure 57 - Output 3 Using Matrix 300™ Power
OUTPUT 3 CONNECTIONS USING EXTERNAL POWER (CBX500 Only)
Figure 58 - Output 3 Using External Power
CAUTION: Do not connect to I3A or I34B signals, they are reserved.
Output
Signal
External Device
Ground Reference
Power to
Output Device
Output Output Device
Signal Reference
Output Device
