MATRIX 300™ REFERENCE MANUAL
76
5
Alternatively, the Master reader can communicate to the Host as a Slave node on a Fieldbus
network. This requires using an accessory Fieldbus interface board installed inside the
CBX500 connection box.
System configuration can be accomplished through the Auxiliary interface of each individual
reader (internal CBX500 9-pin connector) using the VisiSet™ configuration program or Host
Mode programming. See par. 2.3.1 for details.

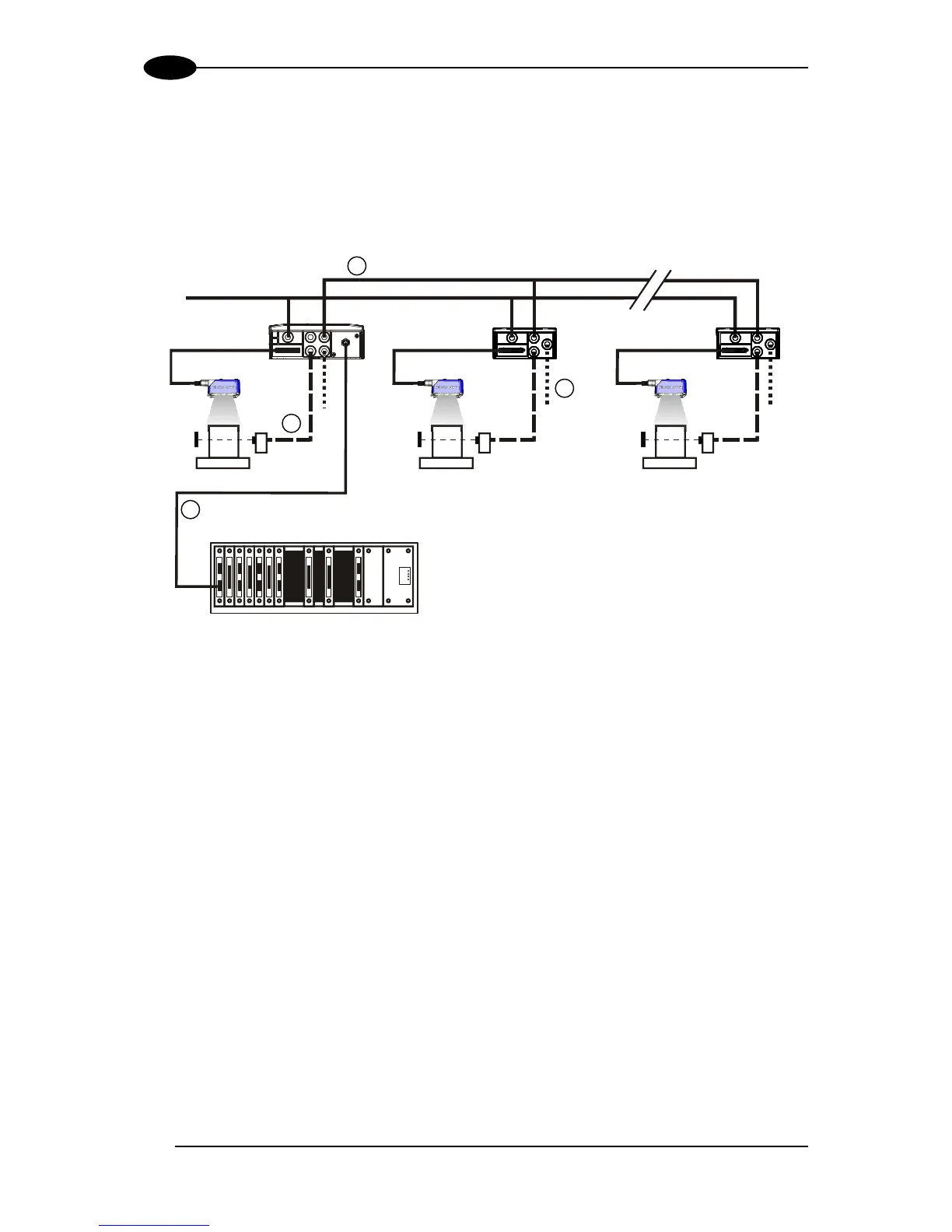

Figure 69 – ID-NET™ Fieldbus M/S Multidata
Terminal
 Fieldbus Interface
 Auxiliary Serial Interface (Local Echo) (RS232)
 External Trigger (for One Shot or Phase Mode)
 ID-NET™ (up to 32 devices, max network extension of 1000 m)
Host
1
4
3
2
Master
Slave#1
Slave#n
Power
