Codabar Set Length 1
This feature specifies one of the bar code lengths for Codabar Length Control on page 147Cod-
abar Length Control on page 147. Length 1 is the minimum label length if in Variable Length on
page 243 Mode, or the first fixed length if in Fixed Length on page 243 Mode. Length includes
the bar code’s start, stop, check and data characters. Th
e l
ength must include at least one data
character. The length can be set from 3 to 50 characters.
Table 13 provides some examples for setting Length 1. See page 243 for detailed instructions
on setting this feature.

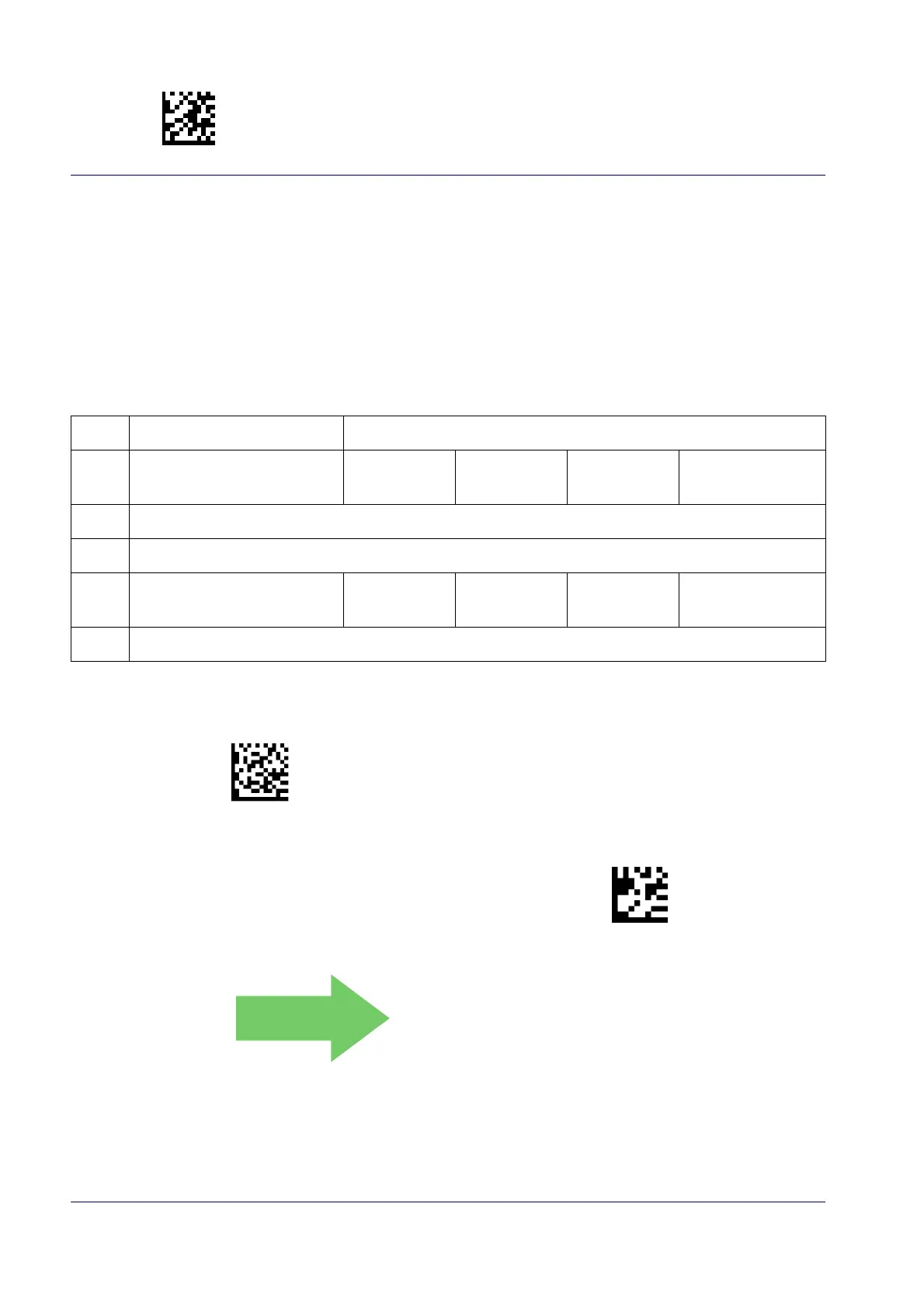

Table 13. Codabar Length 1 Setting Examples
STEP ACTION EXAMPLES
1
Desired Setting (and pad
with leading ze
roes)
03 Characters 09 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT CODABAR LENGTH 1 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘3’ ‘0’ and ‘9’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
$CCBL1
Select Codabar Length 1 Setting
Make a mistake? Scan the CANCEL bar code to abort and
not save the entry string. You can then start again at the
beginning.
~
CANCEL
DEFAULT
03 = Length 1 is 3 Characters
